(05.100.03[01]) - FILTERS, DX21

Запчасти Case IH DX21 (05.100.03[01]) - FILTERS, DX21 (00) - GENERAL

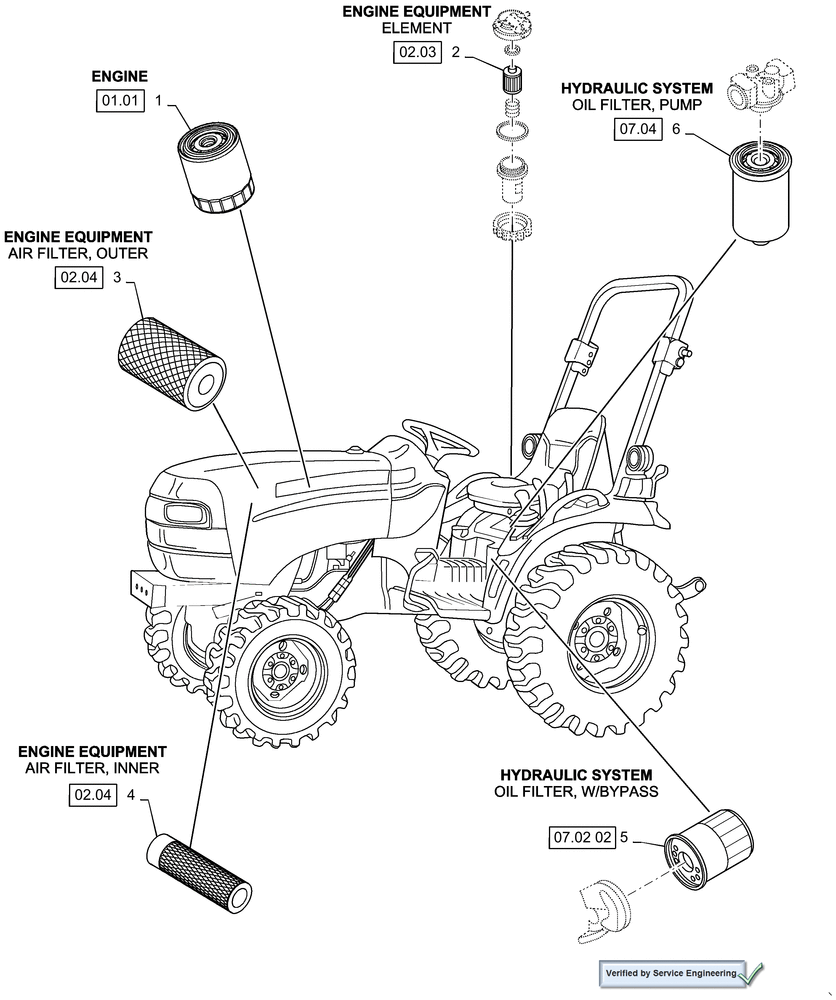

Схема запчастей Case IH DX21 - (05.100.03[01]) - FILTERS, DX21 (00) - GENERAL
2
6
01.01
4
07.02 02
02.04
1
07.04
02.04
02.03
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87409203

ENGINE OIL FILTER

Spin-On

1шт.

2

87300040

FUEL FILTER

Kit 47720060 Contains This Filter and One Each of SBA052100100 And SBA052100400

1шт.

3

SBA314531174

AIR FILTER

Outer

1шт.

4

SBA314531175

AIR FILTER

Inner

1шт.

5

SBA340501030

FILTER

W/Bypass, Hydraulic, Spin-On, For Cold Weather Operation

1шт.

5

SBA340500980

HYDRAULIC OIL FILTER

W/Bypass, Spin-On

1шт.

6

87300044

HYDRAULIC OIL FILTER

Pump, Spin-On

1шт.
