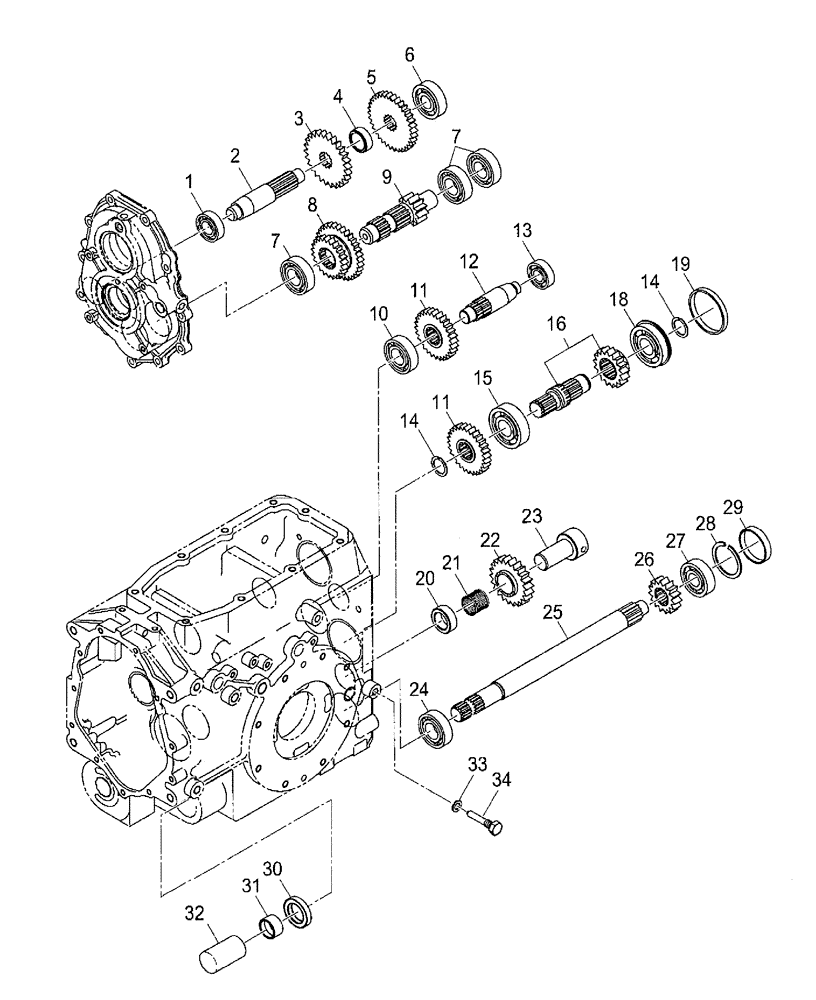

Запчасти Case IH DX18E (03.07) - MID PTO GEARS 4WD, W/ HST (03) - TRANSMISSION

1

SBA040106004

BALL BEARING

1шт.

2

SBA322531900

SHAFT

1шт.

3

SBA322326580

GEAR

Fixing

1шт.

4

SBA399233780

SPACER

1шт.

5

SBA322326590

GEAR

1шт.

6

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

7

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

3шт.

8

SBA322361430

GEAR

Slide

1шт.

9

SBA322531890

SHAFT

1шт.

10

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

11

SBA322326611

GEAR

Fixing A

2шт.

12

SBA322514291

DRIVE SHAFT

1шт.

13

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

14

370002

CIRCLIP,M25, External

2шт.

15

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

1шт.

16

SBA322531950

COUNTERSHAFT

1шт.

18

SBA040156305

BEARING ASSY

1шт.

19

SBA399235860

SEALING RING COLLAR

1шт.

20

SBA399235850

SEALING RING COLLAR

1шт.

21

SBA042209024

NEEDLE

Bearing

1шт.

22

SBA322372230

GEAR

Counter A

1шт.

23

SBA322560560

PTO SHAFT

1шт.

24

SBA040106205

RING

Bearing, Ball

1шт.

25

SBA322590961

PTO SHAFT

Front

1шт.

26

SBA322326630

GEAR

Fixing

1шт.

27

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

28

33915

SNAP RING,2.062", Int, #206

1шт.

29

SBA322140640

PLUG

ID= 1.766" x OD=2.06" x 0.398" thick

1шт.

30

SBA050202230

SEAL

Oil

1шт.

31

SBA511380070

SLEEVE

1шт.

32

SBA398115500

CAP COVER

1шт.

33

SBA025100010

SEALING WASHER,9.2mm ID x 17mm OD x 1.8mm Thk

M10

1шт.

34

SBA399430190

BOLT

M10

1шт.
