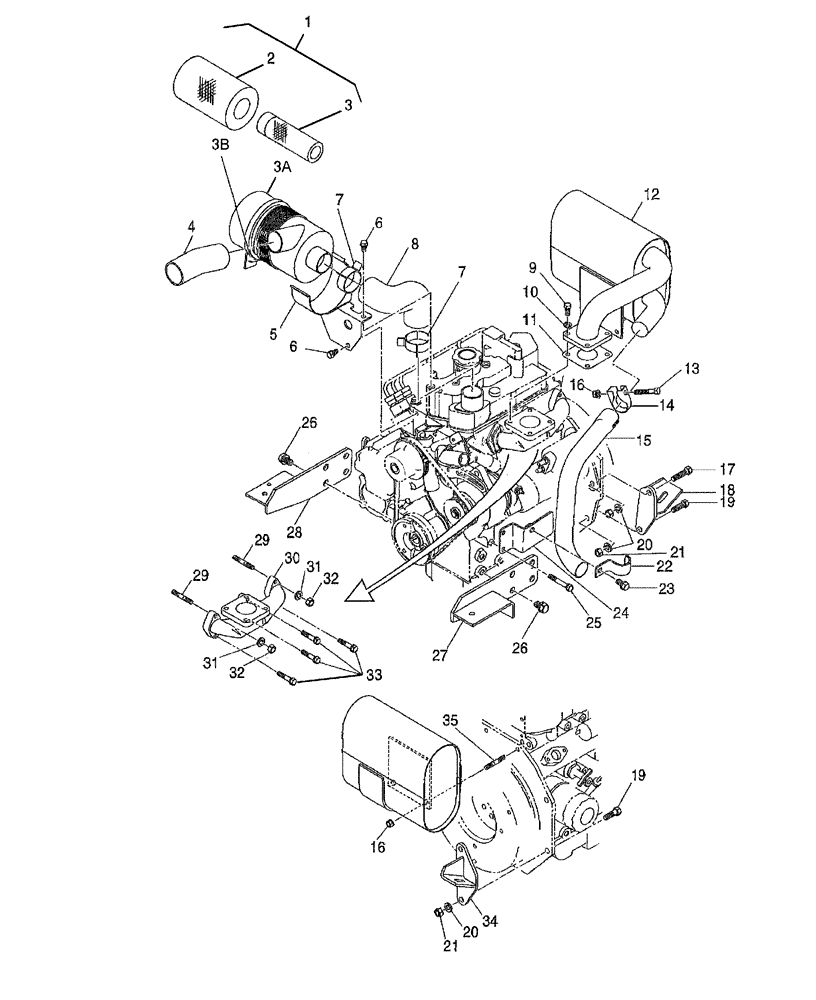

Запчасти Case IH DX18E (02.03) - AIR CLEANER & MUFFLER (02) - ENGINE EQUIPMENT

1

SBA314500820

AIR CLEANER

Includes: Ref. 2-3B

1шт.

2

SBA314531174

AIR FILTER

Outer

1шт.

3

SBA314531175

AIR FILTER

Inner

1шт.

3a

SBA314531170

CAP ASSY.

1шт.

3b

SBA314531173

CONTROL VALVE

1шт.

4

SBA314541601

HOSE

Air Cleaner

1шт.

5

SBA314601730

SUPPORT

1шт.

6

SBA011510816

BOLT

M8 x 16

2шт.

7

SBA067100056

CLAMP

2шт.

8

SBA314541720

HOSE

Air Cleaner

1шт.

9

SBA010109337

BOLT

4шт.

10

SBA027100008

WASHER

M8

4шт.

11

SBA314990013

GASKET

1шт.

12

SBA314102520

MUFFLER

1шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

14

SBA408330011

CLAMP

1шт.

15

SBA314110471

MUFFLER

1шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

17

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

18

SBA310600830

SUPPORT

Engine

1шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

20

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

21

100016

NUT,M10 x 1.5, Cl 8

4шт.

22

SBA399112120

CLAMP

1шт.

23

SBA010800816

BOLT

M8 x 16

1шт.

24

SBA314400581

SUPPORT

Muffler

1шт.

25

SBA011510855

BOLT

M8 x 55

2шт.

26

SBA011611220

BOLT

M12 x 20

8шт.

27

SBA310600790

SUPPORT

Engine

1шт.

28

SBA310600810

SUPPORT

Engine

1шт.

29

SBA012110625

STUD,M6 x 25

2шт.

30

SBA135616342

MANIFOLD

1шт.

31

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

32

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

33

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

4шт.

34

SBA310600850

SUPPORT

Engine

1шт.

35

SBA012110820

STUD

2шт.
