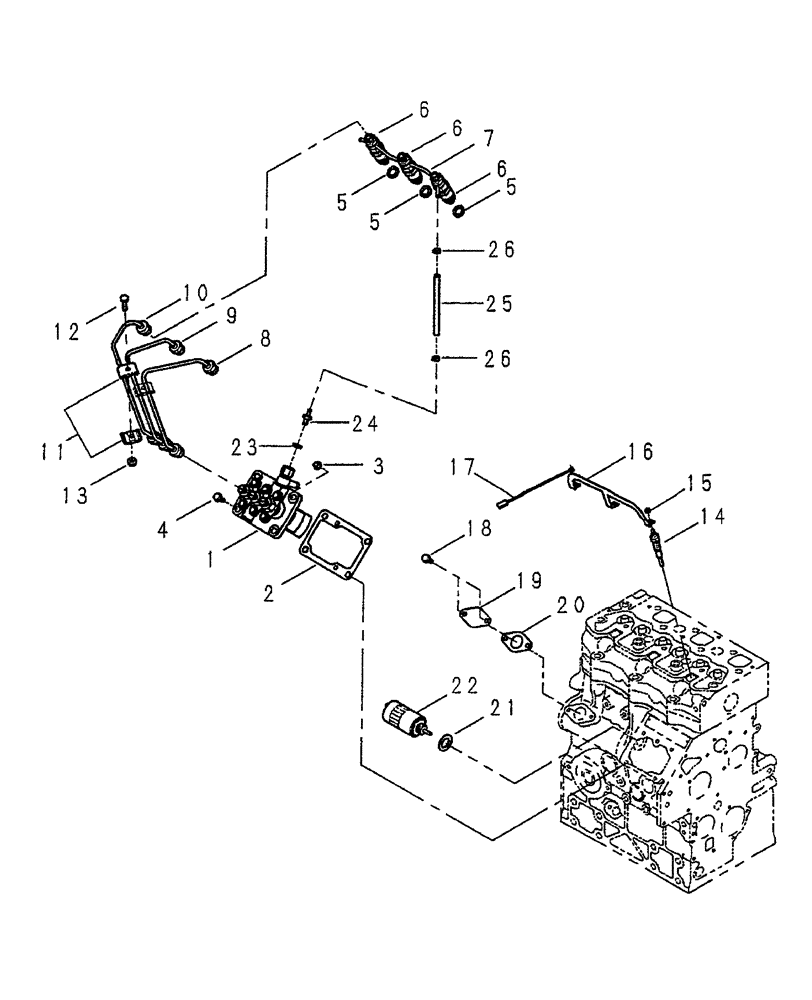

Запчасти Case IH DX18E (01.09) - INJECTION PUMP & LINES (01) - ENGINE

1

SBA131017711

FUEL INJECTION PUMP

Component Parts Not Serviced Separately

1шт.

SBA131017711R

REMAN-FUEL INJ PUMP

DX18E, PIN # HDG110000 & ABOVE (4/05-), DX22E, DX25E, BOTH (1/05-)

1шт.

SBA131017711C

CORE-FUEL INJ PUMP

Return Number

1шт.

.

SBA131437590

SHIM

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

Cap, HH, CL 8.8, M10 x 1.5 x 25

2шт.

5

SBA131426200

SEAL

3шт.

6

SBA131406340

FUEL SYSTEM INJECTOR

3шт.

SBA131406340R

REMAN-INJECT NOZZLE

DX22E, (1/05-), DX18E PIN # HDG110000 & ABOVE (4/05-)

3шт.

SBA131406340C

CORE-NOZZLE, INJECT

Return Number

1шт.

7

SBA131606920

RIGID TUBE

1шт.

8

SBA131507950

RIGID TUBE

1шт.

9

SBA131507960

TUBE

1шт.

10

SBA131507970

TUBE

1шт.

11

SBA199106020

CLAMP

4шт.

12

SBA010110625

SCREW

2шт.

13

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

14

SBA185366220

GLOW PLUG

3шт.

15

SBA023100004

NUT

M4

3шт.

16

SBA185376370

WIRE HARNESS

Glow

1шт.

17

SBA185606170

WIRE HARNESS

1шт.

18

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

CL 8.8, M6 x 1 x 16

2шт.

19

SBA165206640

COVER

1шт.

20

SBA130996130

GASKET

1шт.

21

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

1шт.

22

SBA185206083

SOLENOID

1шт.

23

SBA025100006

SEALING WASHER,5.5mm ID x 13mm OD x 1.15mm Thk

Seal

1шт.

24

SBA131246280

FITTING

1шт.

25

SBA068204090

RIGID TUBE

1шт.

26

SBA067200078

HOSE CLAMP

1шт.
