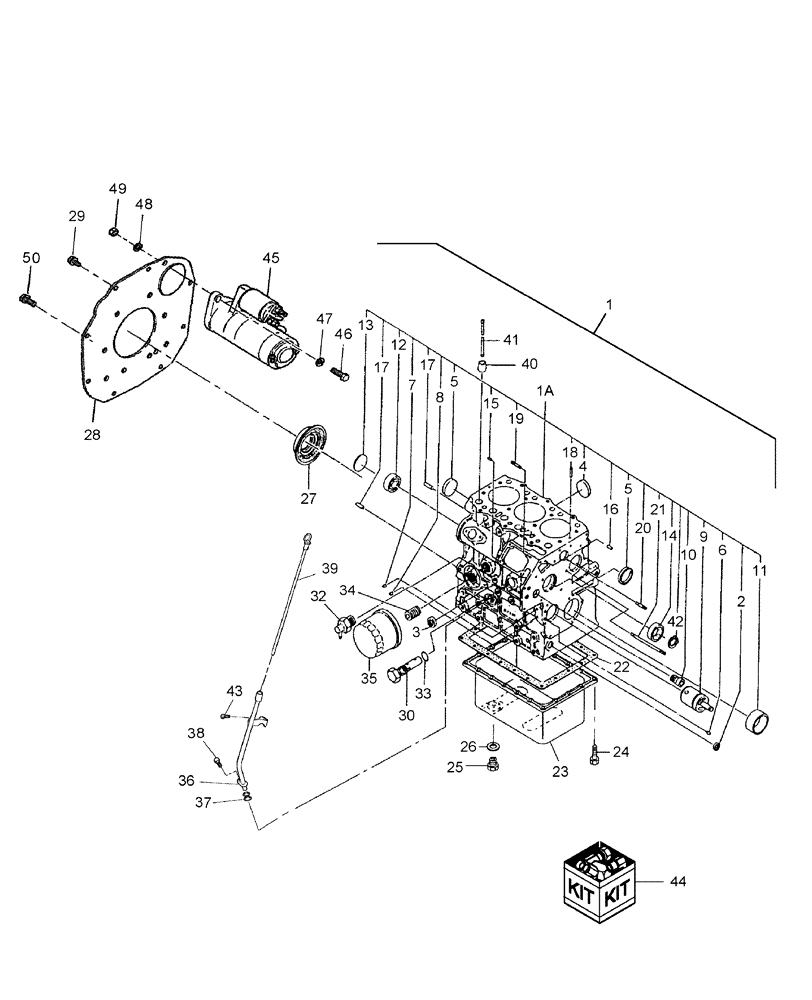

Запчасти Case IH DX18E (01.01) - CYLINDER BLOCK (01) - ENGINE

1a

SBA133556

ENGINE

DX18E

1шт.

1a

SBA133557

ENGINE

DX22E

1шт.

1a

SBA138649

ENGINE

DX25E

1шт.

1a

SBA138649ER

REMAN-REPLACEMENT EN

DX25E 3 Cyl. (1/05)

1шт.

1a

SBA138649EPAC

CORE-EPA ENGINE

Return Number

1шт.

1a

SBA138649R

REMAN-REPLACEMENT EN

DX25E 3 Cyl.(1/05-)

1шт.

1a

SBA138649C

CORE-REPLACEMENT ENG

Return Number

1шт.

2

SBA198466050

PLUG

Sealing

1шт.

3

SBA064210025

PLUG,25mm

1шт.

4

SBA064210035

SEALING ELEMENT

2шт.

5

SBA064210040

CAP

Sealing

2шт.

6

SBA064210015

CAP

Blank

1шт.

7

SBA198466030

PLUG

Blank 6.5 x 7mm

4шт.

8

SBA198466010

PLUG

Blank 8.4mm

4шт.

9

SBA165296142

GEAR

1шт.

10

SBA198517090

BUSHING

1шт.

11

SBA198517591

BUSHING

Standard

1шт.

11

SBA198517598

GUIDE BUSHING

U/S, 0.5

1шт.

11

SBA198517595

GUIDE BUSHING

U/S, 0.25

1шт.

12

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

13

SBA064100045

PLUG

Expansion

1шт.

14

SBA042303015

NEEDLE BEARING

1шт.

15

SBA030500512

PIN

Dowel

2шт.

16

SBA030500616

DOWEL,M6 x 16

2шт.

17

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

18

SBA030309005

PIN

Spring

2шт.

19

SBA010109440

BOLT

Stud

2шт.

20

SBA012100635

BOLT

Stud

1шт.

21

SBA012110660

STUD

1шт.

22

SBA110996800

GASKET

1шт.

23

SBA110708340

ENGINE OIL PAN

Oil

1шт.

24

SBA010109235

BOLT

20шт.

25

SBA010411212

DRAIN PLUG,M12 x 1.25

1шт.

26

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Sealing

2шт.

27

SBA198636080

OIL SEAL

Oil

1шт.

28

SBA110367710

PLATE

Rear

1шт.

29

SBA011511020

BOLT,M10 x 20

8шт.

30

SBA140036220

VALVE PRESSURE RELIE

1шт.

32

SBA198736270

DRAINCOCK/TAP SUPPLY

1шт.

33

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

34

SBA140546020

ADAPTER

1шт.

35

87409203

ENGINE OIL FILTER

1шт.

36

SBA110756201

GUIDE

Gauge

1шт.

37

SBA052100100

O-RING

1шт.

38

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

M8 x 16

2шт.

39

SBA198416371

DIPSTICK

Level

1шт.

40

SBA120116100

TAPPET

6шт.

41

SBA120456201

ROD

Push

6шт.

42

SBA036509005

SNAP RING

1шт.

43

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

44

86590273

HEATER

Kit, Engine Heater Coolant Includes: Heater Assy., NSS & Cord Assy., 86539137

1шт.

45

SBA185086670

STARTER MOTOR,12V, 12kW

See Figure 01.08 Stud Bolt SBA012111030 Holds Starter on Block

1шт.

45

SBA185086670R

REMAN-STARTER,12V, 12kW

Remanufactured Starter; For N.A. only

1шт.

45

SBA185086670C

CORE-STARTER,12V, 12kW

Return number - For N.A. only

1шт.

46

SBA011511040

BOLT,M10 x 40

2шт.

47

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

48

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

49

100016

NUT,M10 x 1.5, Cl 8

2шт.

50

SBA011510816

BOLT

2шт.
