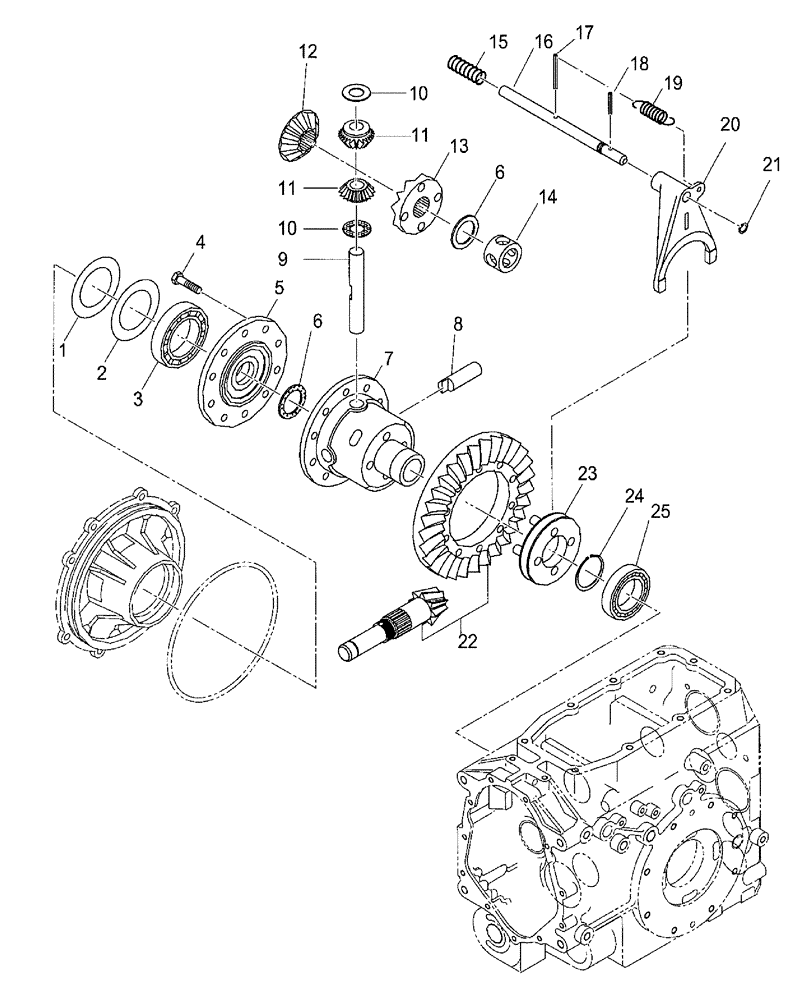

Запчасти Case IH DX18E (05.03) - DIFFERENTIAL GEARS (05) - REAR AXLE

1

SBA399281550

SHIM,0.1mm Thk

1шт.

2

SBA399281560

SHIM,0.2mm Thk

1шт.

3

SBA040106012

BALL

Bearing

1шт.

4

SBA010211035

BOLT

10шт.

5

SBA326110740

COVER

Differential Housing

1шт.

6

SBA399261300

THRUST WASHER

2шт.

7

SBA326111040

GAUGE

Differential

1шт.

8

SBA326130660

SHAFT

Pinion

2шт.

9

SBA326130650

SHAFT

1шт.

10

SBA399261740

THRUST WASHER

4шт.

11

SBA326160070

DRIVE PINION

Differential

4шт.

12

SBA326140280

GEAR

Differential, LH

1шт.

13

SBA326140330

GEAR

1шт.

14

SBA326170140

SHAFT

Hose Pinion

1шт.

15

SBA398212510

SPRING

1шт.

16

SBA326530360

SHAFT

Difflock

1шт.

17

SBA030300663

COILED PIN,M6 x 63

1шт.

18

SBA030309013

PIN

Spring, M6 x 32

1шт.

19

SBA398213170

SPRING

1шт.

20

SBA326570410

FORK

Difflock

1шт.

21

SBA052100110

O-RING,2.4mm Thk x 10.8mm ID

P11

1шт.

22

SBA322051380

DRIVE

Pinion

1шт.

23

SBA326600110

CLUTCH

Differential Lock

1шт.

24

SBA036100050

SNAP RING

1шт.

25

SBA040106010

BEARING ASSY

1шт.
