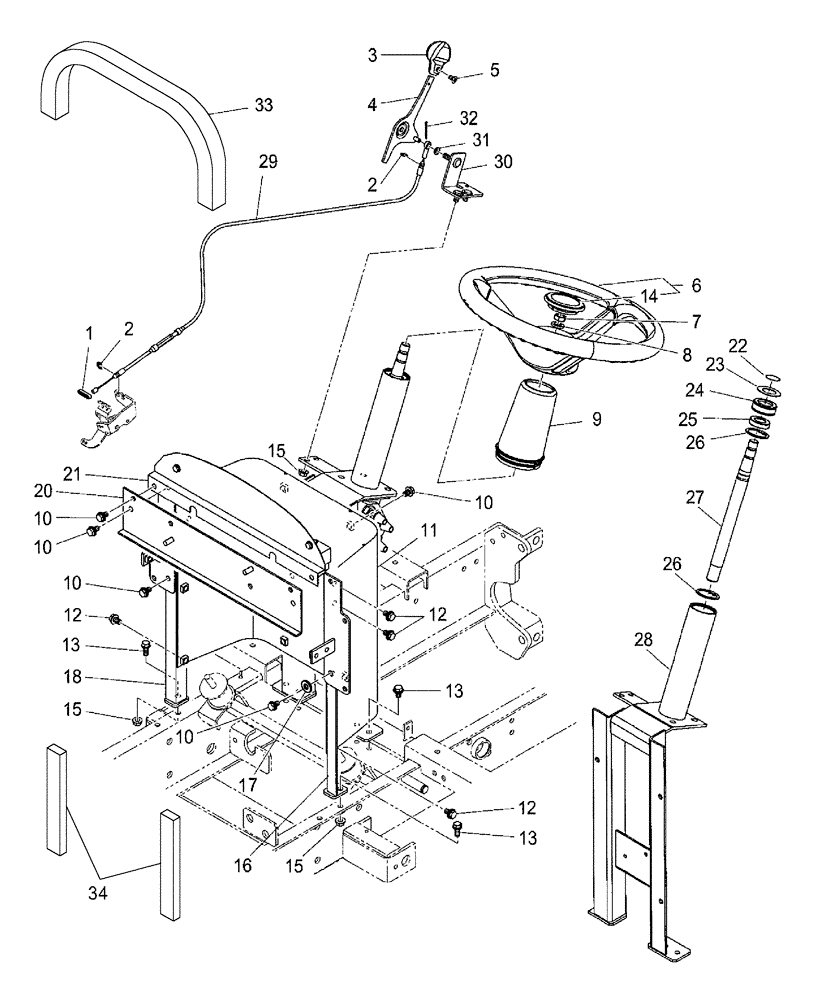

Запчасти Case IH DX18E (04.04) - STEERING & STEERING COLUMN (04) - FRONT AXLE & STEERING

1

SBA398114451

RUBBER BUSHING

1шт.

2

SBA036800004

SNAP RING

2шт.

3

SBA398181900

GRIP

1шт.

4

SBA312101121

LEVER

1шт.

5

SBA015200408

SCREW

1шт.

6

SBA334300191

STEERING WHEEL

1шт.

7

SBA020800012

NUT

M12

1шт.

8

SBA027100012

WASHER

1шт.

9

SBA334220030

STEERING COLUMN

1шт.

10

SBA010800816

BOLT

M8 x 16

10шт.

11

SBA310353420

PLATE

1шт.

12

SBA010800814

BOLT

M8 x 14

8шт.

13

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

6шт.

14

SBA334320190

CAP

1шт.

14a

SBA390101470

DECAL

Emblem

1шт.

Not Illustrated

1шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

16

SBA350503140

BRACKET, SUPPORTING

1шт.

17

SBA027100010

WASHER

Steering

4шт.

18

SBA350503160

BRACKET, SUPPORTING

1шт.

20

SBA350851770

BRACKET, SUPPORTING

1шт.

21

SBA310353440

PLATE

1шт.

22

SBA036100017

SNAP RING

1шт.

23

SBA399211550

SPACER

1шт.

24

SBA398115510

RUBBER RING

1шт.

25

SBA040146003

BALL BEARING

1шт.

26

SBA036500042

SNAP RING

2шт.

27

SBA334110610

STEERING SHAFT

1шт.

28

SBA334451100

PLATE

Set

1шт.

29

SBA312070220

FLEXIBLE CABLE

Hand Throttle

1шт.

30

SBA312500850

BRACKET, SUPPORTING

1шт.

31

SBA026100006

WASHER

M6

1шт.

32

SBA030102020

COTTER PIN

1шт.

33

SBA398135910

FOAM

1шт.

34

SBA398135930

FOAM

2шт.

35

SBA378460840

COVER PLATE

Dust Control & Water Proof of Wire for Accelerator Lever

1шт.

Not Illustrated

1шт.
