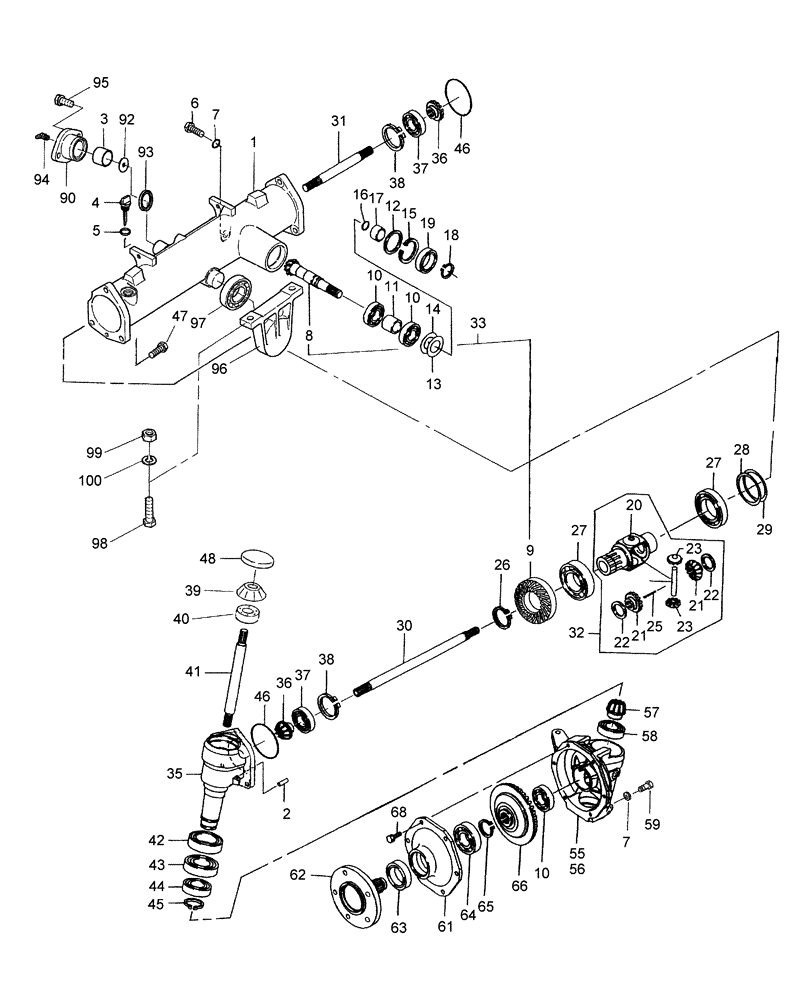

Запчасти Case IH DX18E (04.02) - FRONT AXLE W/ POWER STEERING (04) - FRONT AXLE & STEERING
№
Артикул
Название
Примечание
Количество
1
SBA326345320
CASE
Wheel Shaft
1шт.
2
SBA030500825
PIN
2шт.
3
SBA398510080
DRIVE BUSHING
2шт.
4
SBA398400440
DIPSTICK
1шт.
5
SBA025100020
SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk
1шт.
6
SBA010401212
BOLT
3шт.
8
NSS
NOT SOLD SEPARAT
DRIVE Pinion
1шт.
9
NSS
NOT SOLD SEPARAT
RING Gear
1шт.
10
SBA040106205
RING
4шт.
11
SBA399231190
COLLAR
1шт.
12
SBA399211670
SPACER
1шт.
13
SBA199280560
SHIM,0.1mm Thk
1шт.
14
SBA199280580
SHIM
0.2T
1шт.
15
SBA036500052
SNAP RING
1шт.
16
SBA052100210
O-RING
1шт.
17
SBA399232470
COLLAR
1шт.
18
SBA036100025
SNAP RING
1шт.
19
SBA050202332
SEAL
1шт.
20
SBA326111100
COVER
Housing, Differential
1шт.
21
SBA326140410
GEAR
Differential
2шт.
22
SBA399260890
THRUST WASHER
2шт.
23
SBA326160180
DRIVE PINION
Pinion, Differential
2шт.
24
SBA326130670
SHAFT
Shaft, Pinion
1шт.
25
SBA030300436
COILED PIN
Spring
1шт.
26
SBA036300045
SNAP RING
1шт.
27
SBA040106209
RING
2шт.
28
SBA199280780
SHIM,0.2mm Thk
1шт.
29
SBA199280790
SHIM,0.1mm Thk
1шт.
30
SBA326211700
SHAFT
Differential, LH
1шт.
31
SBA326211710
SHAFT
Differential, RH
1шт.
32
SBA326010420
DIFF. LOCK ASSY
Differential
1шт.
33
SBA322051370
DRIVE PINION
1шт.
35
SBA322118610
CASE
Misson
2шт.
36
SBA326240700
GEAR
Pinion, Final
2шт.
37
SBA040106207
RING
2шт.
38
SBA036500072
SNAP RING
2шт.
39
SBA326240710
GEAR
Pinion, Final
2шт.
40
SBA040106204
ROLLER BEARING
2шт.
41
SBA322514220
DRIVEN SHAFT
2шт.
42
SBA050609052
SEAL
2шт.
43
SBA040106010
BEARING ASSY
2шт.
44
SBA040106007
BEARING ASSY
2шт.
45
SBA036100035
SNAP RING
2шт.
46
SBA052300800
O-RING
2шт.
47
SBA011511035
BOLT,M10 x 35
6шт.
48
SBA398460730
PLUG
2шт.
55
SBA322118421
CASE
LH
1шт.
55
SBA322118422
CASE
LH, USED ON & ABOVE HDG100075, DX18E & HDG200225, DX24E
1шт.
56
SBA322118441
CASE
RH
1шт.
56
SBA322118442
CASE
RH, USED ON & ABOVE HDG100075, DX18E & HDG200225, DX24E
1шт.
57
SBA326240720
GEAR
Pinion, Final
2шт.
58
SBA040106006
BEARING ASSY
2шт.
59
SBA010401212
BOLT
2шт.
61
SBA322213790
COVER
2шт.
62
SBA326312400
WHEEL SHAFT
2шт.
63
SBA050609043
SEAL
2шт.
64
SBA040106206
RING
2шт.
65
SBA036100030
SNAP RING
2шт.
66
SBA326370860
GEAR
Final
2шт.
68
SBA011510820
CAPTIVE WASHER SCREW,Hex, M8 x 20, G5
12шт.
90
SBA330520210
COVER
Pinion Shaft
1шт.
92
SBA399260420
THRUST WASHER
1шт.
93
SBA050301130
SEAL
1шт.
94
SBA060630000
LUBE NIPPLE
1шт.
95
SBA011511025
CAPTIVE WASHER SCREW,Hex, M10 x 25, G5
2шт.
96
SBA322263150
HOLDER
Bearing
1шт.
97
SBA040116207
BEARING ASSY,35mm ID x 72mm OD x 17mm W
1шт.
98
SBA010311240
BOLT
2шт.
99
SBA020910012
NUT,M12, Cl 8.8
2шт.
100
SBA027100012
WASHER
2шт.
Выбрано товаров: 71
