(05.100.03[01]) - FILTERS, DX18E

Запчасти Case IH DX18E (05.100.03[01]) - FILTERS, DX18E (00) - GENERAL

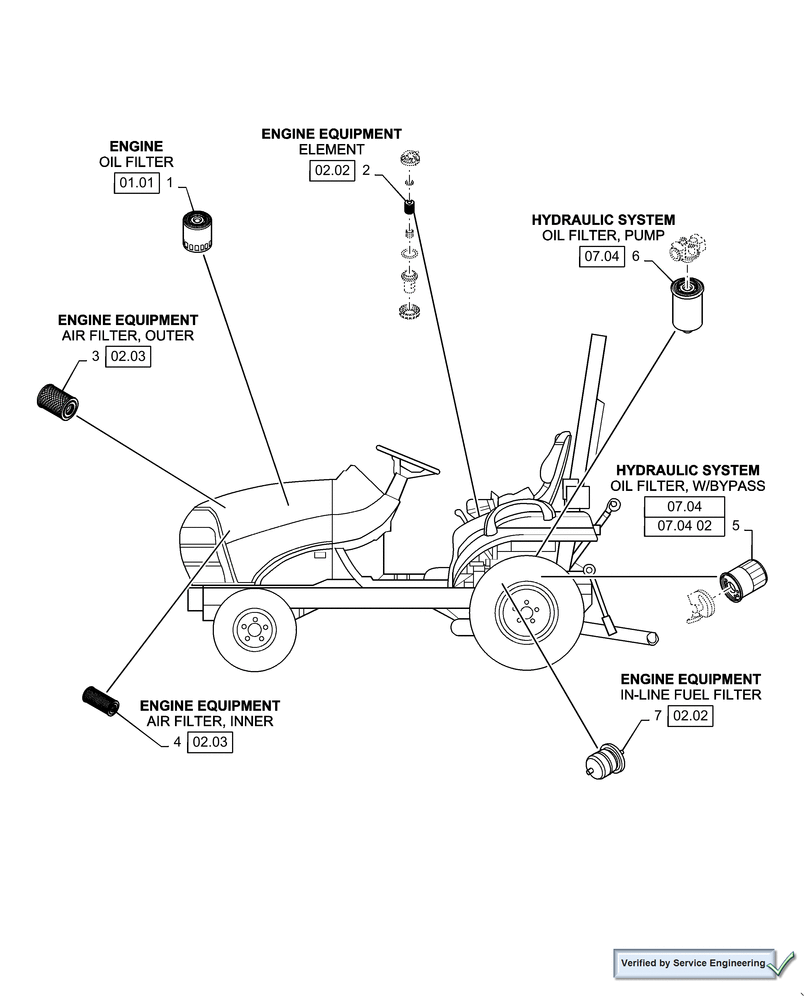

Схема запчастей Case IH DX18E - (05.100.03[01]) - FILTERS, DX18E (00) - GENERAL
7
3
07.04
02.02
4
01.01
6
2
07.04
02.03
1
5
02.02
02.03
07.04 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87409203

ENGINE OIL FILTER

Spin-On

1шт.

2

87300040

FUEL FILTER

Element

1шт.

3

SBA314531174

AIR FILTER

Outer

1шт.

4

SBA314531175

AIR FILTER

Inner

1шт.

5

SBA340501030

FILTER

W/Bypass, Spin-On, For Cold Weather Application

1шт.

5

SBA340500980

HYDRAULIC OIL FILTER

W/Bypass, Spin-On

1шт.

6

87585172

HYDRAULIC OIL FILTER

Pump, Spin-On

1шт.

7

SBA360720070

FUEL FILTER

Kit, In-line, Includes SBA052100100 And SBA052100400

1шт.

Выбрано товаров: 8
