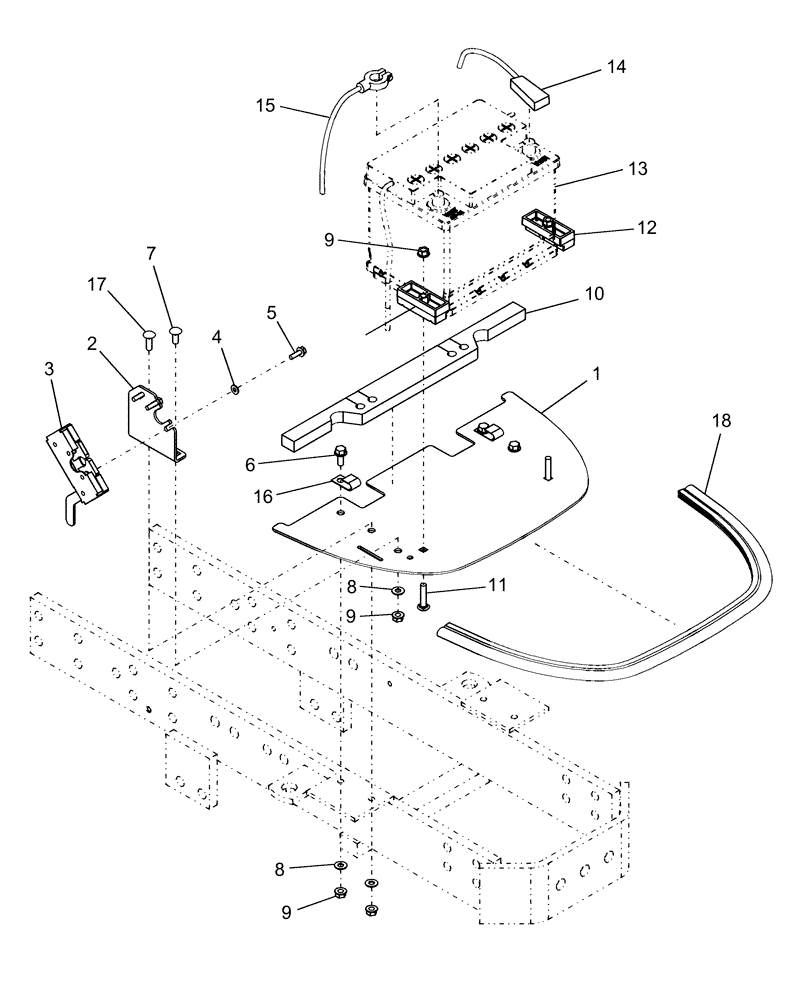

Запчасти Case IH D45 (06.03) - BATTERY & BATTERY PLATE (06) - ELECTRICAL SYSTEMS

1

87340280

PLATE

Battery

1шт.

2

87301002

BRACKET

Latch

1шт.

3

86403766

BRACKET

Hood

1шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

10

86403794

SEAL

1шт.

11

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

12

86403795

INSULATOR BLOCK

2шт.

13

B4750W

WET BATTERY

12V United States

1шт.

13

CB4750W

WET BATTERY

12V Canada

1шт.

14

86572246

CABLE

Positive

1шт.

15

86572247

CABLE

Negative

1шт.

15

87302270

CABLE

Negative

1шт.

Used On & Above PIN HBA16375

1шт.

16

134579

WIRE CLAMP,J

1шт.

17

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

18

87301003

MOLDING

Quick Edge

1шт.
