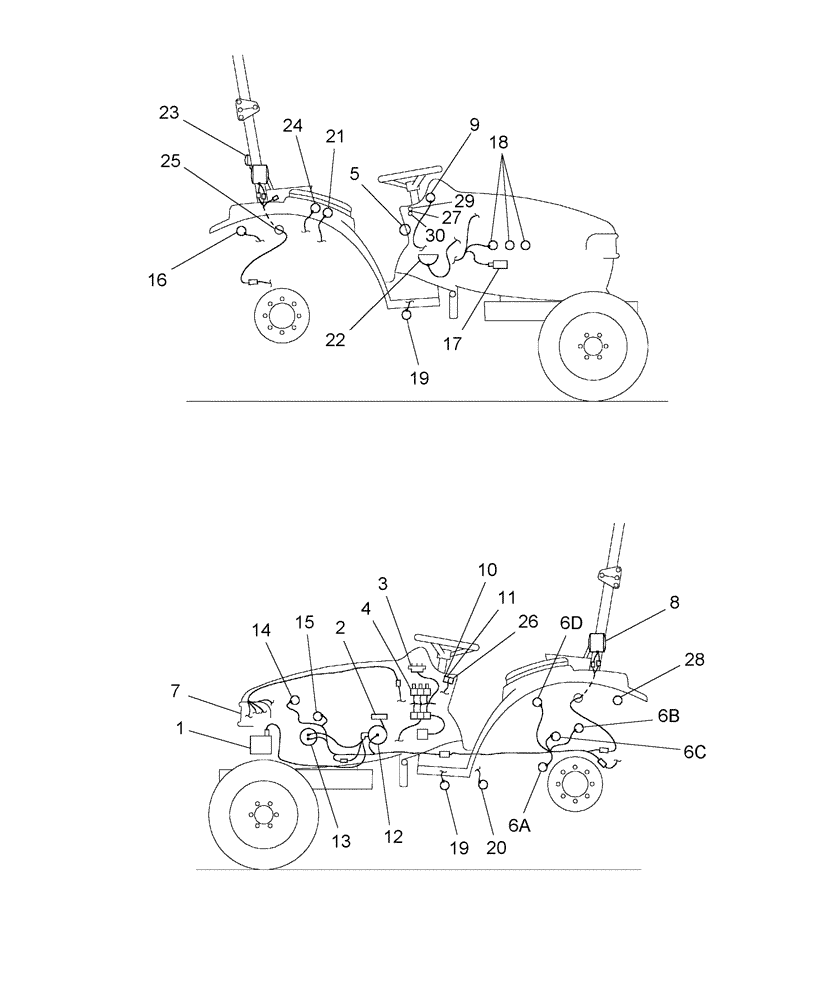

Запчасти Case IH D45 (06.02) - ELECTRICAL COMPONENT LOCATION & FUNCTION (06) - ELECTRICAL SYSTEMS

1

B4750W

WET BATTERY

12V United States Refer to Fig. 06.03

1шт.

1

CB4750W

WET BATTERY

12V Canada Refer to Fig. 06.03

1шт.

2

86507935

FUSE

40 AMP Refer to Fig. 06.04

1шт.

3

NSS

NOT SOLD SEPARAT

Block, Fuse, Part of Main Harness Refer to Fig.06.04 for Fuses

1шт.

4

86509590

RELAY

HST "LOW" Range, HST Cruise Control, Hazard Flasher, Auxiliary Work Lights, HST "HIGH" Range, Fuel Shutoff, PTO Safety,Glow Plug Lamp Refer to Fig. 06.05 D35-D45 or Fig. 06.06 DX35-DX45

5/8шт.

4

86537972

RELAY

Front Work Lights, Neutral Start, Glow Plug, Power, Refer to Fig.06.05 D35-D45 or Fig. 06.06 DX35-DX45

3шт.

4

SBA385870301

TIMER,12V

Glow Plug Lamp, Refer to Fig. 06.05 D35-D45 or Fig. 06.06 DX35-DX45

1шт.

4

86400241

CONTROL UNIT

Safety Module Refer to Fig. 06.05 D35-D45 or Fig. 06.06 DX35-DX45

1шт.

4

86512707

DIODE

HST "HIGH" Range Refer to Fig. 06.06 DX35-DX45

1шт.

5

86405635

SWITCH ASSY

& Keys Refer to Fig. 06.07

1шт.

5

87577814

IGNITION SWITCH

& Keys Refer to Fig. 06.07

1шт.

6a

SBA385200730

SWITCH

Transmission Range Safety Switch (HST & Gear) Refer to Fig. 03.05 12x12 or Fig. 03.06 HST

1шт.

6b

87302334

SWITCH,Four Connectors

Rear PTO Refer to Fig. Fig. 06.08

1шт.

6c

86400228

SWITCH

MID PTO Refer to Fig. 03.17

1шт.

6d

87300397

SWITCH

Operator's Seat Refer to Fig. 10.01.01 & 10.02.01 D35-D45 or Fig.10.03 & 10.04 DX35-DX45

1шт.

7

86400250

HEADLAMP

D35,D40,D45, Refer to Fig. 08.03.01

1шт.

7

86400128

HEADLAMP

DX35,DX40,DX45 Refer to Fig. 08.03.02

1шт.

8

86404265

LIGHT

Rear, RH Refer to Fig. 06.10

1шт.

8

86404264

LIGHT,12V, 21W, Amber/Red

Rear, LH Refer to Fig. 06.10

1шт.

9

86403815

INSTRUMENT PANEL

Refer to Fig. 06.11

1шт.

9

86403815R

REMAN-INSTR CLUSTER

1шт.

9

86403815C

CORE-CLUSTER, INSTR

Return Number

1шт.

10

86558431

LIGHT SWITCH

Main, Refer to Fig. 06.09

1шт.

11

86558430

FLASHER SWITCH

Hazard Light Refer to Fig. 06.09

1шт.

12

SBA185086530

STARTER MOTOR

Refer to Fig. 01.16

1шт.

12

SBA185086530R

REMAN-STARTER

Remanufactured Starter 11 Tooth Drive

1шт.

12

SBA185086530C

CORE-STARTER

Return Part Number

1шт.

12

SBA185086551GV

STARTER MOTOR

Value

1шт.

12

SBA185086551R

REMAN-STARTER

Remanufactured Starter -- 9 Tooth Drive

1шт.

12

SBA185086551C

CORE-STARTER

Return Part Number

1шт.

12

SBA185086530GV

STARTER MOTOR

Value

1шт.

13

SBA185046320

ALTERNATOR

Refer to Fig. 01.15

1шт.

13

SBA185046320R

REMAN-ALTERNATOR

D35, D40, D45, DX35, DX40, DX45 All S/N HBA015001 & Aft.

1шт.

13

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

13

SBA185046320GV

ALTERNATOR

Value

1шт.

14

SBA185246060

SENDER UNIT

Engine Oil Pressure Switch Refer to Fig. 01.08 D35, DX35 or Fig. 01.09 D40, DX40, D45, DX45

1шт.

15

SBA385720101

SENSOR

Engine Coolant Temperature, W/Threaded Post, OAL=1.733" D35-D45 Refer to Fig. 01.13

1шт.

15

SBA385720070

SENSOR

Engine Coolant Temperature, W/Spade Terminal DX35-DX45 Refer to Fig. 01.13

1шт.

16

86402446

SENDER UNIT

Fuel Level Refer to Fig. 02.03

1шт.

17

SBA185206083

SOLENOID

Fuel Shutoff Refer to Fig. 01.18 D35, DX35 or Fig. 01.19 D40,DX40,D45,DX45

1шт.

18

SBA185366060

GLOW PLUG

Refer to Fig. 01.18 D35, DX35 or Fig. 01.18.01 D40,DX40,D45.DX45

1шт.

18

SBA185366190

GLOW PLUG

Refer to Fig. 01.18.01 D45, DX45

1шт.

19

86400228

SWITCH

Parking Brake Refer to Fig. 03.01 D35-D45 or Fig. 03.02 DX35-DX45

1шт.

20

47132449

SWITCH

Cruise Control Brake Release Refer to Fig. 06.12

1шт.

22

87316542

ELECTROMAGNET

HST Control W/6" Wire Lead Refer to Fig. 03.03

1шт.

21

86400038

SWITCH

HST Cruise Control Switch Refer to Fig. 06.12

1шт.

23

SP1229985DS

WORK LAMP

Rear, Refer to Fig. 06.13

1шт.

24

86400037

SWITCH

HST Hi/Lo Range Selector Switch Refer to Fig. 06.12

1шт.

25

87302330

PLUG

Aux. Power Socket Cap

1шт.

25

87313176

PLUG

Aux. Power Socket Cap

1шт.

PARKING BRAKE ALARM

1шт.

25

87302331

SOCKET

Shell Aux. Power Socket Retaining

1шт.

25

87313181

SOCKET

Shell Aux. Power Socket Retaining

1шт.

PARKING BRAKE ALARM

1шт.

25

87302332

SOCKET

Base Aux. Power

1шт.

25

87313178

SOCKET

Base Aux. Power

1шт.

26

86400240

SWITCH

Turn Signal Refer to Fig. 06.09

1шт.

27

47457409

SERVICE KIT

Hazard Flasher/Turn Signal Control Module Refer to Fig. 06.06

1шт.

28

774735

DIODE,6A

Rear PTO Stationary Operation Refer to Fig. 06.05 D35-D45 or Fig. 06.06 DX35-DX45

1шт.

29

774735

DIODE,6A

HST Cruise Control Refer to Fig. 06.06 DX35-DX45

1шт.

30

5188605

BUZZER,12V, 0.7A

Time-Delay

1шт.
