Запчасти Case IH D45 (04.04) - FRONT AXLE & STEERING W/2WD (04) - FRONT AXLE & STEERING

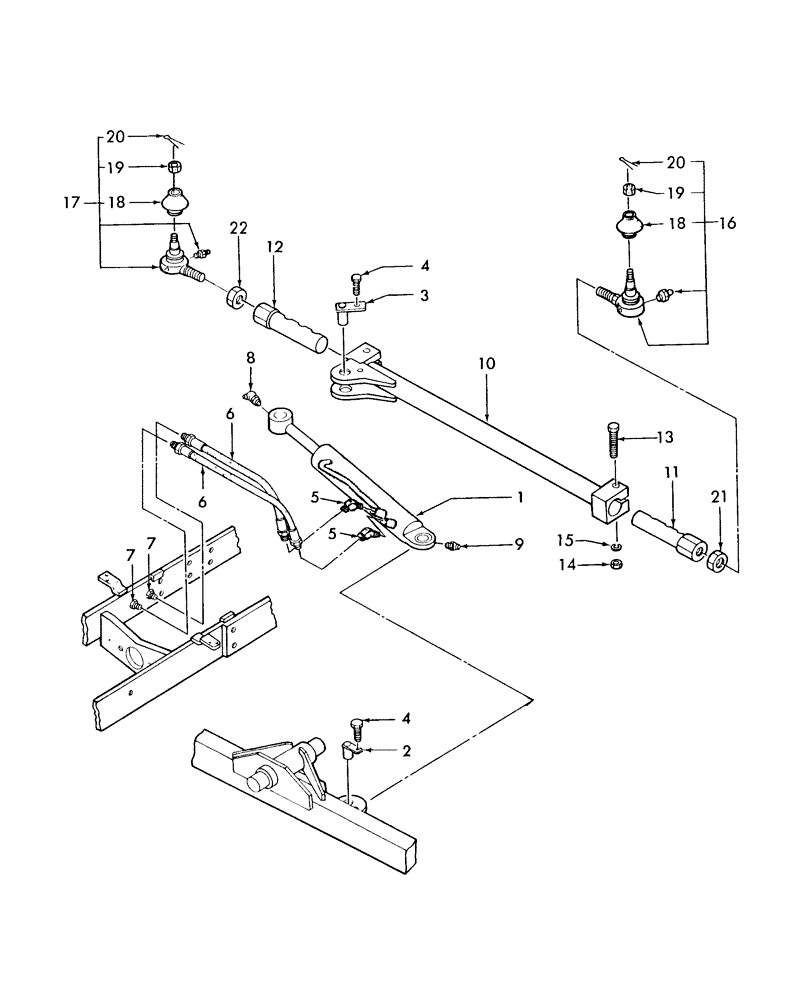

Схема запчастей Case IH D45 - (04.04) - FRONT AXLE & STEERING W/2WD (04) - FRONT AXLE & STEERING
14
4
5
22
17
7
3
18
9
11
6
12
4
15
5
19
7
2
8
13
16
18
10
19
21
20
20
1
6

Артикул

Название

Примечание

Количество

1

SBA344952890

HYDRAULIC CYLINDER

Power Steering Refer to Fig. 04.04.01 for Details

1шт.

2

SBA399600080

PIN

1шт.

3

SBA399600090

PIN

1шт.

4

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

2шт.

5

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

6

86400298

HYDRAULIC HOSE,9.53 mm ID x 540.00 mm, SAE 100R17

Power Steering

2шт.

7

86400264

FITTING,9/16"-18 x M66.4 L

2шт.

8

SBA060620000

LUBE NIPPLE

Zerk, Grease

1шт.

9

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

10

SBA334704210

STEERING TIE-ROD

1шт.

11

SBA334704220

TRACK ROD END ASSY

Link, LH

1шт.

12

SBA334704230

TRACK ROD END ASSY

Link, RH

1шт.

13

SBA010411260

BOLT

2шт.

14

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

15

330327

NUT,M12 x 1.5, Cl 8

2шт.

16

SBA334800630

END

Tie Rod, L.H. Includes: Ref. 18 thru 20

1шт.

17

SBA334800640

END

Tie Rod, R.H. Includes: Ref. 18 thru 20

1шт.

18

SBA334810140

COVER

Dust

2шт.

19

SBA334810130

NUT

M14 x 1.5

2шт.

20

PL

PROCURE LOCALLY

PIN Split

2шт.

21

SBA020109042

NUT

L.H., M20

1шт.

22

320771

NUT,Thin, M20 x 1.5, Cl 04

Jam, CL 8, M20 x 1.5

1шт.

Выбрано товаров: 22
