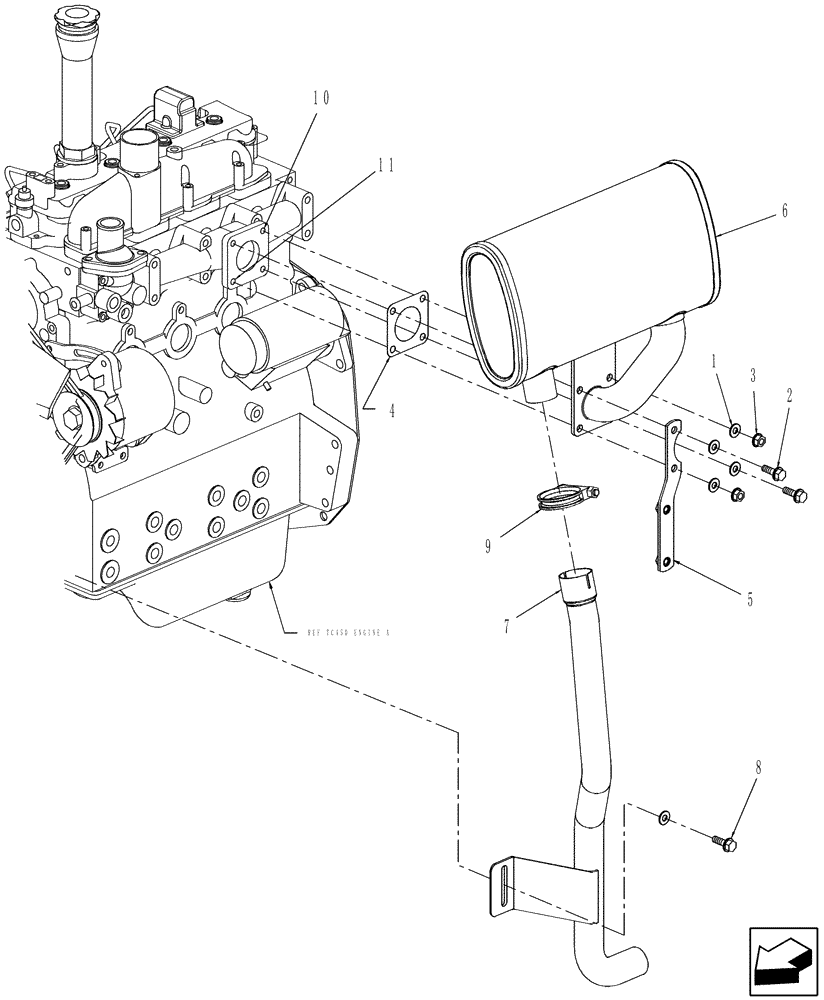

Запчасти Case IH D45 (02.08) - EXHAUST SYSTEM (02) - ENGINE EQUIPMENT

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

SBA314990013

GASKET

1шт.

5

86400048

BRACKET

Guard

1шт.

6

87301289

MUFFLER

1шт.

7

86404273

EXHAUST SYSTEM PIPE

EXHAUST TAIL PIPE

1шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

9

86558966

CLAMP

1шт.

10

SBA012110816

STUD

1шт.

11

SBA012110820

STUD

1шт.
