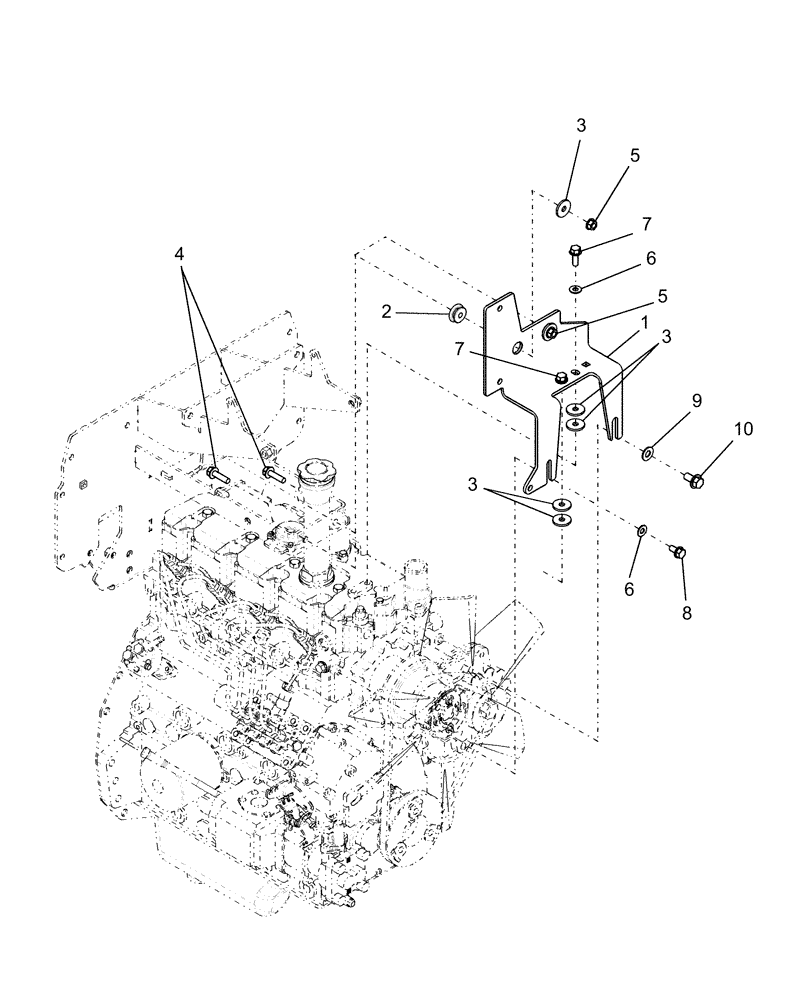

Запчасти Case IH D45 (02.07) - AIR CLEANER BRACKET, 45HP (02) - ENGINE EQUIPMENT

1

86403958

SUPPORT

BRACKET Air Filter Mount

1шт.

2

86400620

ISOLATOR

2шт.

3

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

6шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.
