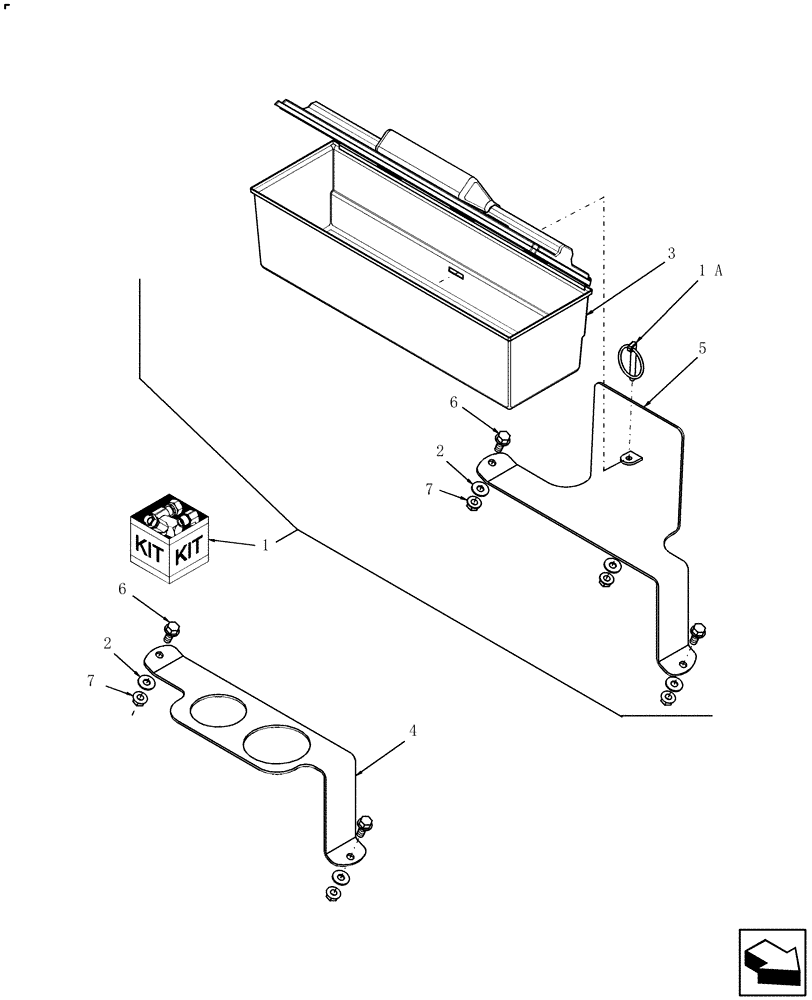

Запчасти Case IH D45 (10.12) - TOOLBOX KIT - 710990046 (10) - OPERATORS PLATFORM/CAB

1

710990046

DIA KIT, ADD PROD

KIT Toolbox

1шт.

1a

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4"

1шт.

2

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

5шт.

3

5135060

TOOL BOX

Plastic

1шт.

4

86400217

BRACKET

Cup Holder

1шт.

5

86400449

BRACKET

Toolbox

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.
