(05.100.03[01]) - FILTERS, DX45

Запчасти Case IH D45 (05.100.03[01]) - FILTERS, DX45 (00) - GENERAL

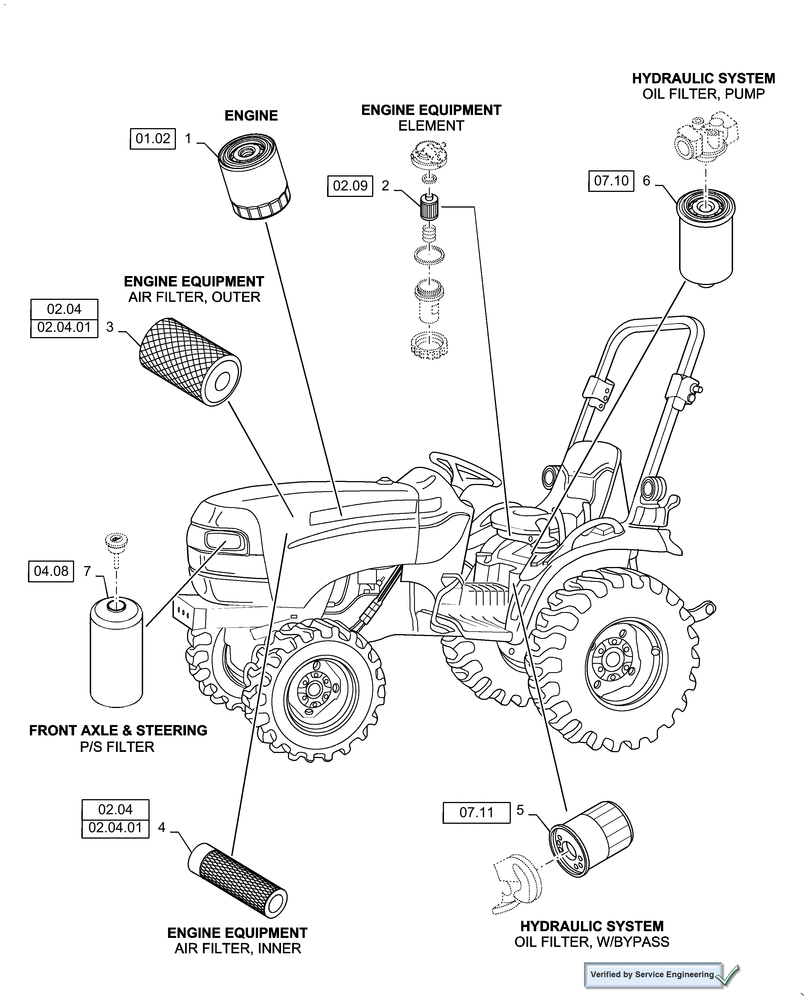

Схема запчастей Case IH D45 - (05.100.03[01]) - FILTERS, DX45 (00) - GENERAL
3
02.04
7
4
07.11
01.02
02.04
2
5
02.04.01
6
1
07.10
04.08
02.04.01
02.09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87409203

ENGINE OIL FILTER

Spin-On

1шт.

2

84477366

ELEMENT

Kit, 47720060 Contains This Filter and one each of O-ring SBA052100100 And SBA052100400

1шт.

3

87300179

AIR FILTER

Outer

1шт.

4

84539215

AIR FILTER

Inner

1шт.

5

SBA340501030

FILTER

W/Bypass, Spin-On

1шт.

5

SBA340500980

HYDRAULIC OIL FILTER

W/Bypass, For Cold Weather Operation

1шт.

6

47408372

HYDRAULIC OIL FILTER

Pump, Spin-On

1шт.

7

SBA360101470

FILTER ASSY

Power Steering

1шт.
