Запчасти Case IH D45 (03.14) - REAR TRANSMISSION PTO DRIVE, LOWER (03) - TRANSMISSION

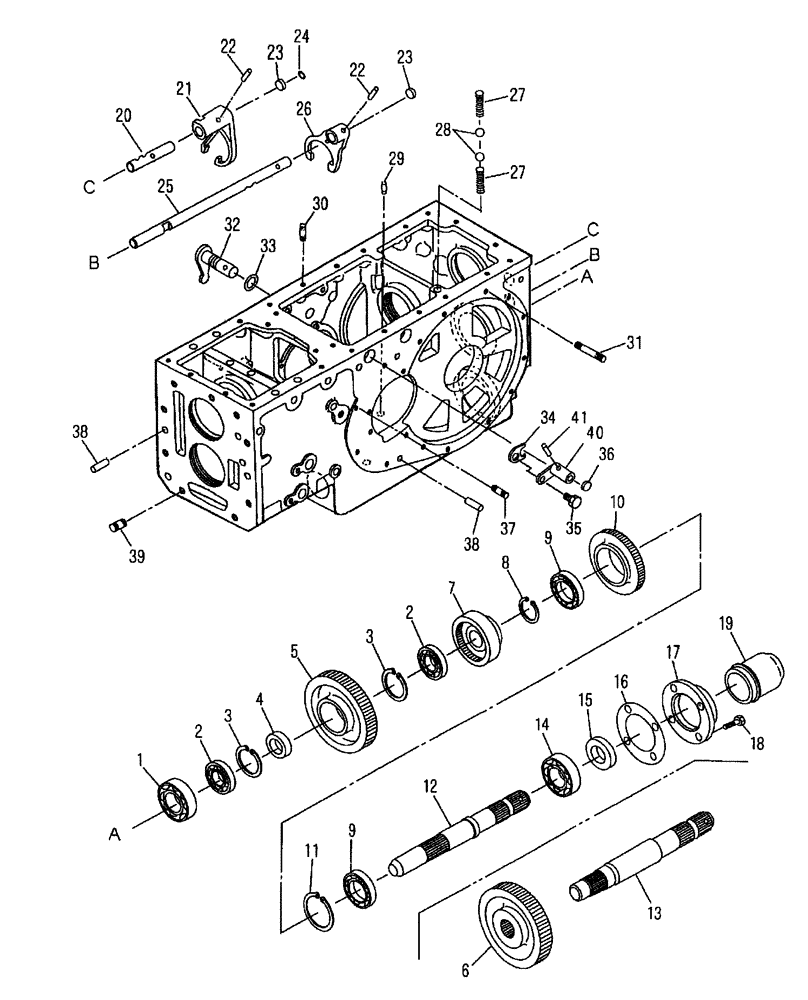

Схема запчастей Case IH D45 - (03.14) - REAR TRANSMISSION PTO DRIVE, LOWER (03) - TRANSMISSION
9
23
33
39
1
20
9
22
36
28
34
21
37
24
27
8
4
25
40
17
2
15
3
12
3
10
22
18
23
26
32
16
27
30
11
2
35
31
19
14
7
29
38
41
13
6
5
38

Артикул

Название

Примечание

Количество

1

46805

BALL BEARING,30mm ID x 72mm OD x 19mm W

Ball

1шт.

2

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

DX35, DX40

2шт.

3

86536801

SNAP RING,M55, Int

DX35, DX40

2шт.

4

SBA399234270

COLLAR

DX35, DX40

1шт.

5

SBA322382490

GEAR

Counter B, PTO

1шт.

6

SBA322325920

GEAR

Fixing A, D35, D40, D45, DX45

1шт.

7

SBA322342020

GEAR

Sliding A, PTO, D35D, DX40

1шт.

8

370006

SNAP RING,M40, Ext

DX35, DX40

1шт.

9

86516078

BALL BEARING,40mm ID x 68mm OD x 15mm W

2шт.

10

SBA322372000

GEAR

Counter, Mid-PTO, DX35, DX40

1шт.

11

11061376

SNAP RING,M68, Int

DX35, DX40

1шт.

12

SBA322590842

SHAFT

PTO, DX35, DX40

1шт.

13

SBA322590851

SHAFT

PTO, 12 x 12, D35, D40, D45, HST DX45

1шт.

14

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

15

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

Oil

1шт.

16

SBA322990990

GASKET

1шт.

17

SBA322142000

COVER

Seal, PTO

1шт.

18

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

19

SBA378110021

GUARD

PTO Cap

1шт.

20

SBA324312980

ROD

Shift, Mid-PTO, DX35, DX40

1шт.

21

SBA324412440

SHIFT, FORK

Mid-PTO, DX35, DX40

1шт.

22

300868

ROLL PIN,6mm OD x 36mm L, Slotted

DX35, DX40

2шт.

23

SBA322140960

PLUG,M16

Seal

2шт.

24

SBA036500017

SNAP RING

DX35, DX40

1шт.

25

SBA324312990

ROD

Shift, DX35, DX40

1шт.

26

SBA324411671

SHIFT, FORK

DX35, DX40

1шт.

27

SBA398210460

SPRING

DX35, DX40

2шт.

28

V34014

BALL

Steel, DX35, DX40

2шт.

29

SBA012110816

STUD

2шт.

30

SBA012111025

BOLT

Stud

6шт.

31

SBA012111065

STUD

Stud

2шт.

32

SBA324202720

ARM

Shift, DX35, DX40

1шт.

33

SBA052100140

O-RING

DX35, DX40

1шт.

34

SBA399564790

PLATE

DX35, DX40

1шт.

35

SBA011510816

BOLT

M8 x 16, DX35, DX40

1шт.

36

SBA064210018

PLUG

Sealing, D35, D40, D45, DX45

1шт.

37

SBA012111030

STUD,M10 x 30

5шт.

38

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

6шт.

39

SBA012111230

STUD

2шт.

40

SBA324106870

LEVER

Mid-PTO

1шт.

41

300868

ROLL PIN,6mm OD x 36mm L, Slotted

Spring

1шт.

Выбрано товаров: 41
