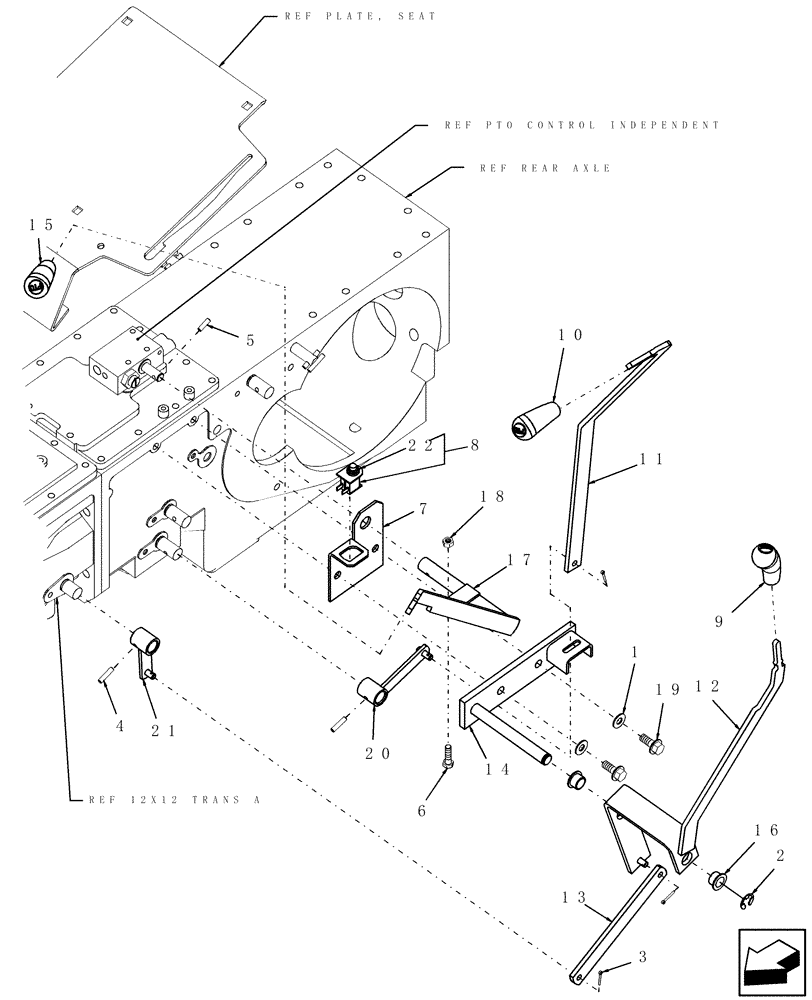

Запчасти Case IH D45 (03.10) - LH LEVERS ASSEMBLY (03) - TRANSMISSION

1

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

2

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

3шт.

4

9511051

LOCK PIN,M6 x 30, Slotted

2шт.

5

412155

LOCK PIN,6mm OD x 20mm L, Slotted

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

7

86400155

BRACKET

1шт.

8

86400227

SWITCH,Two Connectors, 90° Terminals

ASSY, Plunger SPST, PTO, Includes Ref 22

1шт.

9

86524779

KNOB

Range

1шт.

10

86524782

KNOB

FWD

1шт.

11

86558085

LEVER

FWD

1шт.

12

86558109

LEVER

Range

1шт.

13

86558117

CONNECTING LINK

Range

1шт.

14

86558119

SHAFT

Range

1шт.

15

86558454

KNOB

PTO Indicator

1шт.

16

86558960

BUSHING,Hat, 15.8mm ID x 19.05mm OD x 25.4mm OD x 12.7mm W

2шт.

17

86567963

LEVER

PTO Indicator

1шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

19

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

20

SBA324106810

LEVER

Change, FWD

1шт.

21

SBA324106820

LEVER

Change, Range

1шт.

22

86400465

BOOT

1шт.
