Запчасти Case IH D45 (03.01) - BRAKE & CLUTCH PEDAL, 12X12 (03) - TRANSMISSION

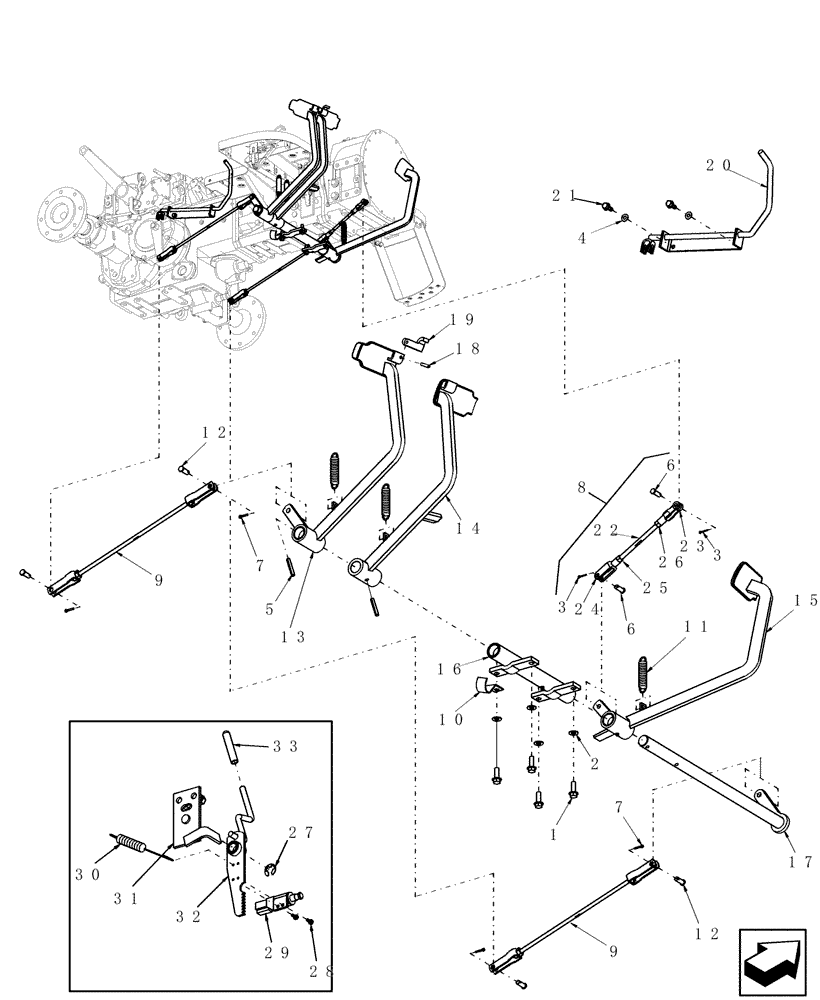

Схема запчастей Case IH D45 - (03.01) - BRAKE & CLUTCH PEDAL, 12X12 (03) - TRANSMISSION
2
12
13
29
7
33
14
7
8
9
21
23
6
32
11
10
20
24
27
31
3
30
12
26
3
6
28
9
16
17
18
25
1
5
19
22
4
15

Артикул

Название

Примечание

Количество

1

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

5

300873

ROLL PIN

M8 x 50

2шт.

6

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

2шт.

7

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

8

86400132

CONNECTING LINK

Clutch, Includes: Ref. 3, 6 and 22 thru 26

1шт.

9

86400169

ROD

Brake

2шт.

10

86400268

HOLDER

Tube

1шт.

11

86530740

SPRING

Pedal

3шт.

12

86530992

CLEVIS PIN,10mm OD x 29.1mm L

4шт.

13

86554927

PEDAL

Brake, R.H., Includes: 712998R91 Lube Fitting

1шт.

14

86402089

PEDAL

Brake, L.H.

1шт.

Used with ratchet 86558141

1шт.

Replace with ratchet 86403965 and L.H. brake pedal 86403964

1шт.

14

86403964

PEDAL

Brake, L.H.

1шт.

Used with ratchet 86403965

1шт.

Used on and ASN HBA0006339

1шт.

15

86554929

PEDAL

Clutch, Includes: 712998R91 Lube Fitting

1шт.

16

86554986

TUBE,180, 72.5 mm L

Brake Pivot

1шт.

17

86554995

SHAFT

Pivot

1шт.

18

86555830

ROLL PIN

Spiral

1шт.

19

86556100

LATCH

Brake Lock

1шт.

20

86558422

DIFF. LOCK ASSY

R.H.

1шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

22

86400131

ROD

Clutch

1шт.

23

86400133

INSERT

Clevis, 3/8

1шт.

24

86400167

YOKE

End

1шт.

25

86591190

JAM NUT,Jam, 3/8"-24, G2, LH

1шт.

26

87308

JAM NUT,Jam, 3/8"-24, G2

1шт.

27

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

28

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

2шт.

29

86400228

SWITCH

1шт.

30

86530816

SPRING

Extension

1шт.

31

86558138

BRACKET

Parkbrake

1шт.

32

86558141

RATCHET

1шт.

Used with L.H. brake pedal 86402089

1шт.

Replace with ratchet 86403965 and L.H. brake pedal 86403964

1шт.

32

86403965

RATCHET

1шт.

Used on and ASN HBA0006339

1шт.

Used with L.H. brake pedal 86403964

1шт.

33

86567967

HANDLE GRIP

Parkbrake

1шт.

Выбрано товаров: 43
