Запчасти Case IH D40 (03.07) - FRONT TRANSMISSION GEARS, UPPER 12X12 (03) - TRANSMISSION

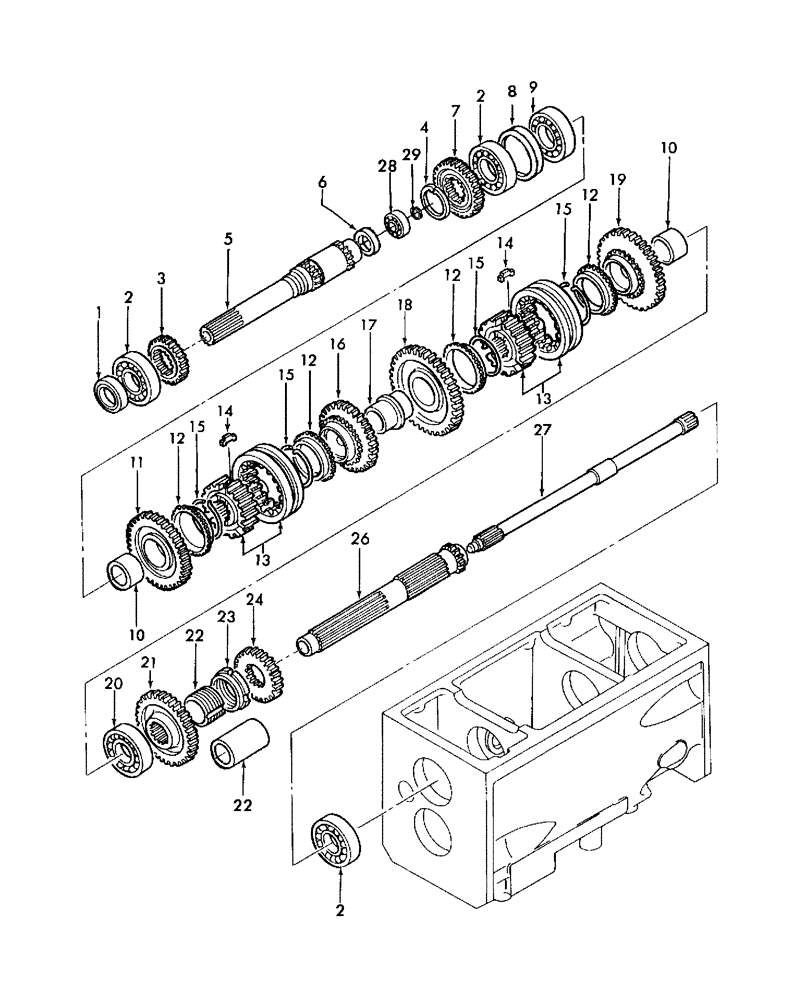

Схема запчастей Case IH D40 - (03.07) - FRONT TRANSMISSION GEARS, UPPER 12X12 (03) - TRANSMISSION
6
23
11
12
18
15
24
22
22
14
29
13
21
19
4
7
10
27
16
8
15
12
1
17
26
13
28
3
20
2
15
9
10
14
12
15
12
2
5
2

Артикул

Название

Примечание

Количество

1

SBA050201335

SEAL

Oil

1шт.

2

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

3шт.

3

SBA322323820

GEAR

Fixing A

1шт.

4

370007

SNAP RING,M45, Ext

1шт.

5

SBA322512343

DRIVEN SHAFT

INPUT

1шт.

6

SBA050103120

SEAL

Oil

1шт.

7

SBA322323360

GEAR

Fixing A

1шт.

8

SBA322262821

HOLDER

Bearing

1шт.

9

SBA040109034

BALL BEARING,32mm ID x 65mm OD x 17mm W

1шт.

10

SBA322613090

COUPLING

2шт.

11

SBA322382550

GEAR

3rd Gear

1шт.

12

SBA322410030

RING

Synchronizer

4шт.

13

SBA322031651

GEAR SET

Synchronizer

2шт.

14

SBA322420040

KEY

6шт.

15

SBA398212080

SNAP RING

4шт.

16

SBA322382510

GEAR

4th Gear

1шт.

17

SBA322613090

COUPLING

2шт.

18

SBA322382500

GEAR

1st Gear

1шт.

19

SBA322382540

GEAR

2nd Gear

1шт.

20

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

Ball

1шт.

21

SBA322325931

GEAR

Fixing A

1шт.

22

SBA399233180

COLLAR

1шт.

22

SBA399236060

COLLAR

Collar

1шт.

USED ON & ABOVE DRIVELINE # 3M60593

1шт.

23

SBA399233170

SEALING RING COLLAR

1шт.

USED BELOW DRIVELINE # 3M60593

1шт.

24

SBA322325860

GEAR

Fixing A

1шт.

26

SBA322531660

COUNTERSHAFT

1шт.

27

SBA322513750

DRIVEN SHAFT

PTO

1шт.

28

SBA040109061

BEARING ASSY,20mm ID x 32mm OD x 7mm W

Ball

1шт.

29

301646

CIRCLIP

Ring, Snap, Int, M32

1шт.

Выбрано товаров: 31
