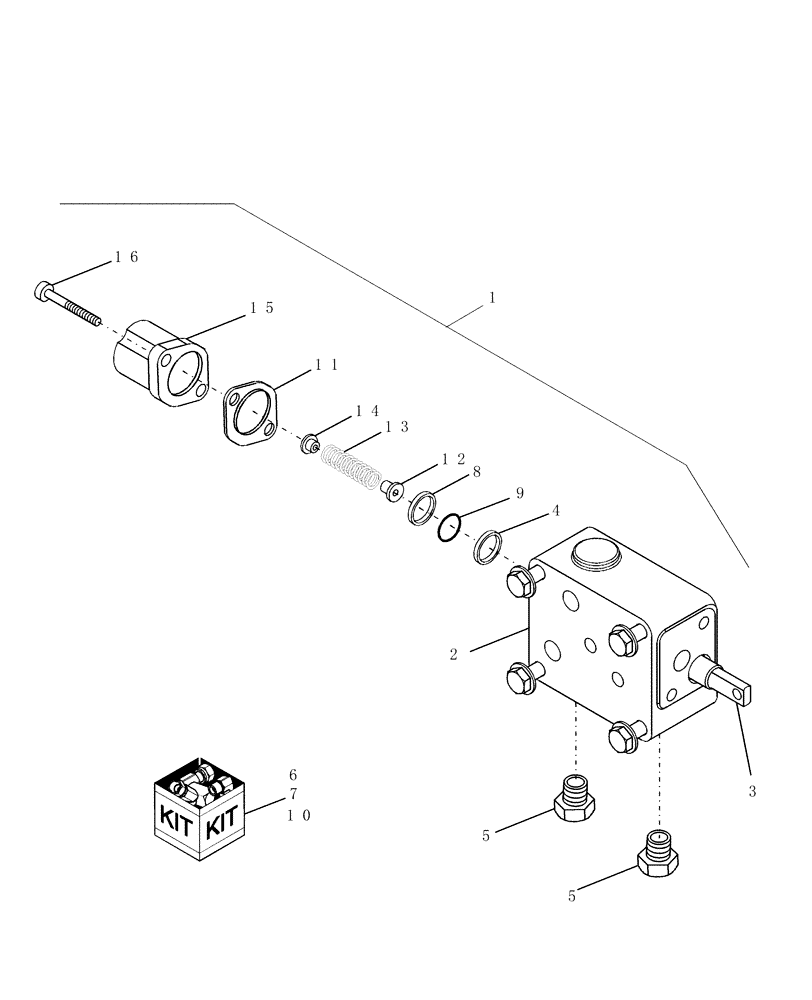

Запчасти Case IH D40 (07.08.01) - REAR REMOTE CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

86554978

REMOTE CONTROL VALVE

Rear, Includes: Ref. 2 thru 16

1шт.

2

NSS

NOT SOLD SEPARAT

Body Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Spool Backup

1шт.

5

NSS

NOT SOLD SEPARAT

Plug Port

2шт.

6

86532883

SEAL KIT

Includes: Ref. 8 thru 10

1шт.

7

86532884

KIT

Spring Center, Includes: Ref. 11 thru 16

1шт.

8

NSS

NOT SOLD SEPARAT

Washer Backup

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Kit O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Plate Retainer

1шт.

12

NSS

NOT SOLD SEPARAT

Cup Stop

2шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Adapter

1шт.

15

NSS

NOT SOLD SEPARAT

Cap End

1шт.

16

NSS

NOT SOLD SEPARAT

Screw Cap

2шт.
