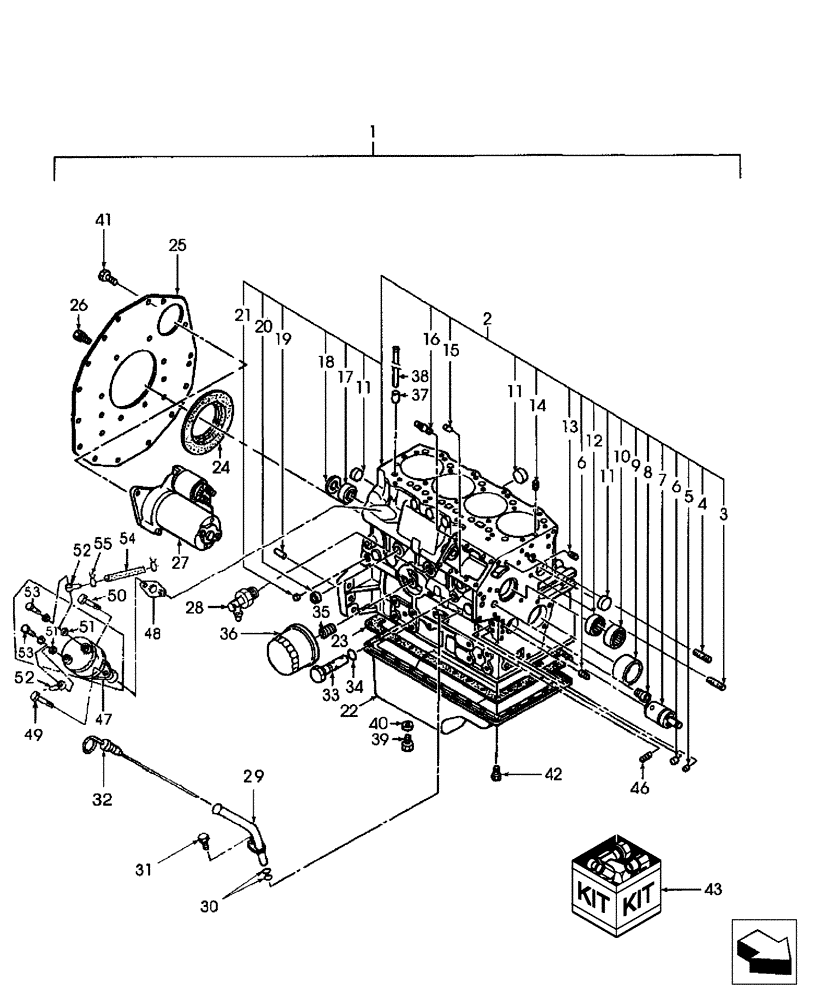

Запчасти Case IH D40 (01.02) - CYLINDER BLOCK (01) - ENGINE

1

SBA133638

BLOCK

Long, Includes: 2 thru , D40, DX40

1шт.

Includes: cylinder block, cylinder head, crankshaft, camshaft and piston and rod assy.

1шт.

1

SBA133638ER

REMAN-REPLACEMENT EN

D40 PIN # HBA0005005 & Above (12/00-), DX40 PIN # HBA0005006 & Above (12/00-8/03)

1шт.

1

SBA133638EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

SBA133639

BLOCK

Long, Includes: 2 thru , D45, DX45

1шт.

Includes: cylinder block, cylinder head, crankshaft, camshaft and piston and rod assy.

1шт.

1

SBA133639R

REMAN-BASIC ENGINE

Long, Includes: 2 thru , D45, DX45

1шт.

1

SBA133639C

CORE-BASIC ENGINE

Return Number

1шт.

1

SBA133639ER

REMAN-BASIC ENGINE

Long, Includes: 2 thru , D45, DX45

1шт.

1

SBA13363EPAC

Return Number

1шт.

2

Block Cylinder

1шт.

3

SBA012110660

STUD

1шт.

4

SBA012110635

STUD

1шт.

5

SBA198466010

PLUG

Blank 8.4mm

3шт.

6

SBA198466020

PLUG

Blank 10.4mm

4шт.

7

SBA165296131

SHAFT

Gear Assy Idler, Uses Pin SBA140196072

1шт.

9

SBA198517220

BUSHING

Standard

1шт.

9

SBA198517224

BUSHING

U/S, 0.10" or 0.25 mm

1шт.

9

SBA198517227

BUSHING

U/S, 0.20" or 0.50 mm

1шт.

10

SBA042309018

NEEDLE BEARING

1шт.

11

SBA064210040

CAP

5шт.

12

SBA042309017

NEEDLE BEARING

1шт.

13

SBA030500616

DOWEL,M6 x 16

2шт.

14

SBA030309005

PIN

Spring

2шт.

15

SBA030500612

DOWEL

2шт.

16

SBA012110820

STUD

3шт.

17

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

18

SBA064100045

PLUG

Expansion

1шт.

19

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

20

SBA064210025

PLUG,25mm

2шт.

21

SBA198466030

PLUG

Blank 6.5 x 7mm

3шт.

22

SBA110708320

ENGINE OIL PAN

1шт.

23

SBA110996860

GASKET

1шт.

24

SBA198636170

SEAL

Oil, D40, DX40

1шт.

24

SBA050209083

SEAL

D45, DX45

1шт.

25

SBA110367750

PLATE

Rear, D40, DX40

1шт.

25

SBA110367740

PLATE

Rear, D45, DX45

1шт.

26

SBA011510816

BOLT

M8 x 16

10шт.

27

SBA185086530

STARTER MOTOR

1шт.

27

SBA185086530R

REMAN-STARTER

Remanufactured Starter -- 11 Tooth Drive

1шт.

27

SBA185086530C

CORE-STARTER

Return Number

1шт.

27

SBA185086551R

REMAN-STARTER

Remanufactured Starter -- 9 Tooth Drive

1шт.

27

SBA185086551C

CORE-STARTER

Return Number

1шт.

27

SBA185086530GV

STARTER MOTOR

Value

1шт.

28

SBA198736270

DRAINCOCK/TAP SUPPLY

Fitting

1шт.

29

SBA110756510

TUBE

Dipstick

1шт.

30

SBA052100100

O-RING

2шт.

31

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

1шт.

32

SBA198416630

DIPSTICK

1шт.

33

SBA140036220

VALVE PRESSURE RELIE

1шт.

34

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

35

SBA140546020

ADAPTER

1шт.

36

86402050

FILTER, ENGINE OIL

FILTER, OIL Engine

1шт.

37

SBA120116160

TAPPET

45 mm

8шт.

38

SBA120456250

PUSH ROD,7.97"

D40. DX40

8шт.

38

SBA120456310

PUSH ROD,8.76"

D45, DX45

8шт.

39

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

40

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

2шт.

41

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

2шт.

42

SBA010109235

BOLT

30шт.

43

86590117

KIT

Heater, Engine Coolant, Includes: 5' Cord 86539137, Cable Tie 263117 and Heater NSS

1шт.

46

SBA064409006

PLUG,1/8" NPT

1шт.

47

SBA130506150

FUEL PUMP

1шт.

48

SBA130996130

GASKET

1шт.

49

SBA011310614

BOLT

1шт.

50

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

1шт.

51

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

4шт.

52

SBA198486840

ELEC CONNECTOR

Eye

2шт.

53

SBA130516092

BOLT

Eye

2шт.

54

SBA068209126

HOSE

1шт.

55

SBA067100015

HOSE CLAMP

2шт.
