Запчасти Case IH D40 (10.07) - STEERING COLUMN, FIXED (10) - OPERATORS PLATFORM/CAB

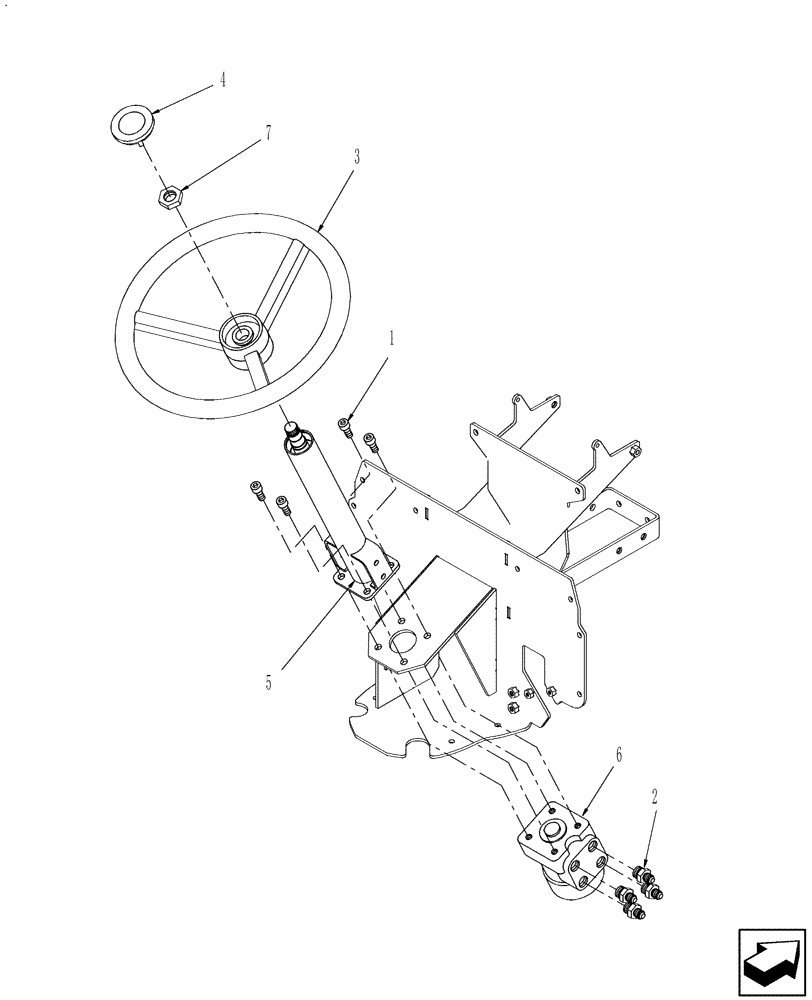

Схема запчастей Case IH D40 - (10.07) - STEERING COLUMN, FIXED (10) - OPERATORS PLATFORM/CAB
6
7
1
4
3
2
5

Артикул

Название

Примечание

Количество

1

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

3

9821708

STEERING WHEEL

1шт.

4

86401649

EMBLEM CASE/IH

Cap and CIH Logo

1шт.

5

86524636

STEERING COLUMN

1шт.

5

86403101

STEERING COLUMN

1шт.

Used on and ASN HBA0001525

1шт.

6

86566453

HYDRAULIC STEERING

Power Steering Motor

1шт.

6

86566453R

REMAN-STEERING VALVE

D40, D45, Both (12/00-), D35 (12/00-8/01), All Case IH Compact Tractor - PIN # HBA0005005 & Above, Power Steering Motor

1шт.

6

86566453C

CORE-STEERING VALVE

Return Number

1шт.

6

86402720

HYDRAULIC STEERING

Power Steering Motor

1шт.

Used on and ASN HBA0005903 D35

1шт.

Used on and ASN HBA0005846 D40, D45

1шт.

7

130321

JAM NUT

Jam, G2, 13/16"-20, Start Year: 01-NOV-97

1шт.

Выбрано товаров: 14
