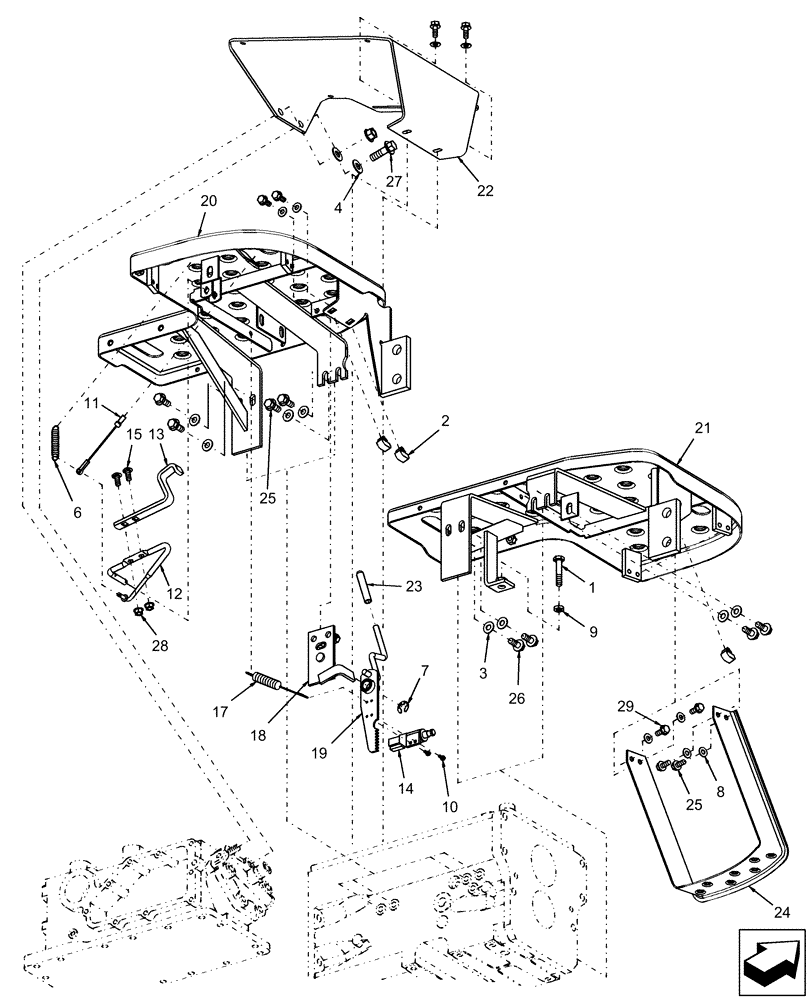

Запчасти Case IH D40 (10.02) - PLATFORM (10) - OPERATORS PLATFORM/CAB

1

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

2

128104

BUMPER

3шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

18

SPRING

1шт.

7

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

9

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

1шт.

10

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

2шт.

11

SBA312070300

FLEXIBLE CABLE

Throttle

1шт.

12

86400126

SHAFT

Accelerator Pedal

1шт.

13

86400127

PEDAL

Accelerator

1шт.

14

86400228

SWITCH

1шт.

15

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

86530816

SPRING

Extension

1шт.

18

86558138

BRACKET

Parkbrake

1шт.

19

86558141

RATCHET

1шт.

Used with LH brake pedal 86402089

1шт.

Replace with ratchet 86403965 and L.H. brake pedal 86403964

1шт.

19

86403965

RATCHET

1шт.

Used on & ASN HBA0006339

1шт.

Used with L.H. brake pedal 86403964

1шт.

20

86401774

PLATFORM ASSY.

Right

1шт.

21

86401775

PLATFORM ASSY.

Left

1шт.

22

86401875

PLATE

Seat

1шт.

23

86567967

HANDLE GRIP

Parkbrake

1шт.

24

86401196

STEP

2шт.

25

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

26

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

8шт.

27

844-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 8.8

1шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

30

86401063

ANCHOR

Located on Left-Hand Side Under Step, Attached to Transmission Housing by Two Bolts, Not Illustrated

1шт.
