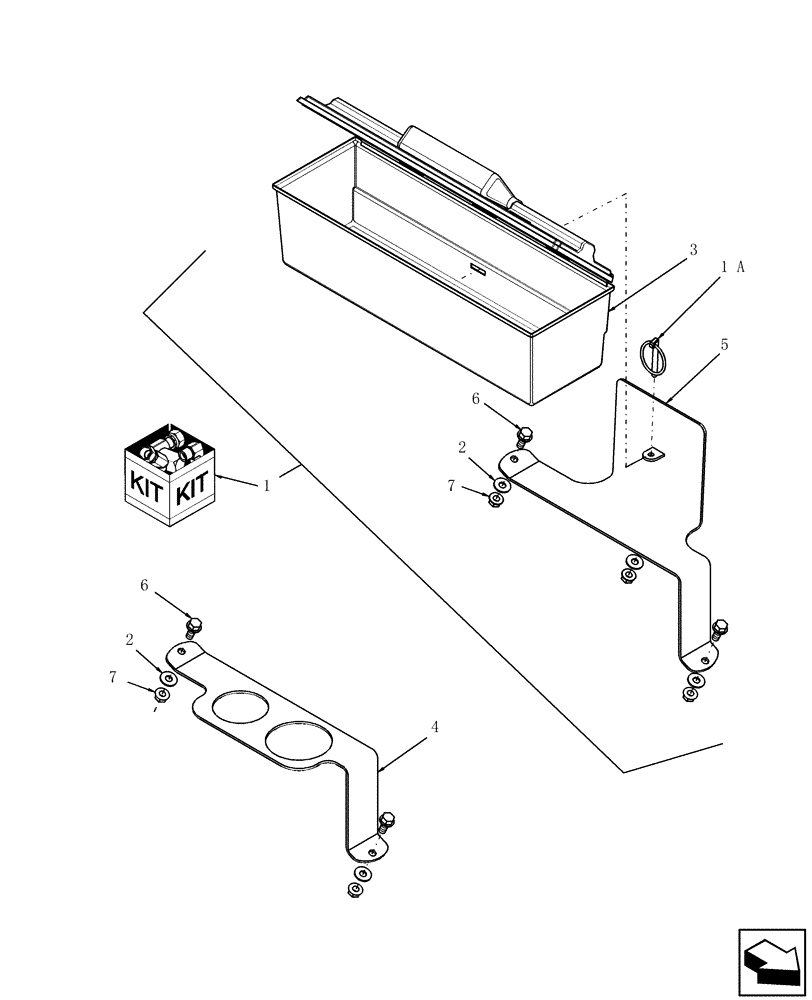

Запчасти Case IH D40 (10.01) - KIT, TOOLBOX (10) - OPERATORS PLATFORM/CAB

1

710990026

FIELD ATTACHMENT

Kit Toolbox

1шт.

1a

270184

LINCH PIN,6.35mm OD

1шт.

2

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

5шт.

3

5135060

TOOL BOX

Plastic

1шт.

4

86400217

BRACKET

Cup Holder

1шт.

5

86400449

BRACKET

Toolbox

1шт.

6

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

5шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.
