Запчасти Case IH D35 (08.03) - HOOD (08) - SHEET METAL

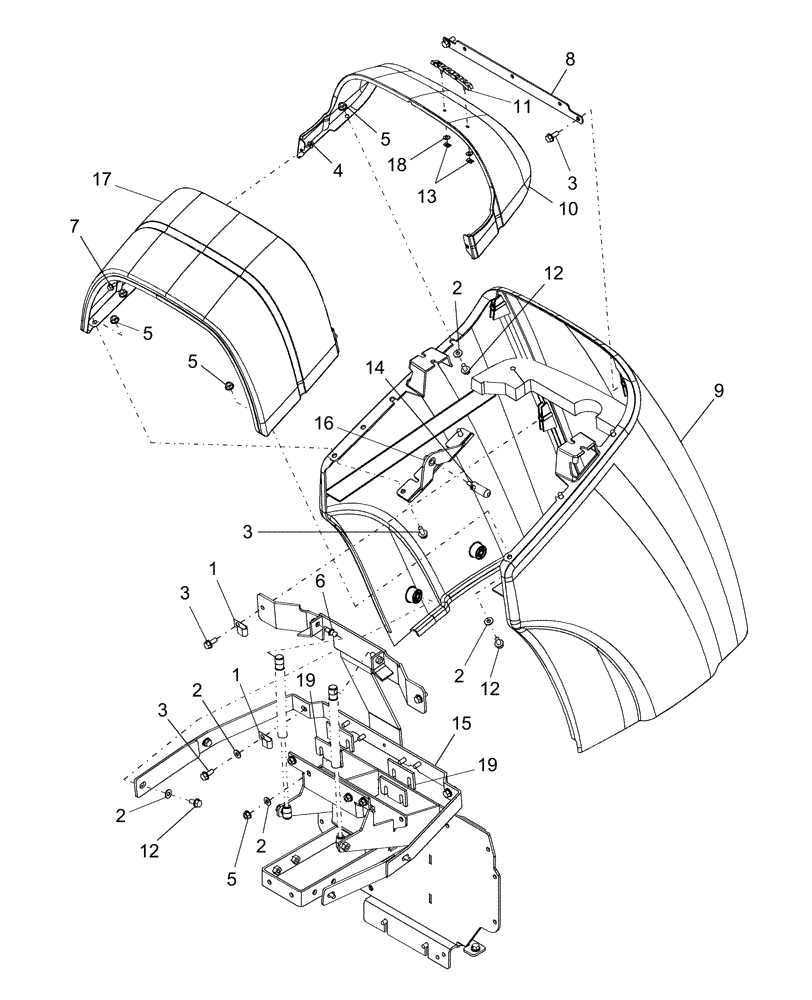

Схема запчастей Case IH D35 - (08.03) - HOOD (08) - SHEET METAL
15
18
8
12
3
12
17
19
6
5
9
16
5
14
2
10
19
3
5
7
2
12
3
2
1
2
2
5
3
4
13
11
1

Артикул

Название

Примечание

Количество

1

134579

WIRE CLAMP,J

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

11шт.

6

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

7

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

8

86404644

BRACKET

Grille Mount

1шт.

9

86405156

HOOD ASSY.

Includes: Ref. 20 - 86405383 & Ref. 21 - 86405214. Superseded to Ref. 1 - 87578695 Hood, Ref. 16 - 87340280 Plate, Ref. 20 - 86405383 Seal, Ref. 21 - 86405214 Seal, 87340288 Battery Plate

1шт.

Used with Copper/Brass Radiator

1шт.

9

87376712

HOOD

Includes: Ref. 20 - 87376713 & Ref. 21 - 87382808. Superseded to Ref. 1 - 84151324 Hood, Ref.20 - 84162672 Seal, Ref. 21 - 84162668

1шт.

Used with Aluminum Radiator

1шт.

9

87578695

HOOD

Supersedes to Ref. 9 84151324

1шт.

9

84151324

HOOD

Must order Ref. 20 84162672 Seal & Ref. 21 84162668 Seal separately

1шт.

10

86405240

GRILLE

Front Top

1шт.

11

86405242

EMBLEM CASE/IH

FARMALL

1шт.

11

87593801

EMBLEM

CASE IH

1шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

13

87037458

PUSH-ON NUT,5/32"

Spring

2шт.

14

87300325

LATCH

STRIKER, M8

1шт.

15

87607130

HINGE

Hinge

1шт.

16

87301004

BRACKET

Striker

1шт.

Used with Copper/Brass Radiator

1шт.

16

87340288

BRACKET

Striker

1шт.

Used with Aluminum Radiator

1шт.

17

87301097

GRILLE

Lower

1шт.

18

87301264

SPACER, RING

2шт.

19

87301314

SHIM

Shim

4шт.

20

86405383

SEAL

Center Hood Included with Hood 86405156

1шт.

20

87376713

SEAL

Center Hood Included with Hood 87376712

1шт.

20

84162672

SEAL

Center Hood Used with Hood 84151324

1шт.

21

86405214

SEAL

Side Included with Hood 86405156

2шт.

21

87382808

SEAL

Side Included with Hood 87376712

2шт.

21

84162668

PLATE

Seal Used with Hood 84151324

2шт.

Выбрано товаров: 34
