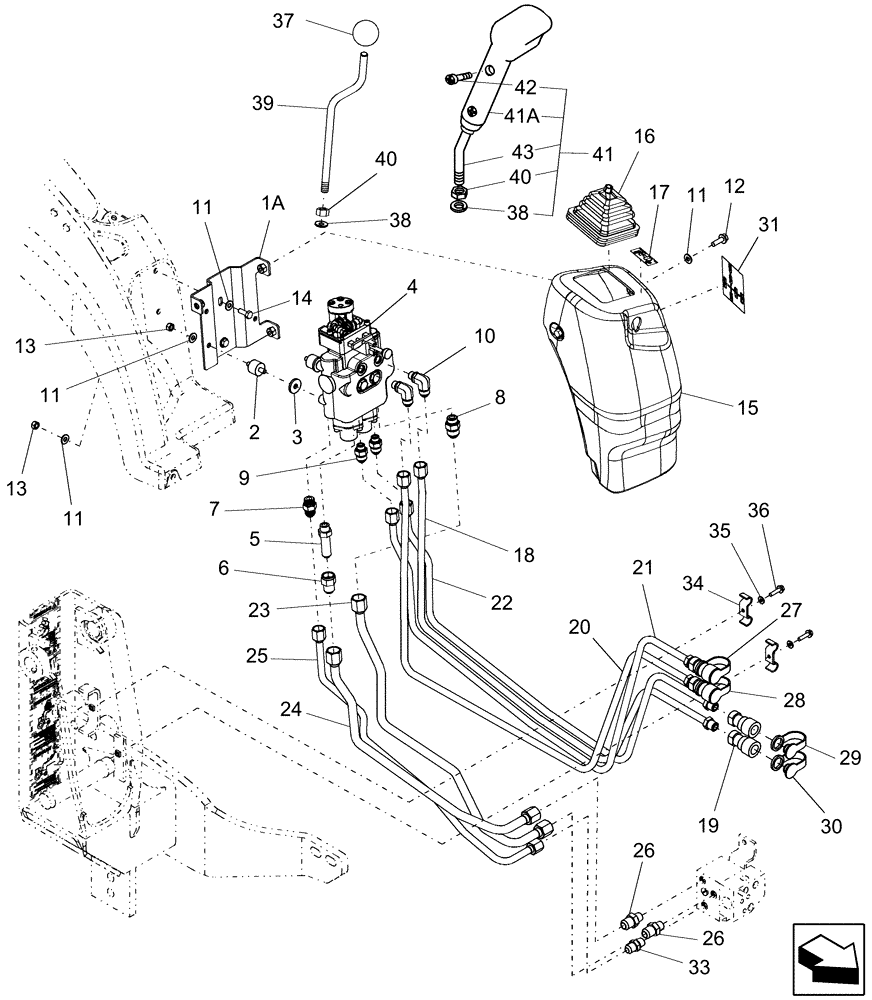

Запчасти Case IH D35 (07.15) - TWO-FUNCTION MID-MOUNT REMOTE HYDRAULIC VALVE 710440056, 716254006 (07) - HYDRAULIC SYSTEM

1

710440056

KIT

2-Spool Remote Valve, Gear

1шт.

1

716254006

DIA KIT, ADD PROD

KIT 2-Spool Remote Valve. HST

1шт.

1a

86404682

BRACKET

Valve Mount

1шт.

2

86567772

INSULATOR

Valve

3шт.

3

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

4

86403581

HYDRAULIC VALVE

1шт.

5

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.

6

87039394

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

ADAPTER

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring 128825

1шт.

8

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Includes: O-Ring 128825

1шт.

9

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Includes: O-Ring 9617873

2шт.

10

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

13

9635082

NUT,5/16" - 18, Gr 5

5шт.

14

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

15

86404680

PROTECTIVE COVER

Loader Control

1шт.

16

86530982

BOOT

Loader Joystick

1шт.

17

86401119

DECAL

Valve Lock

1шт.

18

87300939

HYD TUBE,12.70 mm OD

A2 Port, Boom Rod

1шт.

19

9846343

COUPLING,3/8" NPTF

Hydraulic, O-Ring used is 238-5017 & Back-Up Ring used is 647327

4шт.

20

87300941

HYD TUBE,12.70 mm OD

A1 Port, Bucket Base

1шт.

21

87300942

HYD TUBE,12.70 mm OD

B1 Port, Bucket Rod

1шт.

22

87300940

HYD TUBE,12.70 mm OD

B2 Port, Boom Base

1шт.

23

87301129

HYD TUBE,15.88 mm OD

Pressure

1шт.

24

87301130

HYD TUBE,15.88 mm OD

Power Beyond

1шт.

25

87300937

HYD TUBE,12.70 mm OD

Tank

1шт.

26

242679

HYD CONNECTOR,7/8" - 14 JIC x 3/8" - 18 NPT

Male, Flared Tube

2шт.

27

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

28

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

29

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

30

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

31

86401095

DECAL

Loader Valve

1шт.

33

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

Male

1шт.

34

86524859

CLAMP

Tube

2шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

36

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

37

511632

KNOB

Gear

1шт.

38

81547

LOCK WASHER,7/16"

Gear & HST

1шт.

39

86526852

HANDLE

Loader, Gear

1шт.

40

87891

BHD LOCK NUT,Jam, 7/16"-20, G2

Gear & HST

1шт.

41

86400438

HANDLE

Control Handle Includes: Ref. 38-40, 41A,42 & 43

1шт.

41a

81872967

HANDLE

Loader Control Lever Includes: Ref. 41B-41F

1шт.

41b

81869171

SELF-TAP SCREW,M12 x 38mm

1шт.

Not Illustrated

1шт.

41c

81870743

RETAINER

1шт.

Not Illustrated

1шт.

41d

81874053

SWITCH ASSY

& Wire Assembly

1шт.

Not Illustrated

1шт.

41e

81878190

HANDLE

1шт.

Not Illustrated

1шт.

41f

PL

PROCURE LOCALLY

Screw, M6x2 Pan Head

1шт.

Not Illustrated

1шт.

42

82858251

SCREW,M6 x 10mm, Cl 4.8

M6, HST

2шт.

43

86400437

SUPPORT

Handle, HST

1шт.
