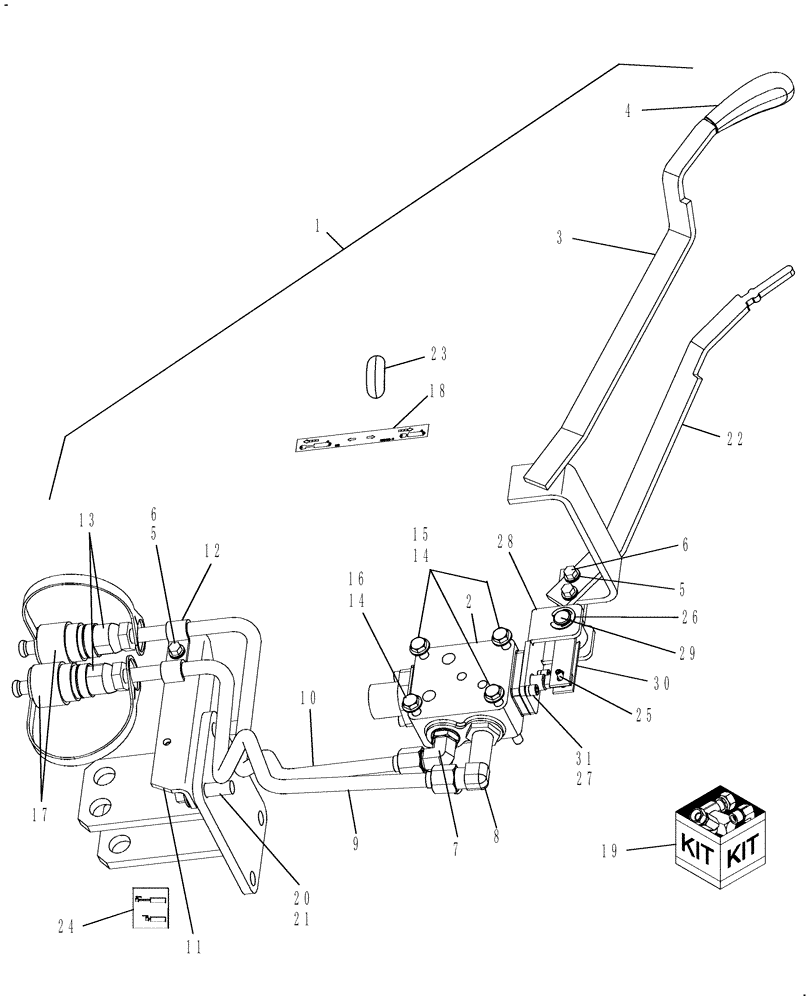

Запчасти Case IH D35 (07.06) - FIRST REAR REMOTE VALVE KIT, SELF-CENTERING ,HST - 710366046 (07) - HYDRAULIC SYSTEM

1

710366046

DIA KIT, ADD PROD

Single Spool, Remote Control Valve #1

1шт.

2

86403116

REMOTE CONTROL VALVE

Refer to Fig. 07.06.03 for details

1шт.

3

86558391

LEVER

Remote #1, Deluxe, HST

1шт.

4

86403810

KNOB

A, Range

1шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

7

128830

ELBOW,90 DEGREE, 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

8

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

1шт.

9

86558259

HYD TUBE

RM1 Port A

1шт.

10

86558261

HYD TUBE

RM1 Port B

1шт.

11

86403114

BRACKET

RM1

1шт.

12

86524859

CLAMP

Tube

1шт.

13

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring Male Coupler is 9801618

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

15

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

16

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

1шт.

17

5186723

DUST CAP,24mm, Black

Dust, 1/2" Coupler

2шт.

18

86567895

DECAL

Remote

1шт.

19

86535818

SEAL KIT

Remote Valve

1шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

21

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

22

86554975

LEVER

Remote #1, Gear

1шт.

23

86404550

DECAL

Remote #1 Logo

1шт.

24

87300013

DECAL

Hydraulic Coupler

1шт.

25

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

26

1826919

SNAP RING

1шт.

27

86400503

SPACER

2шт.

28

86554969

SUPPORT

Hydraulic Remote

1шт.

29

86554970

SHAFT

Remote

1шт.

30

86558379

LEVER

Hyd Pivot Assy.

1шт.

31

86565810

HEX SOC SCREW,1/4" - 20 x 5/8"

2шт.
