(04.04.01) - POWER STEERING CYLINDER ASSEMBLY, W/2WD

Запчасти Case IH D35 (04.04.01) - POWER STEERING CYLINDER ASSEMBLY, W/2WD (04) - FRONT AXLE & STEERING

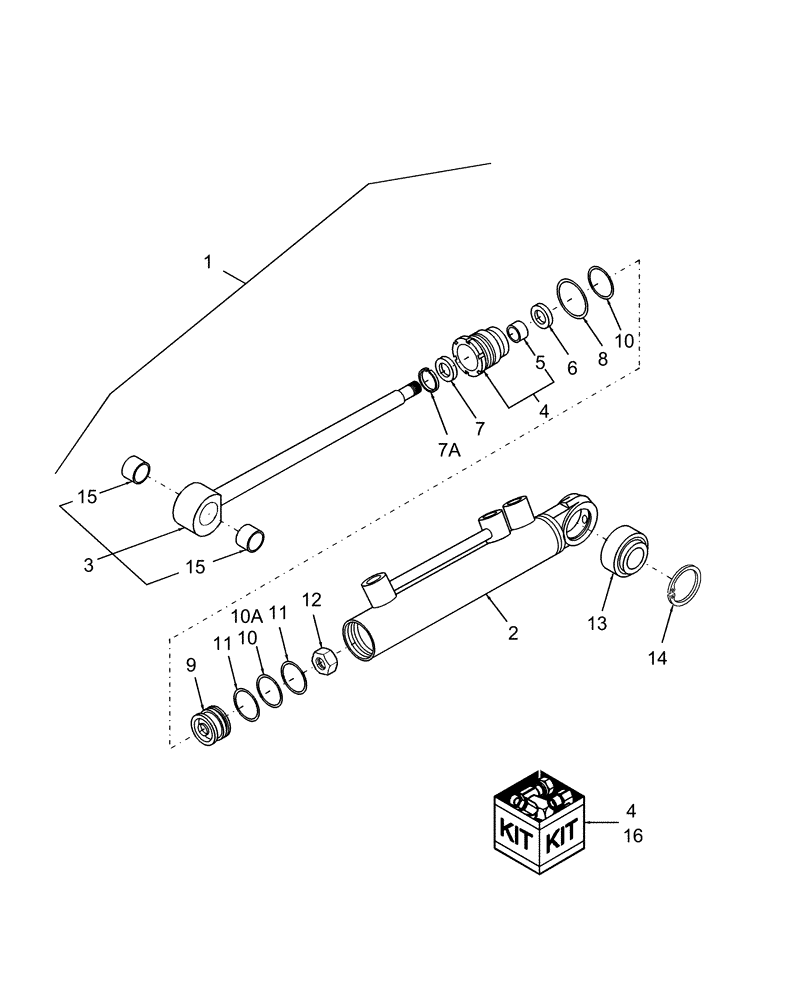

Схема запчастей Case IH D35 - (04.04.01) - POWER STEERING CYLINDER ASSEMBLY, W/2WD (04) - FRONT AXLE & STEERING
3
11
13
9
5
11
14
10a
6
12
15
8
4
1
10
2
15
7a
7
10
4
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA344952890

HYDRAULIC CYLINDER

Includes: Ref. 2 thru 16

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Tube Includes: Ref. 13

1шт.

3

NSS

NOT SOLD SEPARAT

Kit, Piston Rod Includes: Ref. 15

1шт.

4

SBA344960455

REPAIR KIT

Cylinder Head Includes: Ref. 5

1шт.

5

SBA344960430

BUSHING

1шт.

6

NSS

NOT SOLD SEPARAT

Packing, Rod

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

7a

SBA344960438

SNAP RING

1шт.

8

SBA052400420

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Piston

1шт.

10

SBA052310350

O-RING

1шт.

10a

SBA052110340

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

RING Back Up

2шт.

12

SBA020910014

NUT

M14

1шт.

13

SBA344960436

BEARING

1шт.

14

SBA036500035

SNAP RING

1шт.

15

SBA344960433

BUSHING

ID .8770"/OD .9915

2шт.

16

SBA344960442

REPAIR KIT

Includes: Ref. 6, 7, 7A, 8, 10, 10A, 11

1шт.
