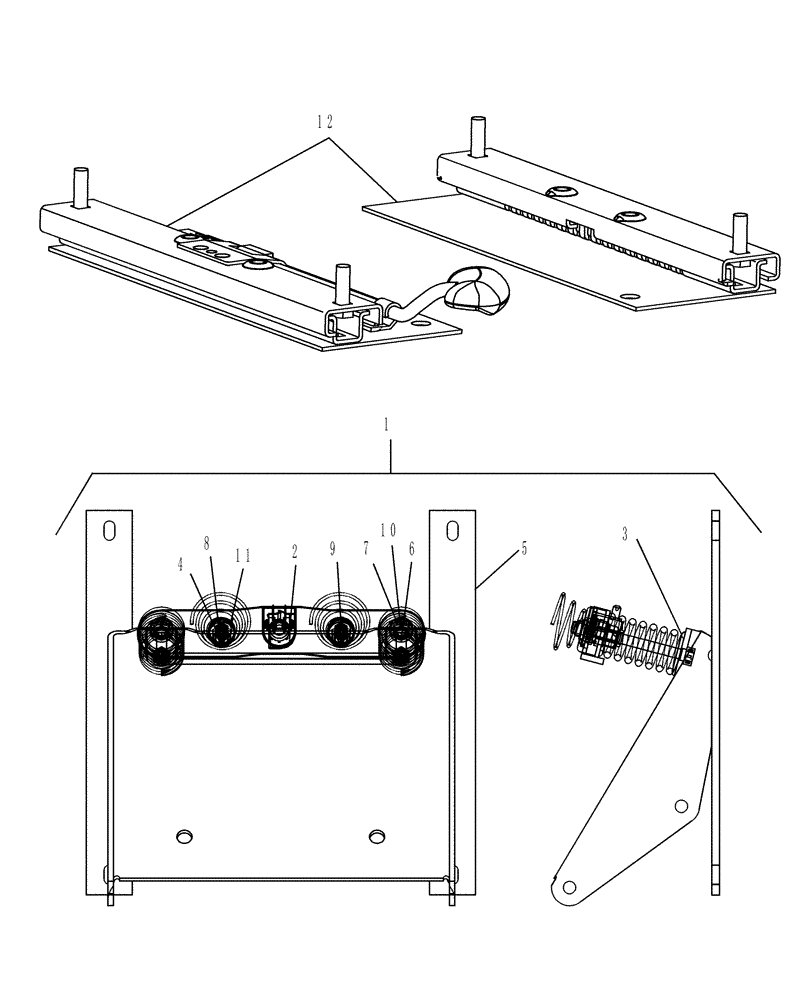

Запчасти Case IH D35 (10.01.01) - ECONOMY SEAT (10) - OPERATORS PLATFORM/CAB

1

86404178

SUSPENSION

Includes: Ref. 2-11

1шт.

2

87300397

SWITCH

Operator Presence

1шт.

3

86400124

SPRING

Compression

2шт.

4

86401230

SPRING

Conical

2шт.

5

86404179

BRACKET

OPS Mounting

1шт.

6

86400123

BUMPER

2шт.

7

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

8

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

9

353308

NUT,M6 x 1.0, Cl 8

2шт.

10

87382

LOCK NUT,5/16"-18, GB

2шт.

11

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

Flat

4шт.

12

86403924

SLIDE

Kit

1шт.
