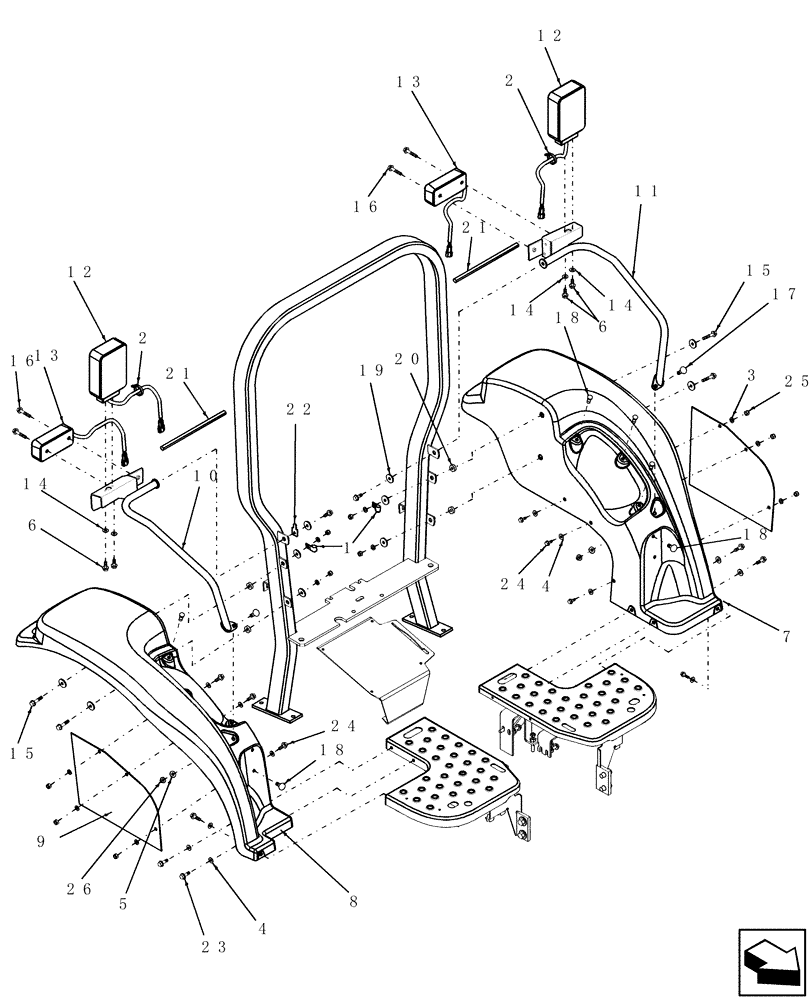

Запчасти Case IH D35 (08.01.01) - FENDERS, USED ON & ASN HBA0005831 (08) - SHEET METAL

1

134579

WIRE CLAMP,J

2шт.

2

249730

SECURING STRAP,8" L

1/8" x 8"

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

4

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

13шт.

5

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

6

825-5145

NUT,M5, Flg Ser

4шт.

7

86401771

FENDER ASSY.

L.H.

1шт.

8

86401772

FENDER ASSY.

R.H.

1шт.

9

86402052

EXTENSION

Fender Shield

2шт.

10

86403058

HANDLE

R.H.

1шт.

11

86403059

HANDLE

L.H.

1шт.

12

86403060

LAMP

Warning, Refer to Figure 06.10 for Breakdown

2шт.

13

86403061

LAMP

Turn Signal, Refer to Figure 06.10 for Breakdown

2шт.

14

892-11005

LOCK WASHER,M5

4шт.

15

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

16

86511929

SCREW,Pan, #10 - 24 x 2 1/2"

4шт.

17

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

18

86535724

CLIP

Pine Tree

10шт.

19

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

10шт.

20

86567916

SPACER

Fender

4шт.

21

86402420

PLASTIC-RUBBER TUBE,10.72 mm ID x 15.09 mm OD x 310 mm L

2шт.

22

86567958

HOLDER

Seat Belt

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

24

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

26

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.
