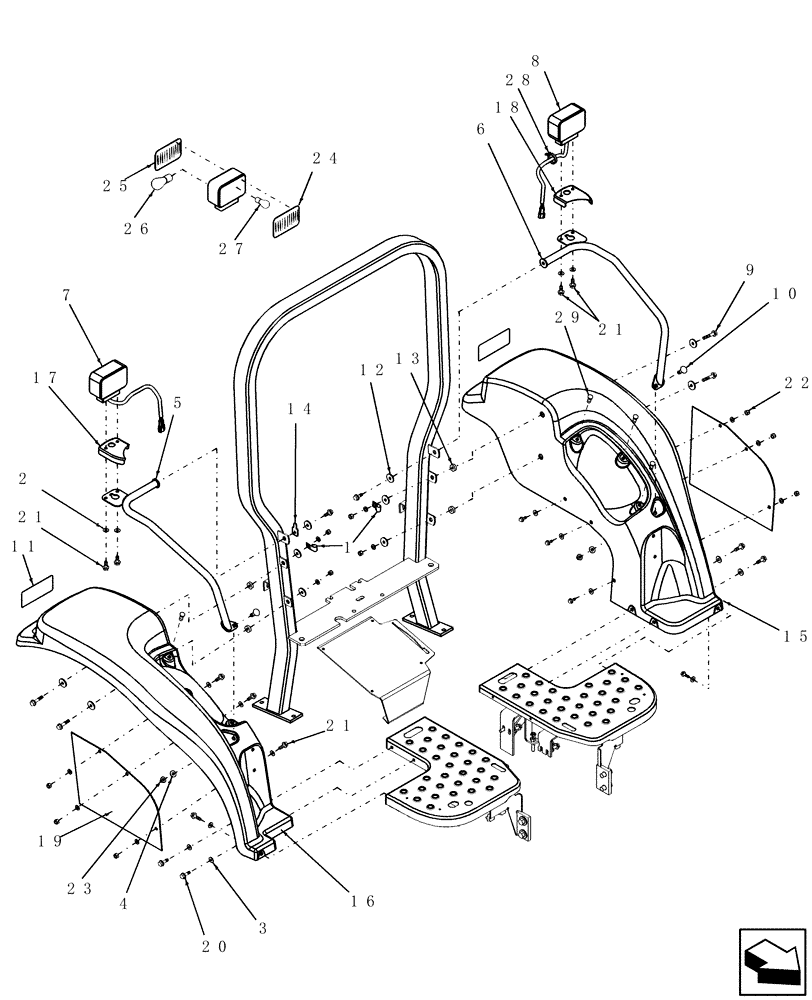

Запчасти Case IH D35 (08.01) - FENDERS (08) - SHEET METAL

1

134579

WIRE CLAMP,J

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

3

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

12шт.

Used BSN HBA0006021

1шт.

3

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

8шт.

4

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

5

86400113

HANDLE

R.H.

1шт.

Used BSN HBA0006021

1шт.

6

86400114

HANDLE

L.H.

1шт.

Used BSN HBA0006021

1шт.

7

86400246

LAMP

Tail, R.H., Includes: Ref. 24 thru 27

1шт.

Used BSN HBA0006021

1шт.

8

86400971

FLASHER UNIT

Tail, L.H., Includes: Ref. 24 thru 27

1шт.

Used BSN HBA0006021

1шт.

9

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

Also Uses (2) 86535724 Pine Tree Clips

4шт.

10

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

11

86532998

DECAL

Tape, Red Reference

2шт.

12

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

10шт.

13

86567916

SPACER

Fender

4шт.

14

86567958

HOLDER

Seat Belt

1шт.

15

86401771

FENDER ASSY.

L.H.

1шт.

16

86401772

FENDER ASSY.

R.H.

1шт.

17

86573743

COVER

R.H.

1шт.

Used BSN HBA0006021

1шт.

18

86573744

COVER

L.H.

1шт.

Used BSN HBA0006021

1шт.

19

86401873

EXTENSION

Fender Shield

2шт.

19

86402052

EXTENSION

Fender Shield

2шт.

Used on and ASN HBA0005729

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

12шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

23

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

24

86576124

LENS

Amber

1шт.

25

86576123

LENS

Amber/Red

1шт.

26

529068

BULB,#1156, 12V, 21W

1шт.

27

86576122

BULB

#168 12V

1шт.

28

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

29

86535724

CLIP

Pine Tree

6шт.
