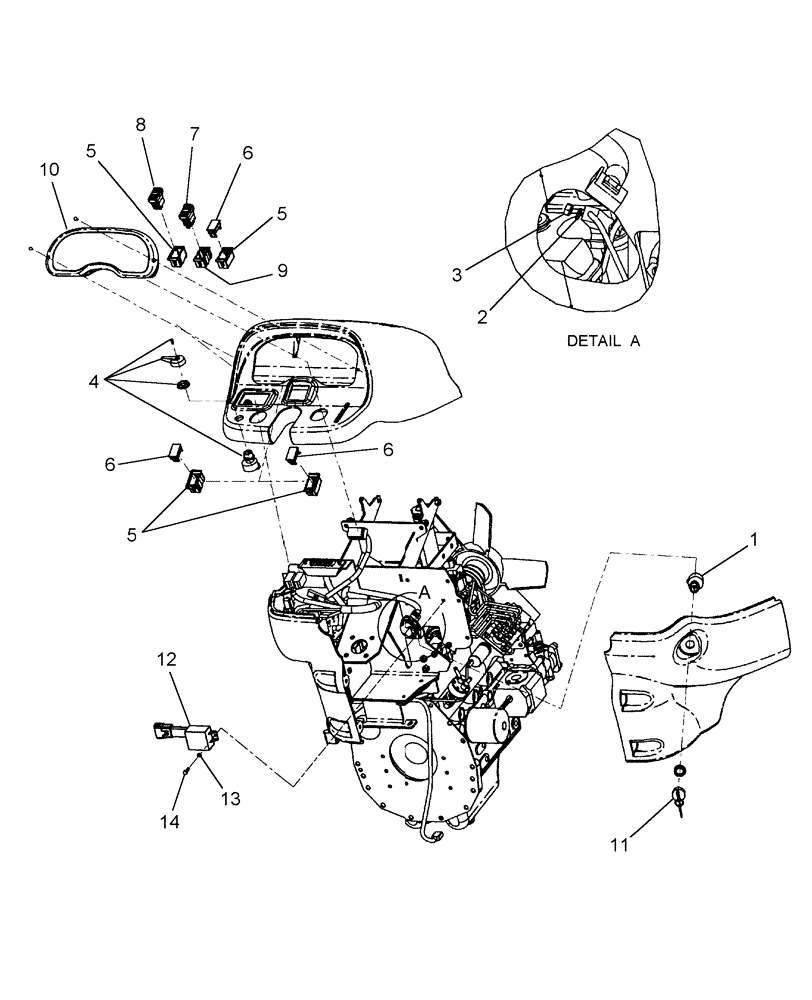

Запчасти Case IH D35 (06.02) - MAIN HARNESS (06) - ELECTRICAL SYSTEMS

1

86400226

IGNITION SWITCH

Includes: Ref. 11

1шт.

2

9672401

LOCK WASHER

Ext T, M4

1шт.

3

825-1404

NUT,M4, Cl 8

1шт.

4

86400240

SWITCH

Turn Signal

1шт.

5

86400368

INSERT

Panel Mount End

4шт.

6

86539709

PLUG

3шт.

7

86558430

FLASHER SWITCH

Rocker, Hazard Warning

1шт.

8

86558431

LIGHT SWITCH

Rocker, Main Light

1шт.

9

86400369

INSERT

Panel Mount End

1шт.

10

86401194

INSTRUMENT PANEL

Refer to Figure 06.04

1шт.

11

86401271

IGNITION KEY

Contains (2) Keys, (2) Covers and (1) Key Ring

1шт.

12

47457409

SERVICE KIT

1шт.

Used on and ASN HB0006021

1шт.

13

86509828

LOCK WASHER,M5

1шт.

Used on and ASN HB0006021

1шт.

14

86511857

SCREW,Phillips Drive, Flat HD, M8 x 20mm, Cl 4.8

M5 x 16

1шт.

Used on and ASN HB0006021

1шт.
