Запчасти Case IH D35 (03.07) - FRONT TRANSMISSION GEARS, UPPER 12X12 (03) - TRANSMISSION

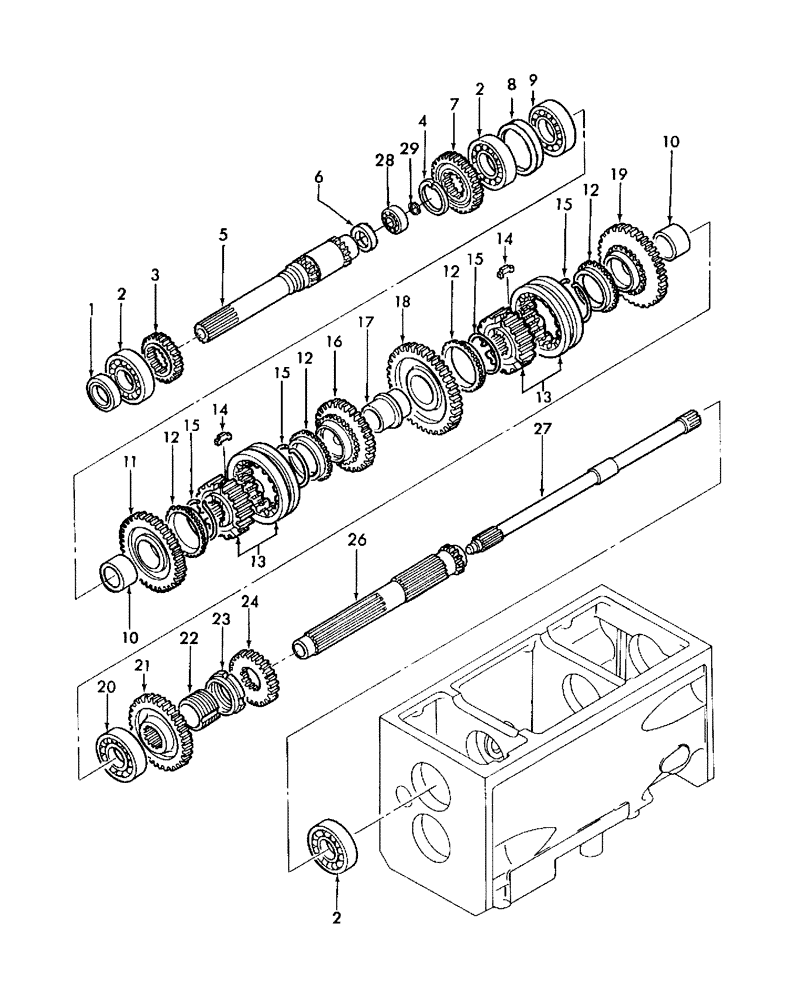

Схема запчастей Case IH D35 - (03.07) - FRONT TRANSMISSION GEARS, UPPER 12X12 (03) - TRANSMISSION
12
14
14
3
15
15
12
16
19
27
17
26
13
13
2
5
10
12
15
4
24
20
2
15
1
21
7
10
23
9
6
22
8
29
28
2
12
18
11

Артикул

Название

Примечание

Количество

1

SBA050201335

SEAL

Oil

1шт.

2

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

3шт.

3

SBA322323820

GEAR

Fixing A

1шт.

4

370007

SNAP RING,M45, Ext

1шт.

5

SBA322512343

DRIVEN SHAFT

INPUT

1шт.

6

SBA050103120

SEAL

Oil

1шт.

7

SBA322323360

GEAR

Fixing A

1шт.

8

SBA322262821

HOLDER

Bearing

1шт.

9

SBA040109034

BALL BEARING,32mm ID x 65mm OD x 17mm W

1шт.

10

SBA322613090

COUPLING

2шт.

11

SBA322382550

GEAR

Counter B

1шт.

12

SBA322410030

RING

Synchronizer

4шт.

13

SBA322031651

GEAR SET

Synchronizer

2шт.

14

SBA322420040

KEY

6шт.

15

SBA398212080

SNAP RING

4шт.

16

SBA322382510

GEAR

Counter B

1шт.

17

SBA322613090

COUPLING

2шт.

18

SBA322382500

GEAR

Counter B

1шт.

19

SBA322382540

GEAR

Counter B

1шт.

20

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

Ball

1шт.

21

SBA322325931

GEAR

Fixing A

1шт.

22

SBA399233180

COLLAR

1шт.

23

SBA399233170

SEALING RING COLLAR

1шт.

24

SBA322325860

GEAR

Fixing A

1шт.

26

SBA322531660

COUNTERSHAFT

1шт.

27

SBA322513750

DRIVEN SHAFT

PTO

1шт.

28

SBA040109061

BEARING ASSY,20mm ID x 32mm OD x 7mm W

Ball

1шт.

29

301646

CIRCLIP

Ring, Snap, Int, M32

1шт.

Выбрано товаров: 28
