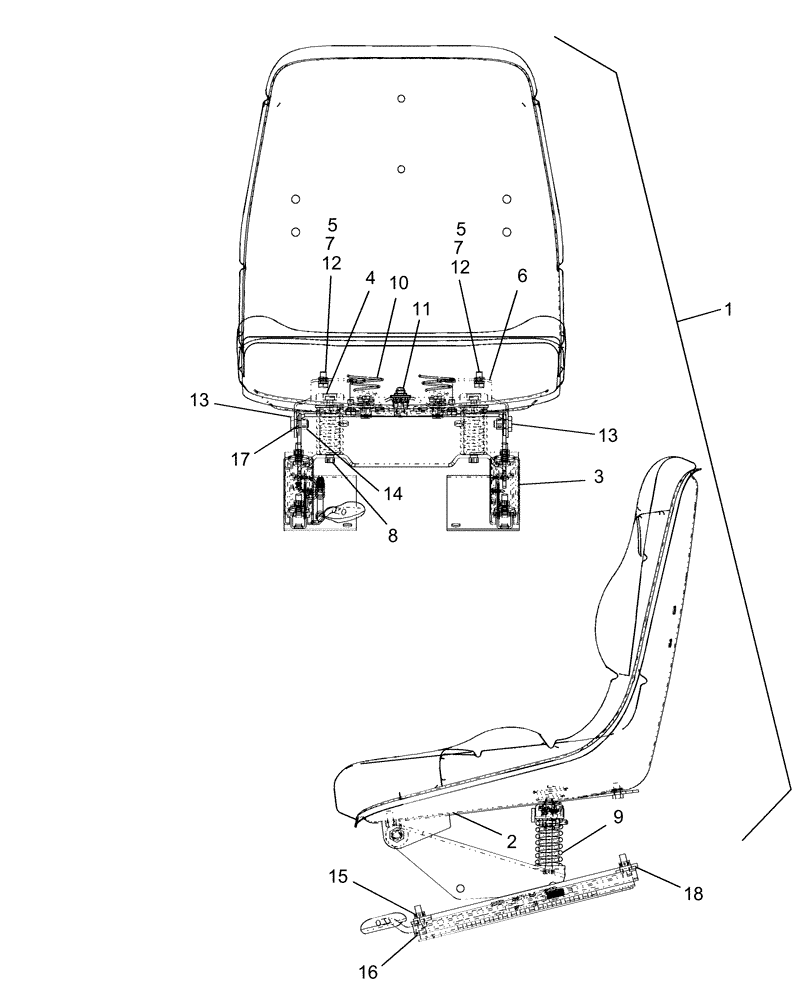

Запчасти Case IH D35 (10.09.01) - SEAT ASSY ON & ASN HBA006021 (10) - OPERATORS PLATFORM/CAB

1

86403086

DRIVER SEAT

1шт.

1

86404606

DRIVER SEAT

1шт.

2

86402445

DRIVER SEAT

Top

1шт.

3

86404178

SUSPENSION

1шт.

4

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

6

86400123

BUMPER

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

280736

NUT,5/16" - 18, Gr C

2шт.

9

86400124

SPRING

Compression

2шт.

10

86401230

SPRING

Conical

2шт.

11

86400227

SWITCH,Two Connectors, 90° Terminals

ASSY, Plunger SPST

1шт.

12

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

Flat

4шт.

13

86560540

BOLT

Shoulder

2шт.

14

231-4146

NUT,3/8"-16, GB

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

86403924

SLIDE

Package

1шт.

17

86560539

SPACER

2шт.

18

495-21044

WASHER,3/8"

4шт.
