Запчасти Case IH D29 (05M01) - MANIFOLD DIVERTER BLOCK - SBA340015500 (07) - HYDRAULIC SYSTEMS

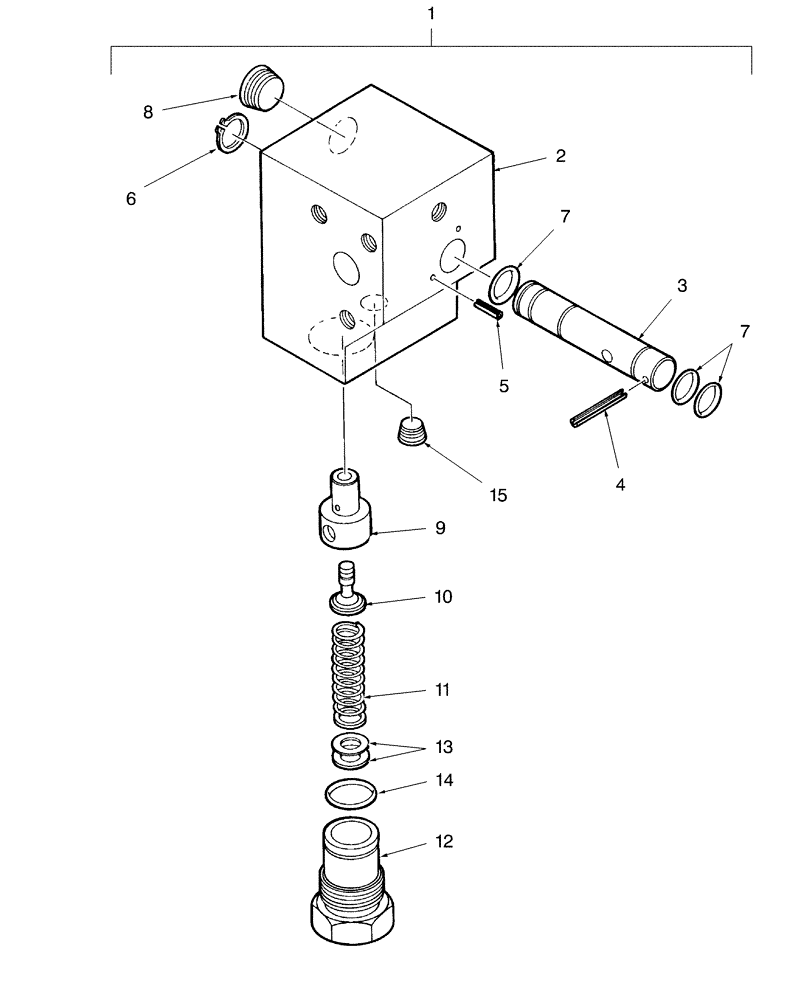

Схема запчастей Case IH D29 - (05M01) - MANIFOLD DIVERTER BLOCK - SBA340015500 (07) - HYDRAULIC SYSTEMS
1
9
4
2
8
12
10
5
11
6
14
13
3
15
7
7

Артикул

Название

Примечание

Количество

1

SBA340015500

CONTROL VALVE

Block, Manifold Diverter. Includes: Ref. 2 thru 15

1шт.

Supersedes to SBA340016660. Component parts are still available

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

SBA030300220

ROLL PIN

PIN, ROLL

1шт.

5

SBA030300310

ROLL PIN

PIN, ROLL

2шт.

6

SBA036100013

SNAP RING

Ring, Snap

1шт.

7

SBA052100100

O-RING

P10

3шт.

8

SBA064409005

PLUG,3/8"-18 NPTF

3/8"-18, NPTF

3шт.

9

SBA340293225

HOUSING

Kit, Relief Housing

1шт.

10

SBA340293226

HYDRAULIC VALVE

Valve, Poppet

1шт.

11

SBA340293330

SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

SBA340293230

KIT

Shim

1шт.

14

SBA052400180

O-RING

S18

1шт.

15

SBA064409006

PLUG,1/8" NPT

1шт.

Выбрано товаров: 16
