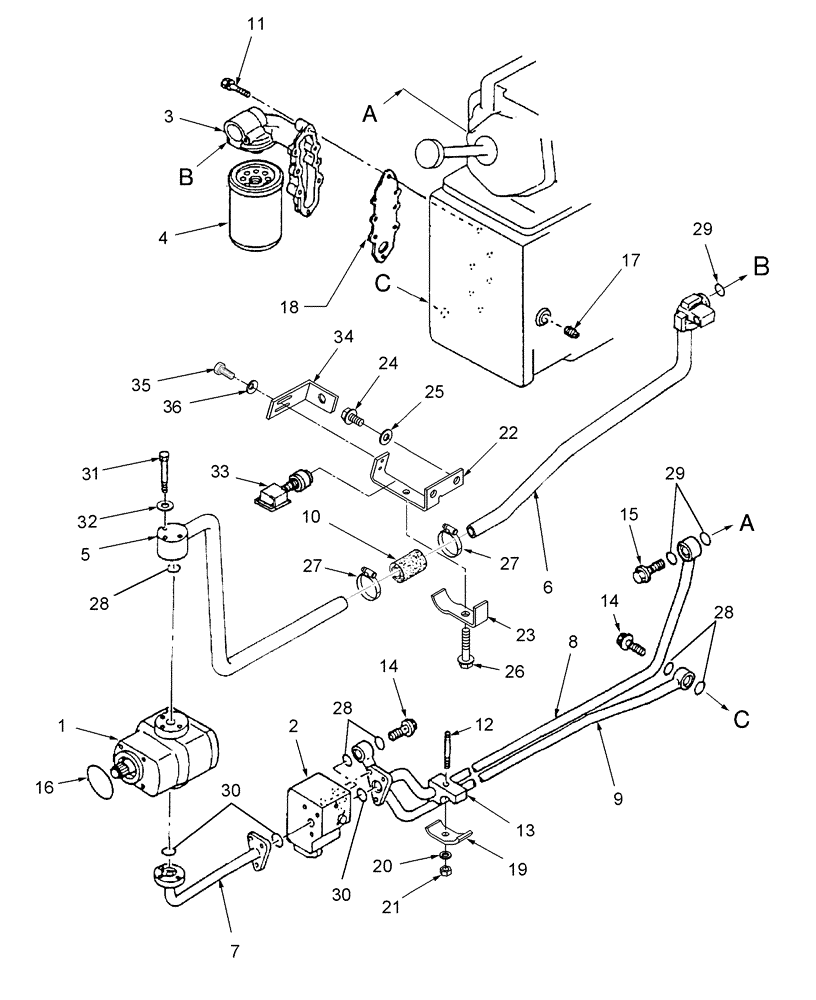

Запчасти Case IH D29 (05F01) - HYDRAULIC PUMP & PIPING (07) - HYDRAULIC SYSTEMS

1

SBA340450481

HYDRAULIC PUMP

Hydraulic System Pump Assy., D25,D29,D33

1шт.

1

SBA340450511

HYDRAULIC PUMP

Hydraulic System Pump Assy., DX25,DX29,DX33

1шт.

SBA340450511R

REMAN-HYD PUMP

DX25, DX29 S/N HBA0000516 & Aft., DX33 HBA000501 TO

1шт.

SBA340450511C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

SBA340015500

CONTROL VALVE

Assy./Manifold Diverter Block Refer to Fig. 05M01 for Breakdown

1шт.

Supersedes to SBA340016660. Component parts are still available

1шт.

2

SBA340016660

CONTROL VALVE

Manifold Diverter Block Refer to fig. 05M01A for Breakdown

1шт.

3

SBA340750260

BODY

Oil Filter, SBA011310640 Bolt Used

1шт.

4

SBA340500720

FILTER

Oil

1шт.

5

SBA340706580

RIGID TUBE

Pipe

1шт.

6

SBA340706590

TUBE

HYD, SBA011310640 Bolt Used

1шт.

7

SBA340706560

HYD TUBE

TUBE, HYD

1шт.

8

SBA340706603

HYD TUBE

TUBE, HYD

1шт.

9

SBA340706570

HYD TUBE

TUBE, HYD

1шт.

10

SBA398111120

HOSE

Rubber, D25, D29, D33

1шт.

10

SBA398480250

BANJO BOLT,1/2"

BOLT, BANJO, , DX25, DX29, DX33 1/2"

1шт.

11

SBA011510840

BOLT,M6 x 40mm

8шт.

12

SBA012110855

STUD,M8 x 55

1шт.

13

SBA398115860

SPACER

1шт.

14

SBA398480240

BANJO BOLT,3/8"

BOLT, BANJO, , PF 3/8"

2шт.

15

SBA398480250

BANJO BOLT,1/2"

BOLT, BANJO, 1/2"

1шт.

16

SBA052310700

O-RING

G70

1шт.

17

SBA064500040

PLUG

1шт.

18

SBA340990390

GASKET

1шт.

19

SBA399112180

CLAMP

HST Line

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

1шт.

21

825-1408

NUT,M8, Cl 8

1шт.

22

86526986

BRACKET

HYD Vacuum

1шт.

23

86526985

CLAMP

HYD Vacuum

1шт.

24

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Hex Flg Hd, CL 8.8, M8 x 1.25 x 16

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

3шт.

26

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

27

82012725

HOSE CLAMP,#44, M32-44

CLAMP, HOSE, #44, M32-44

2шт.

28

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

5шт.

29

SBA052310250

O-RING

3шт.

30

SBA052110200

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

3шт.

31

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

3шт.

32

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

M6 x 12 x 1.6

3шт.

33

86530877

SWITCH

Cruise

1шт.

34

86402616

BRACKET

Cruise Switch

1шт.

35

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

Screw

2шт.

36

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

Lock, Belleville, M4

2шт.
