Запчасти Case IH D29 (05E02) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #2 (07) - HYDRAULIC SYSTEMS

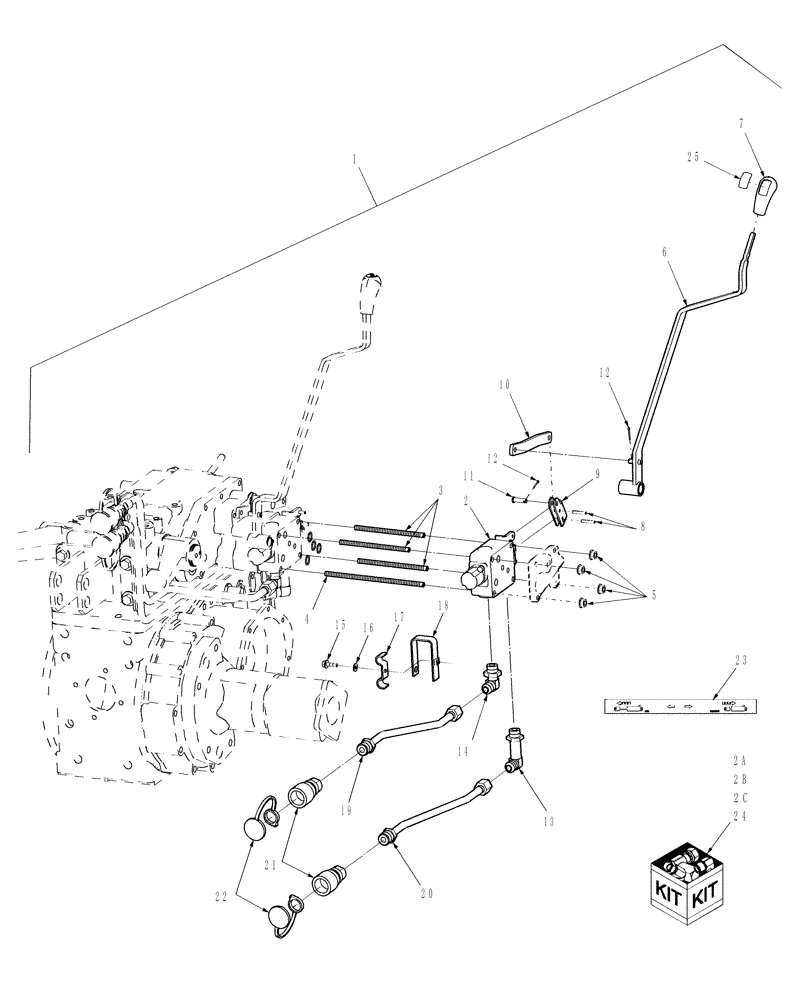

Схема запчастей Case IH D29 - (05E02) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #2 (07) - HYDRAULIC SYSTEMS
3
6
5
22
13
19
20
4
25
7
12
21
8
18
2b
24
10
14
9
2
2c
15
23
12
11
17
2a
16
1

Артикул

Название

Примечание

Количество

1

718347026

DIA KIT, ADD PROD

Single Spool Rear Kit, Remote Control Valve #2 {718347006, 718347016} Includes: Ref. 2 thru 23

1шт.

OW - Order Thru Wholegoods

1шт.

2

86403121

REMOTE CONTROL VALVE

Valve Assy., Remote. Includes: Ref. 2A thru 2C

1шт.

2a

86532885

KIT

Handle Bracket

1шт.

2b

86532884

KIT

Spring Center

1шт.

2c

86532883

SEAL KIT

KIT, SEALS

1шт.

3

86530931

STUD,M8 x 175, Cl 8.8

CL 8.8, M8 x 1.25 x 175

3шт.

4

86532717

STUD,M8 x 235, Cl 8.8

CL 8.8, M8 x 1.25 x 235

1шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

4шт.

6

86522853

LEVER

Remote 2 Includes: 86524680 Bushing

1шт.

7

86403811

KNOB

Remote 2, Wheat

1шт.

8

838-5526

LOCK PIN,M5 x 26, Slotted

Pin, Roll, M5 x 26, Slotted

2шт.

9

86524927

ROCKER ARM

Remote

1шт.

10

86522940

CONNECTING LINK

Link, Remote 2

1шт.

11

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

PIN, CLEVIS, 5/16" x 15/16" L

1шт.

12

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

13

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

90°

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90° Elbow, 3/4"-16 JIC x 3/4"-16 O-Ring

1шт.

15

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

WASHER, BELLEVILLE, M6

1шт.

17

86524859

CLAMP

Tube

1шт.

18

86524864

BRACKET

Assy., Remote 2

1шт.

19

86522964

TUBE,12.70 mm OD x 251, 64 mm L

Pipe, Rm2, Port B

1шт.

20

86522965

TUBE,12.70 mm OD x 200, 64 mm L

Pipe, Rm2, Port A

1шт.

21

256231

COUPLING, QUICK, FEM

Coupler Assy. Includes: 86528546 O-Ring

2шт.

22

5186723

DUST CAP,24mm, Black

Dust Black

2шт.

23

86532910

DECAL

Remote Valve

1шт.

24

86535818

SEAL KIT

KIT, SEALS

1шт.

25

86404551

DECAL

Remote 2

1шт.

Выбрано товаров: 29
