Запчасти Case IH D29 (03F02) - STEERING COLUMN, FIXED (06) - FRONT AXLE & STEERING

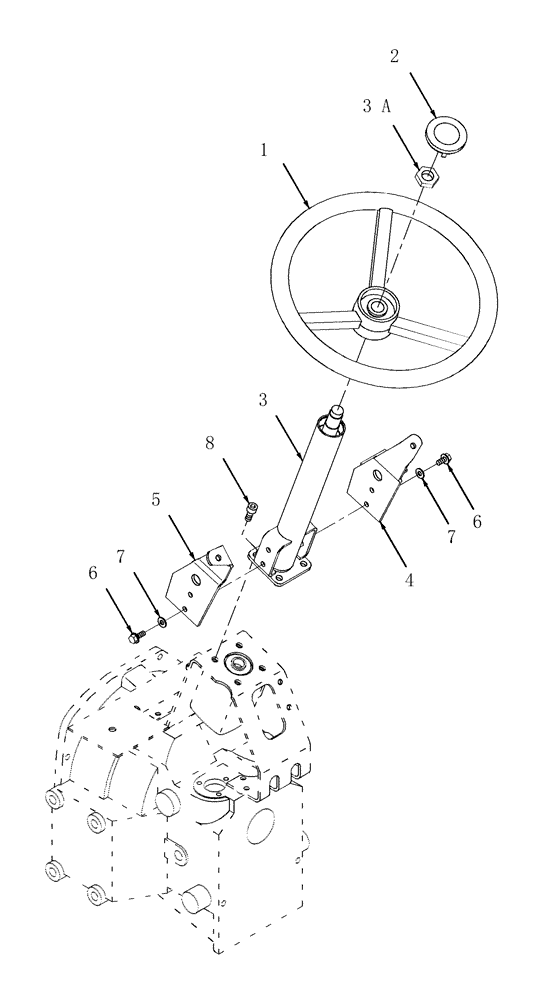

Схема запчастей Case IH D29 - (03F02) - STEERING COLUMN, FIXED (06) - FRONT AXLE & STEERING
6
3a
3
6
4
7
2
5
8
1
7

Артикул

Название

Примечание

Количество

1

9821708

STEERING WHEEL

Wheel, Steering

1шт.

2

86401649

EMBLEM CASE/IH

Cap, Steering Wheel. Includes: CIH Logo

1шт.

3

86524636

STEERING COLUMN

Column, Fixed. Includes: Ref. 3A

1шт.

3

86403101

STEERING COLUMN

Column, Fixed Includes: Ref. 3A

1шт.

Used On & ASN HBA0001525

1шт.

3a

130321

JAM NUT

Jam, G2, 13/16"-20

1шт.

4

86540910

SUPPORT

Rear Hood, D25, D29

1шт.

4

86543892

SUPPORT

Rear Hood, D33

1шт.

5

86522948

SUPPORT

Rear Hood, L.H.

1шт.

6

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

4шт.

8

86544072

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8, Full Thd

SCREW, Cap, HS, CL 8.8, M10 x 1.25 x 25

4шт.

Выбрано товаров: 12
