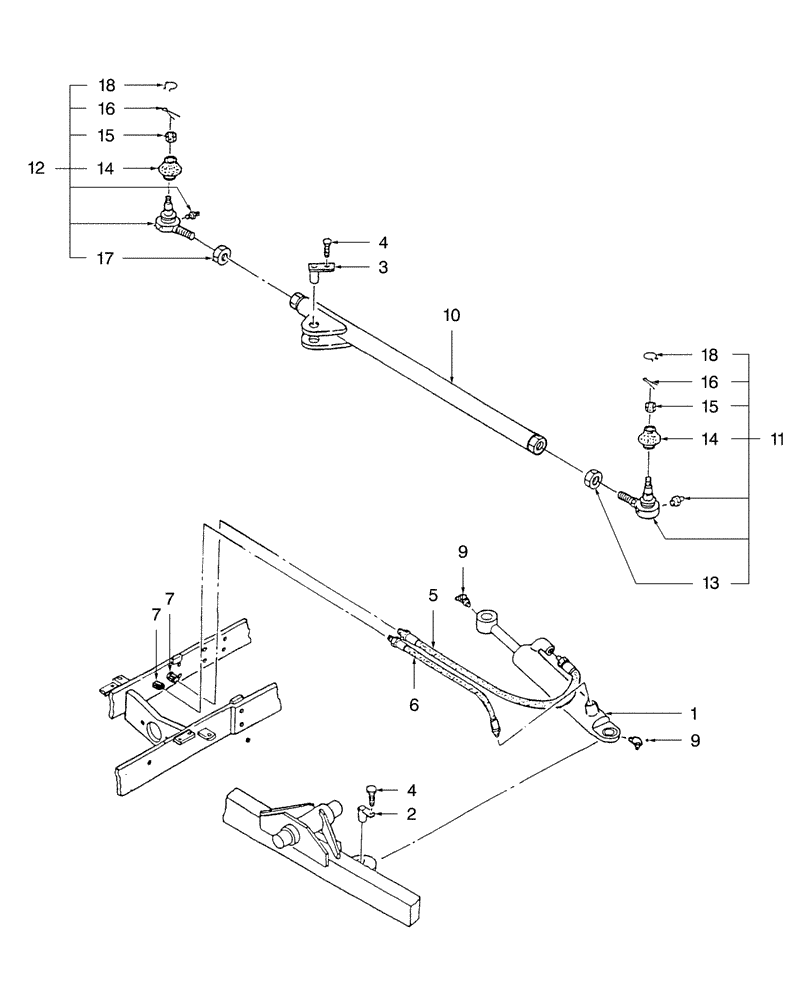

Запчасти Case IH D29 (03E01) - STEERING LINKAGE, W/2WD (06) - FRONT AXLE & STEERING

1

SBA344951820

CYLINDER

Refer to Fig. 03I01 for Components

1шт.

No Longer Serviced

1шт.

Replaced by SBA344952560, Components Still Serviced

1шт.

Used On & BSN Axle 2F31713

1шт.

1

SBA344952560

CYLINDER ASSY.

Cylinder, Refer to Fig. 03I01 for Components

1шт.

2

SBA399600080

PIN

1шт.

3

SBA399600110

PIN

1шт.

4

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

SCREW, CAPTIVE WASHER, Hex, M8 x 12, G5

2шт.

5

86575005

HOSE,6.35 mm ID x 420.00 mm

Oil 6.35 mm ID x 420.00 mm

1шт.

6

86575007

HOSE,6.35 mm ID x 295.00 mm

Oil 6.35 mm ID x 295.00 mm

1шт.

7

86400264

FITTING,9/16"-18 x M66.4 L

2шт.

9

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 45º, 1/8" NPT x 7/8" lg

1шт.

10

SBA334703980

CONNECTING LINK

Link

1шт.

11

SBA334800690

BALL JOINT

End, Tie Rod, L.H.

1шт.

12

SBA334800710

TRACK ROD END ASSY

End, Tie Rod, R.H.

1шт.

13

SBA334810110

NUT,M17 x 1.5, LH Thd

1шт.

14

SBA334810010

COVER

Dust

2шт.

15

SBA334810080

SLOTTED NUT,M12 x 1.25

NUT, SLOTTED, M12 x 1.25

2шт.

16

SBA030103025

COTTER PIN

Pin, Split

2шт.

17

SBA334810100

NUT,M17 x 1.5, RH Thd

1шт.

18

SBA334810201

SPRING

Band

2шт.
