Запчасти Case IH D29 (11A02) - ELECTRICAL - LEFT HAND SIDE - BSN HBA0001480 (06) - ELECTRICAL SYSTEMS

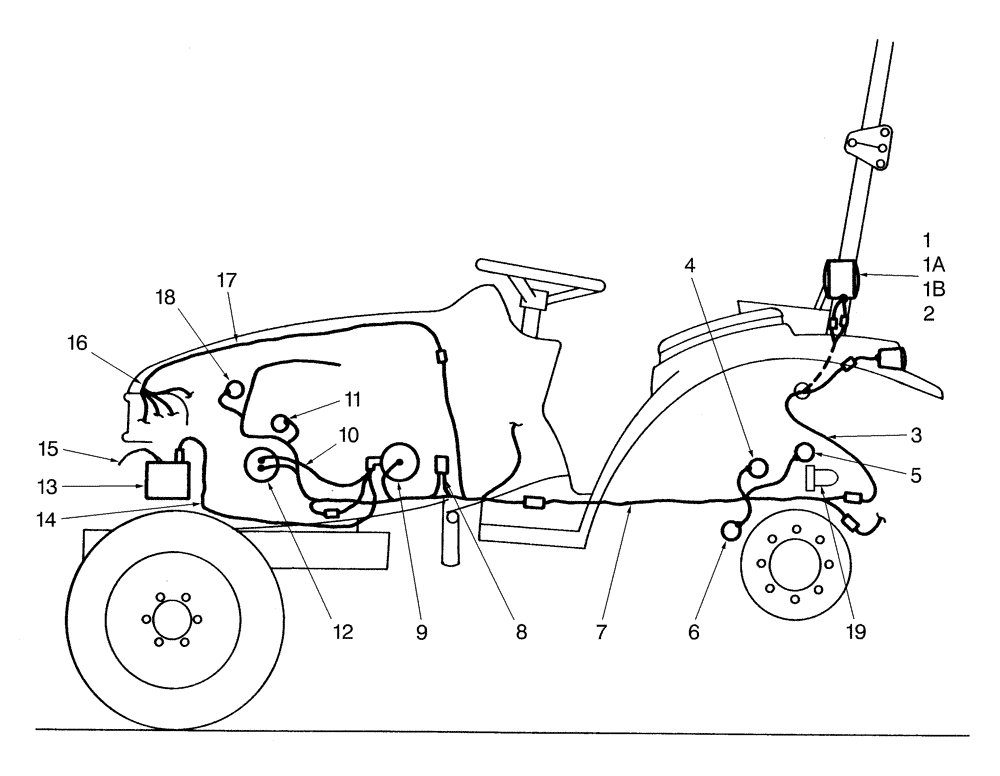

Схема запчастей Case IH D29 - (11A02) - ELECTRICAL - LEFT HAND SIDE - BSN HBA0001480 (06) - ELECTRICAL SYSTEMS
19
1a
16
4
5
14
15
9
8
10
1
17
1b
11
18
12
3
2
6
7
13

Артикул

Название

Примечание

Количество

1

86569710

FLASHER UNIT

Lamp Assy., Flasher, DX25,DX29,DX33

1шт.

1a

NS

NOT SERVICED

Bulb, DX25,DX29,DX33

1шт.

1b

86534295

LENS

- Amber, DX25,DX29,DX33

1шт.

2

86569716

FLASHER UNIT

Lamp Assy., L.H. Flasher, D25,D29,D33

1шт.

3

86569721

WIRE HARNESS

Harness, L.H. Fender, D25,D29,D33

1шт.

3

86569713

WIRE HARNESS

Harness, L.H. Fender, DX25,DX29,DX33

1шт.

4

86531140

SWITCH

Mid-PTO Safety

1шт.

5

86536901

SWITCH

Range Gear Safety

1шт.

6

SBA385201260

SWITCH

Rear PTO Safety

1шт.

7

86569723

WIRE HARNESS

Harness, Rear, D25,D29,D33

1шт.

7

86569715

WIRE HARNESS

Harness, Rear, DX25,DX29,DX33

1шт.

8

92277

FUSE,30 Amp

1шт.

9

SBA185816340

SOLENOID

Switch, Starter

1шт.

10

86569720

WIRE HARNESS

Harness, Main, D25,D29,D33

1шт.

10

86569711

WIRE HARNESS

Harness, Main, DX25,DX29,DX33

1шт.

11

SBA385720101

SENSOR

Switch, Temperature Sender, OAL=1.733", D25,D29,D33

1шт.

11

SBA385720070

SENSOR

Switch, Temperature Sender, DX25,DX29,DX33

1шт.

12

SBA185046320

ALTERNATOR

Assy., Refer To Fig. 11C1 For Details

1шт.

12

SBA185046320R

REMAN-ALTERNATOR

D25, DX25, D29, DX29, D33, DX33

1шт.

12

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

12

SBA185046320GV

ALTERNATOR

Value

1шт.

13

F920DSW

WET BATTERY

Refer to Fig. 11B1 For Details

1шт.

14

86533167

CABLE

Positive A

1шт.

15

86528253

NEG BATTERY CABLE

CABLE, BATTERY (NEG), A

1шт.

16

9847313

BULB,#894, 12V, 37.5W

Halogen, (2) D25,D29,D33, (4) DX25,DX29,DX33 #894, 12V, 37.5W

2/4шт.

17

86528624

WIRE HARNESS

Harness, Hood

1шт.

18

SBA185246060

SENDER UNIT

Sender, Oil Pressure

1шт.

19

86531143

WIRE HARNESS

Mid-PTO Safety Switch Jumper Connector, 9 x 3

1шт.

20

86404000

HARNESS

ICU Jumper. Connects Main Harness to Instrument Cluster

1шт.

Not Illustrated

1шт.

Выбрано товаров: 30
