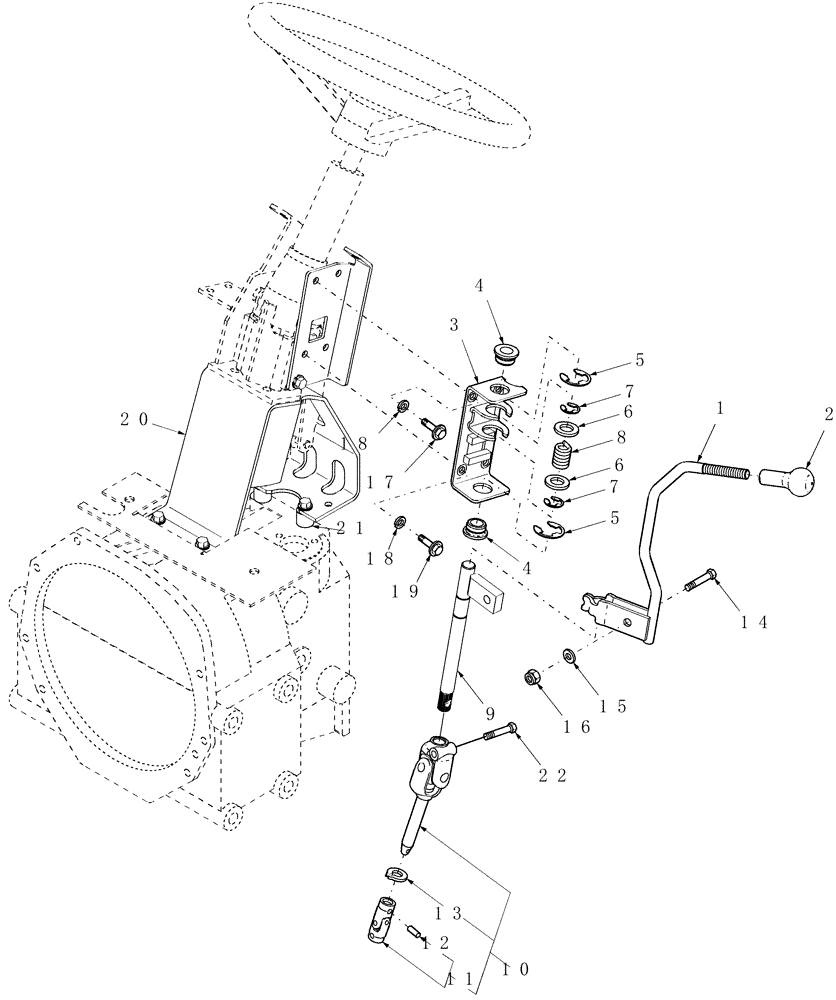

Запчасти Case IH D29 (07J04) - COLUMN SHIFT, 9 X 3 W/LIVE REAR PTO (03) - TRANSMISSION

1

86524761

LEVER

Lever Assy.

1шт.

2

SBA398180880

KNOB

Grip

1шт.

3

86524953

BRACKET

Bracket Assy.

1шт.

4

86524958

BUSHING

Bushing

2шт.

5

V36698

SNAP RING,.825"

2шт.

6

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

7

505291

LOCKING RING,#62, .480" Dia, E-Type

2шт.

8

86524778

SPRING

Spring, Compression

1шт.

9

86524708

SHAFT

Shaft Assy.

1шт.

10

SBA324040040

CONTROL SHAFT

Link Assy. Includes: Ref. 11 thru 13

1шт.

11

SBA398380240

UNIVERSAL JOINT

Joint

1шт.

12

SBA399611200

PIN

Pin

2шт.

13

370001

SNAP RING,M22, External

2шт.

14

86540990

SPECIAL BOLT,Hex, M10 x 42, Cl 8.8

1шт.

15

86543700

WASHER

Washer, M10

1шт.

16

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

20

86519840

SUPPORT

Support, Column

1шт.

21

86530983

SPACER

Spacer

2шт.

22

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
