Запчасти Case IH D29 (07F01) - REAR TRANSMISSION GEARS, W/9 X 3 (03) - TRANSMISSION

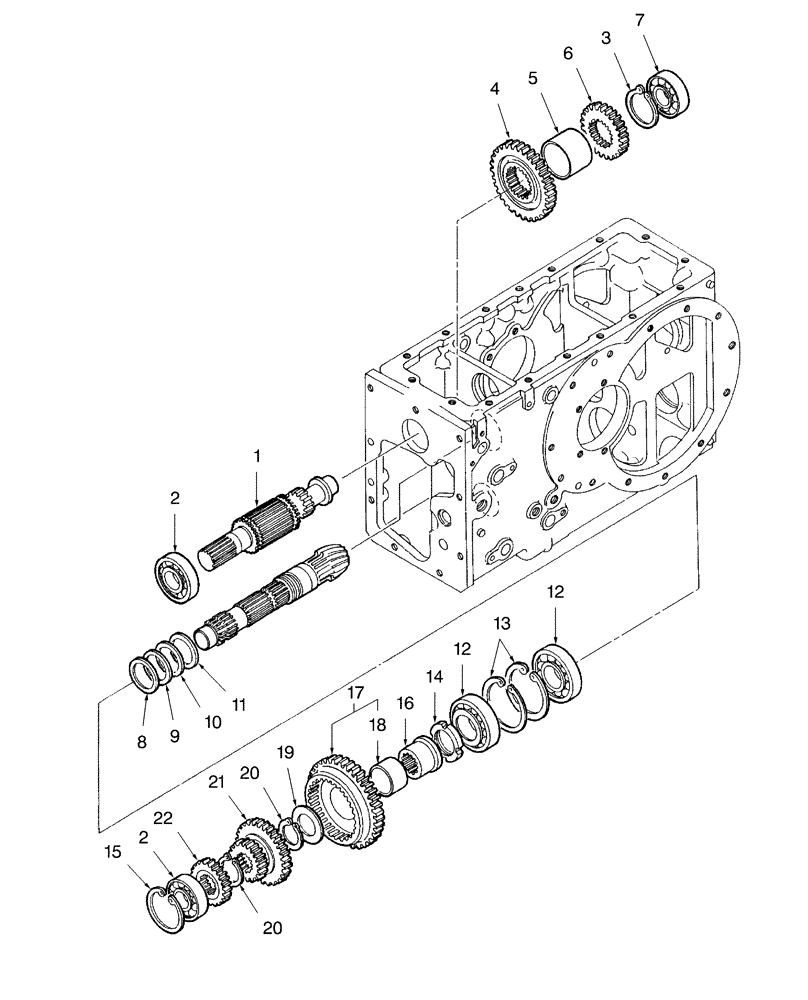

Схема запчастей Case IH D29 - (07F01) - REAR TRANSMISSION GEARS, W/9 X 3 (03) - TRANSMISSION
11
5
9
19
8
14
7
16
13
2
21
12
20
22
10
3
20
2
4
6
1
12
18
17
15

Артикул

Название

Примечание

Количество

1

SBA322520581

MAIN SHAFT

Shaft, Main

1шт.

2

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

Bearing, Ball

2шт.

3

370006

SNAP RING,M40, Ext

RING, SNAP, M40, Ext

1шт.

4

SBA322323590

GEAR

Fixing, High Range

1шт.

5

SBA399232850

COLLAR

1шт.

6

SBA322323540

GEAR

Fixing, Mid Range

1шт.

7

SBA040156204

BALL BEARING,20mm ID x 47mm OD x 14mm W

BEARING, BALL

1шт.

8

SBA199281210

SHIM,0.1mm Thk

1шт.

9

SBA199281220

SHIM,0.2mm Thk

1шт.

10

SBA199280490

SHIM,0.5mm Thk

(.020") 0.5mm Thk

1шт.

11

SBA199260040

THRUST WASHER

Washer, Thrust

1шт.

12

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

BEARING, ROLLER, TAPERED

2шт.

13

370012

RING,M62, Internal

Snap, Int, M62

2шт.

13

370012

RING,M62, Internal

Snap, Int, M62

1шт.

Used With SBA322017562 Casing Assy

1шт.

14

SBA399370760

NUT

1шт.

15

33915

SNAP RING,2.062", Int, #206

Ring, Snap, Int, 2.050"

1шт.

16

SBA322611180

COUPLING

1шт.

17

SBA322031460

GEAR SET

Gear, Assy.

1шт.

18

SBA398510230

DRIVE BUSHING

Bushing

1шт.

19

SBA399260940

THRUST WASHER

Washer, Thrust

1шт.

20

SBA036100028

SNAP RING

Ring, Snap

2шт.

21

SBA322360840

GEAR

Slide B

1шт.

22

SBA322323550

GEAR

Fixing A, W/FWD

1шт.

Выбрано товаров: 24
