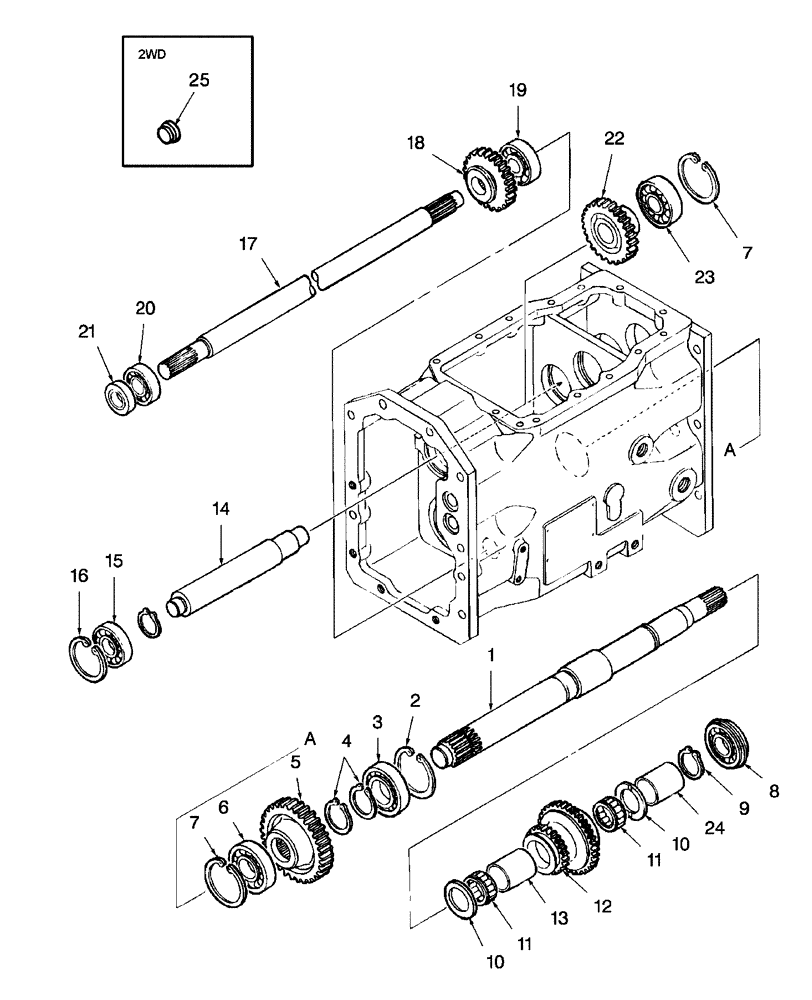

Запчасти Case IH D29 (07D04) - GEARS - FRONT TRANSMISSION, W/9 X 3 & W/FWD (03) - TRANSMISSION

1

SBA322570813

COUNTERSHAFT

Shaft, Counter, Single PTO

1шт.

2

86536801

SNAP RING,M55, Int

RING, SNAP, M55, Int

1шт.

3

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

BEARING, BALL

1шт.

4

370003

SNAP RING,M30, External

Ring, Snap, Ext, M30

2шт.

5

SBA322323530

GEAR

Fixing, A, 30T

1шт.

6

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

Bearing, Ball

1шт.

7

33915

SNAP RING,2.062", Int, #206

Ring, Snap, Int, 2.050"

2шт.

8

SBA040109051

BALL BEARING

Bearing, Ball

1шт.

9

SBA036100032

SNAP RING

Ring, Snap

1шт.

10

SBA399260861

THRUST WASHER

Washer, Thrust

2шт.

11

SBA042209028

NEEDLE BEARING

BEARING, NEEDLE

2шт.

12

SBA322381361

GEAR

Counter, B

1шт.

13

SBA399233711

COLLAR

1шт.

14

SBA322560300

SHAFT

Gear, Back

1шт.

15

279592

BALL BEARING,20mm ID x 47mm OD x 14mm W

Bearing, Ball

1шт.

16

300647

SNAP RING,M47, Int

RING, SNAP, M47, Int

1шт.

17

SBA322512310

SHAFT

Drive, FWD

1шт.

18

SBA322341310

GEAR

Slide A, FWD

1шт.

19

SBA040106303

BALL BEARING

Bearing, Ball

1шт.

20

SBA040106004

BALL BEARING

BEARING, BALL

1шт.

21

SBA050202220

SEAL

Oil, Seals FWD, Shaft Externally

1шт.

22

SBA322371010

GEAR

Counter A

1шт.

23

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, BALL

1шт.

24

SBA399235060

COLLAR

1шт.

25

SBA322140650

COVER

Seal, 2WD

1шт.
