Запчасти Case IH D29 (07C01) - FRONT TRANSMISSION CASE & SHIFTER, W/9 X 3 (03) - TRANSMISSION

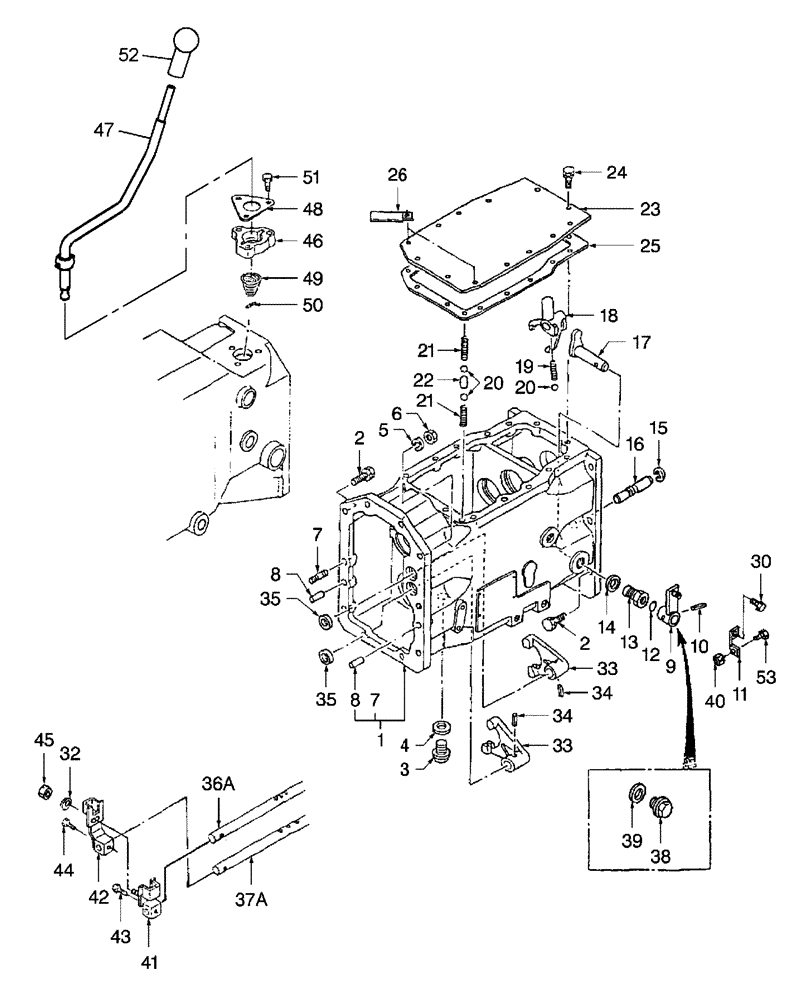

Схема запчастей Case IH D29 - (07C01) - FRONT TRANSMISSION CASE & SHIFTER, W/9 X 3 (03) - TRANSMISSION
7
11
6
8
34
10
47
24
25
48
14
37a
44
21
18
53
23
51
26
42
9
21
43
39
7
34
1
12
35
2
3
52
38
32
13
30
40
36a
2
41
20
33
20
17
45
4
5
8
50
15
35
33
16
22
19
46
49

Артикул

Название

Примечание

Количество

1

SBA322017552

CASING

Case Assy. Includes: Ref. 7, 8

1шт.

2

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

SCREW, CAPTIVE WASHER, Hex, M10 x 1.5 x 30, G5

13шт.

3

SBA064600016

PLUG

M16

1шт.

4

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal, Washer

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

SBA021010010

NUT,M10 x 1.25

1шт.

7

SBA012111030

STUD,M10 x 30

1шт.

8

SBA030501025

BALL STUD,M10 x 25 L

DOWEL, , Pin, Knock M10 x 25 L

2шт.

9

SBA324105980

LEVER

Change Lever, W/FWD

1шт.

10

SBA030300632

SLOTTED PIN,M6 x 32

PIN, SLOTTED, M6 x 32

1шт.

12

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

13

SBA324510400

GUIDE

Shift

1шт.

14

SBA025100020

SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk

WASHER, SEALING

1шт.

15

SBA036800012

SNAP RING

Ring, Snap

1шт.

16

SBA324312210

ROD

Shifter Rod, FWD

1шт.

17

SBA324200890

ARM

Shift Arm

1шт.

18

SBA324411680

SHIFTER FORK

FORK, SHIFTER, FWD

1шт.

19

SBA398210280

SPRING

1шт.

20

V34014

BALL

Steel

3шт.

21

SBA398210460

SPRING

2шт.

22

SBA324560050

PIN

1шт.

23

SBA322213120

COVER

Case

1шт.

24

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5

14шт.

25

SBA324990241

GASKET

1шт.

26

SBA399112980

CLAMP

2шт.

33

SBA324411580

SHIFTER FORK

FORK, SHIFTER

2шт.

34

SBA030300625

PIN

Spring

2шт.

35

SBA050203115

SEAL,28mm ID x 40mm OD x 8mm Thk

SEAL, OIL

2шт.

36a

SBA324312700

ROD

Shifter Rod, 2 & R

1шт.

37a

SBA324312690

ROD

Shifter Rod, 1 & 3

1шт.

38

SBA064700020

PLUG

W/2WD

1шт.

39

SBA025100020

SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk

WASHER, SEALING, W/2WD

1шт.

40

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

41

SBA324202161

ARM

Shift Arm, 2-R

1шт.

42

SBA324202150

ARM

Shift Arm, 1-3

1шт.

43

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 25, Cl 8.8

1шт.

44

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 35, Cl 8.8

1шт.

45

SBA022400006

NUT

M6

1шт.

46

SBA324510670

GUIDE

Shift

1шт.

47

SBA324106120

LEVER

Change Lever

1шт.

48

SBA324610850

PLATE

Cover, Shift

1шт.

49

SBA398214840

SPRING

1шт.

50

SBA030103025

COTTER PIN

Pin, Split

1шт.

51

SBA011510840

BOLT,M6 x 40mm

3шт.

52

SBA398180880

KNOB

Grip

1шт.

53

SBA011310630

BOLT

M6 x 30

1шт.

Выбрано товаров: 46
