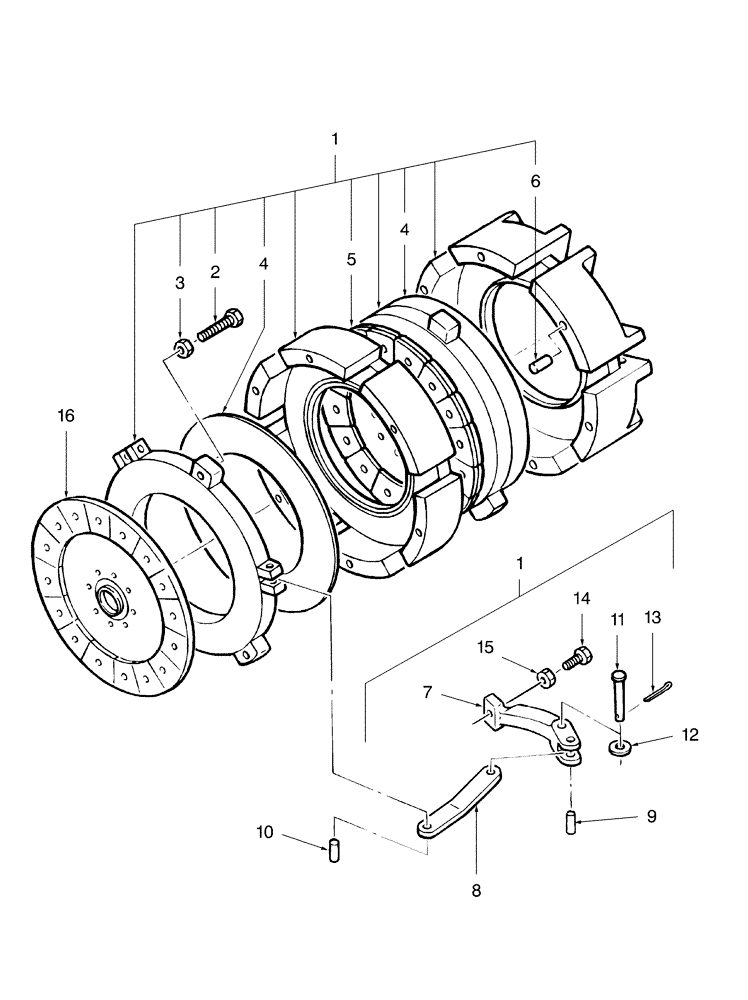

Запчасти Case IH D29 (07B01) - DOUBLE CLUTCH ASSY., 9 X 3 W/LIVE REAR PTO (03) - TRANSMISSION

1

SBA320040703

CLUTCH

Clutch Assy., Double. Includes: Ref. 2 thru 15

1шт.

2

SBA320460980

BOLT

Bolt

3шт.

3

SBA320460990

NUT

Nut

3шт.

4

SBA320460970

SPRING

Diaphragm, Spring

2шт.

5

SBA320400262

DISC

Disc, PTO

1шт.

6

SBA320461000

DOWEL

Pin

3шт.

7

SBA320460900

LEVER

Lever, Release

3шт.

8

SBA320460960

CONNECTING LINK

Link, Release Sub

3шт.

9

SBA320460930

PIN

Pin, Release, Lever

3шт.

10

SBA320460910

PIN

Pin, Release, Lever

3шт.

11

SBA320460920

PIN

Pin, Release, Lever

3шт.

12

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

3шт.

13

SBA030102016

COTTER PIN

Pin, Split

3шт.

14

SBA320460940

BOLT

Bolt, Adjusting

3шт.

15

SBA320460950

NUT

Nut, Adjusting Bolt

3шт.

16

SBA320400492

CLUTCH PLATE

Disc, Transmission

1шт.

16

SBA320400492R

REMAN-CLUTCH PLATE

D29

1шт.

16

SBA320400492C

CORE-CLUTCH PLATE

Return Number

1шт.

16

SBA320400493R

REMAN-CLUTCH PLATE

Sub for SBA320400493R

1шт.

16

SBA320400493C

CORE-CLUTCH PLATE

Return Number

1шт.
