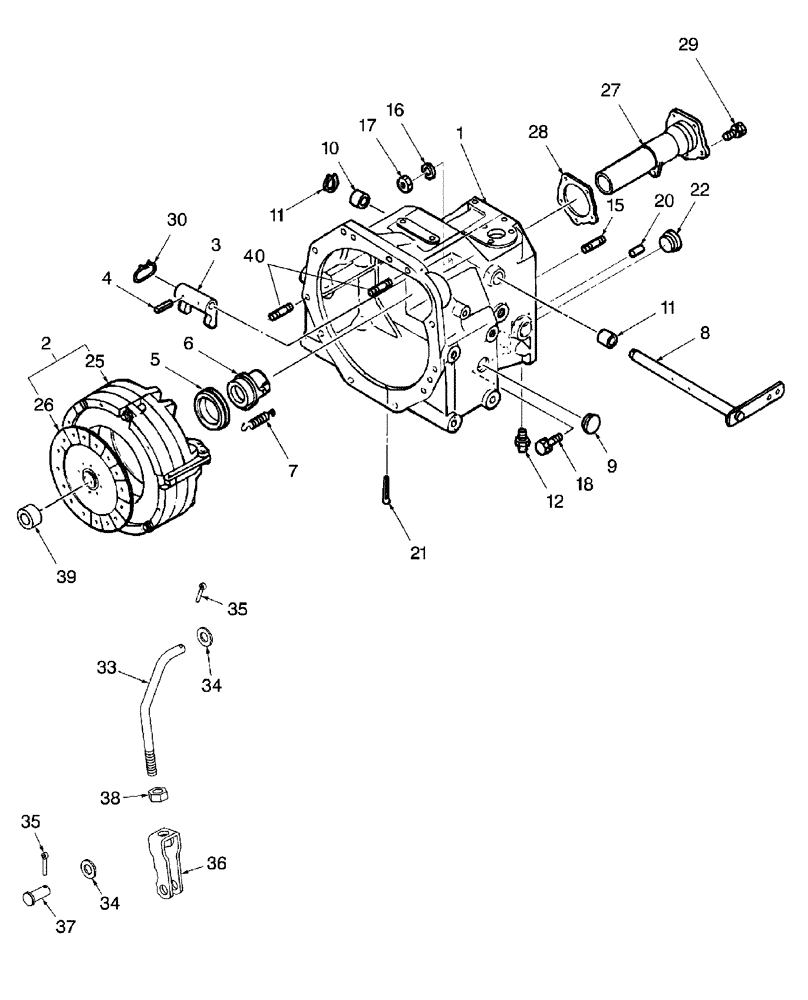

Запчасти Case IH D29 (07A01A) - CLUTCH & CLUTCH CASE, 9 X 3 W/LIVE REAR PTO (03) - TRANSMISSION

1

SBA320111451

SUMP

Case, Clutch, Double

1шт.

2

SBA320040693

CLUTCH

Clutch Assy., Double

1шт.

3

SBA320260150

FORK

Fork, Clutch, Double

1шт.

4

SBA030300632

SLOTTED PIN,M6 x 32

2шт.

5

SBA398560340

BEARING ASSY,55mm ID x 87.1mm OD x 55.12mm W

Bearing, Release, Double

1шт.

6

SBA320310380

HUB

Hub, Release, Double

1шт.

7

SBA398210070

SPRING

Spring

1шт.

8

SBA320201030

SHAFT

Shaft, Clutch

1шт.

9

SBA398110010

COVER

Rubber

2шт.

10

SBA398510010

DRIVE BUSHING

Bushing

2шт.

11

11066676

SNAP RING,M18, Ext

1шт.

12

SBA060610000

LUBE NIPPLE,M6 x .075

2шт.

15

SBA012111030

STUD,M10 x 30

1шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

SBA021010010

NUT,M10 x 1.25

1шт.

18

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

3шт.

20

SBA030500820

PIN

Pin, Dowel

2шт.

21

SBA030104020

PIN

Pin, Split

1шт.

22

SBA322140650

COVER

Cover, Seal, W/2WD

1шт.

25

SBA320040703

CLUTCH

Clutch Assy., Double

1шт.

26

SBA320400492

CLUTCH PLATE

Disc, Transmission

1шт.

26

SBA320400492R

REMAN-CLUTCH PLATE

D29

1шт.

26

SBA320400492C

CORE-CLUTCH PLATE

Return Number

1шт.

26

SBA320400493R

REMAN-CLUTCH PLATE

Reman for SBA320400492R

1шт.

26

SBA320400493C

CORE-CLUTCH PLATE

Return Number

1шт.

27

SBA320180460

RETAINER

Retainer, Double

1шт.

28

SBA320990140

GASKET

Gasket

1шт.

29

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

5шт.

30

SBA398230020

RETAINING WIRE

Wire

2шт.

33

86530918

ROD

Rod, W/9 x 3

1шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

35

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

36

86530920

CLEVIS,M10 x 1.5

Clevis Assy.

1шт.

37

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

1шт.

38

825-1410

NUT,M10, Cl 8

1шт.

39

SBA040116001

BALL BEARING

Bearing, Ball

1шт.

40

86533693

STUD,M10 x 47, Cl 8.8

2шт.
