Запчасти Case IH D29 (07A01) - CLUTCH & CLUTCH CASE, W/9 X 3 (03) - TRANSMISSION

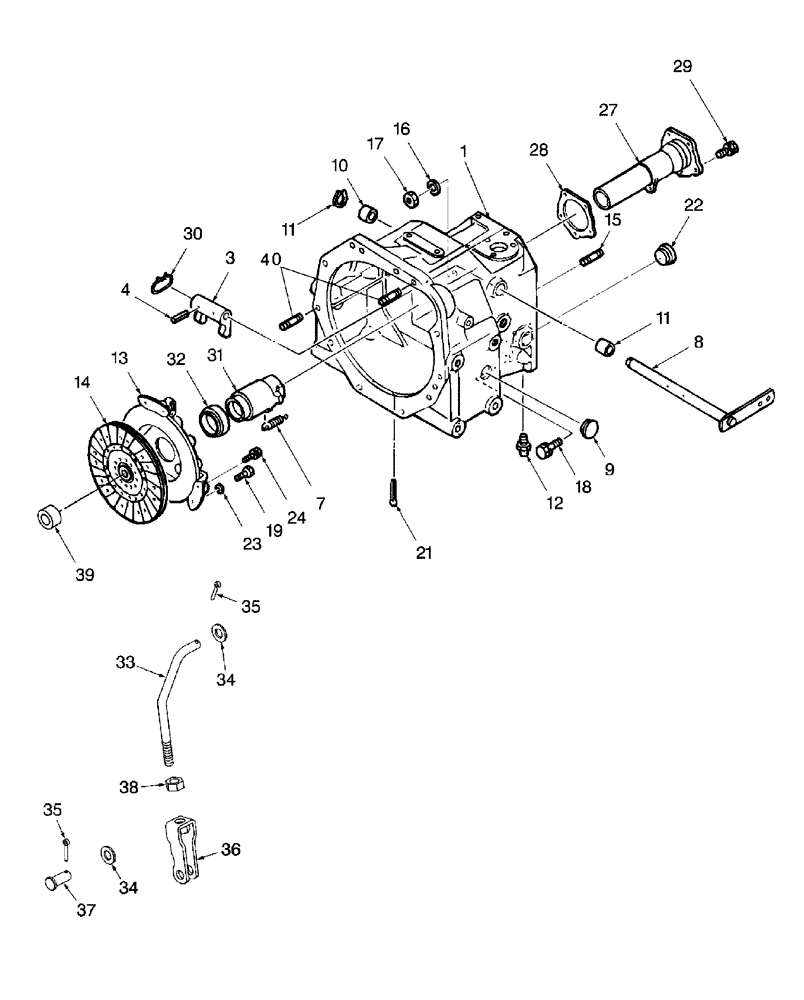

Схема запчастей Case IH D29 - (07A01) - CLUTCH & CLUTCH CASE, W/9 X 3 (03) - TRANSMISSION
18
23
11
33
40
31
32
22
10
1
35
4
29
16
39
34
37
9
36
27
11
3
34
19
15
13
30
21
17
28
24
8
7
12
14
38
35

Артикул

Название

Примечание

Количество

1

SBA320111401

CASE

Case, Clutch, Single

1шт.

3

SBA320260140

FORK

Fork, Clutch, Single

1шт.

4

SBA030300632

SLOTTED PIN,M6 x 32

2шт.

7

SBA398210070

SPRING

Spring

1шт.

8

SBA320201000

SHAFT

Shaft, Clutch

1шт.

9

SBA398110010

COVER

Rubber

2шт.

10

SBA398510010

DRIVE BUSHING

Bushing

2шт.

11

11066676

SNAP RING,M18, Ext

1шт.

12

SBA060610000

LUBE NIPPLE,M6 x .075

2шт.

13

SBA320450011

CLUTCH PLATE

Plate, Pressure, Single, D25,D29

1шт.

13

SBA320450011R

REMAN-CLUTCH PLATE

D25 PIN # HBA0001008 & Aft., D29 PIN #HBA0001022 & After

1шт.

13

SBA320450011C

CORE-CLUTCH PLATE

Return Number

1шт.

13

SBA320450230

CLUTCH, PRESSURE PLA

Plate, Pressure, Single, D33

1шт.

13

SBA320450230R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 18 Finger Diaphram, D33

1шт.

13

SBA320450230C

CORE-CLUTCH PLATE

Return Number

1шт.

13

SBA320450231R

REMAN-CLUTCH PLATE

D33 Case IH Compact Tractor - PIN # HBA0001020 & Above, Plate, Pressure, Single (2/01-), 15 Finger Diaphram, Reman for New PN SBA320450230

1шт.

13

SBA320450231C

CORE-CLUTCH PLATE

Return Number

1шт.

14

SBA320400212

DISC

Disc, Single, D25, D29

1шт.

14

SBA320400212R

REMAN-CLUTCH DISC

Disc, Single, D25, D29

1шт.

14

SBA320400212C

CORE-CLUTCH DISC

Return Number

1шт.

14

SBA320400530

DISC

Disc, Single, D33

1шт.

14

SBA320400530R

REMAN-CLUTCH DISC

Disc, Single, D33

1шт.

14

SBA320400530C

CORE-CLUTCH DISC

Return Number

1шт.

15

SBA012111030

STUD,M10 x 30

1шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

SBA021010010

NUT,M10 x 1.25

1шт.

18

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

3шт.

19

SBA399430690

BOLT

Bolt, Shoulder

3шт.

21

SBA030104020

PIN

Pin, Split

1шт.

22

SBA322140650

COVER

Cover, Seal, W/2WD

1шт.

23

E630153S71

LOCK WASHER,M8

3шт.

24

SBA011510816

BOLT

Bolt, M8 x 16

3шт.

27

SBA320180450

RETAINER

Retainer, Single

1шт.

28

SBA320990140

GASKET

Gasket

1шт.

29

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

5шт.

30

SBA398230020

RETAINING WIRE

Wire

2шт.

31

SBA320310390

HUB

Hub, Release, Single, D25,D29

1шт.

31

SBA320310370

HUB

Hub, Release Single, D33

1шт.

32

SBA398560120

BEARING ASSY,45 mm ID x 73 mm OD x 16 mm W

Bearing, Release, Single, D25,D29

1шт.

32

SBA398560840

BEARING ASSY

Bearing, Release, Single, D33

1шт.

33

86530918

ROD

Rod, W/9 x 3

1шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

35

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

36

86530920

CLEVIS,M10 x 1.5

Clevis Assy.

1шт.

37

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

1шт.

38

825-1410

NUT,M10, Cl 8

1шт.

39

SBA040116001

BALL BEARING

Bearing, Ball

1шт.

40

86533693

STUD,M10 x 47, Cl 8.8

2шт.

Выбрано товаров: 48
