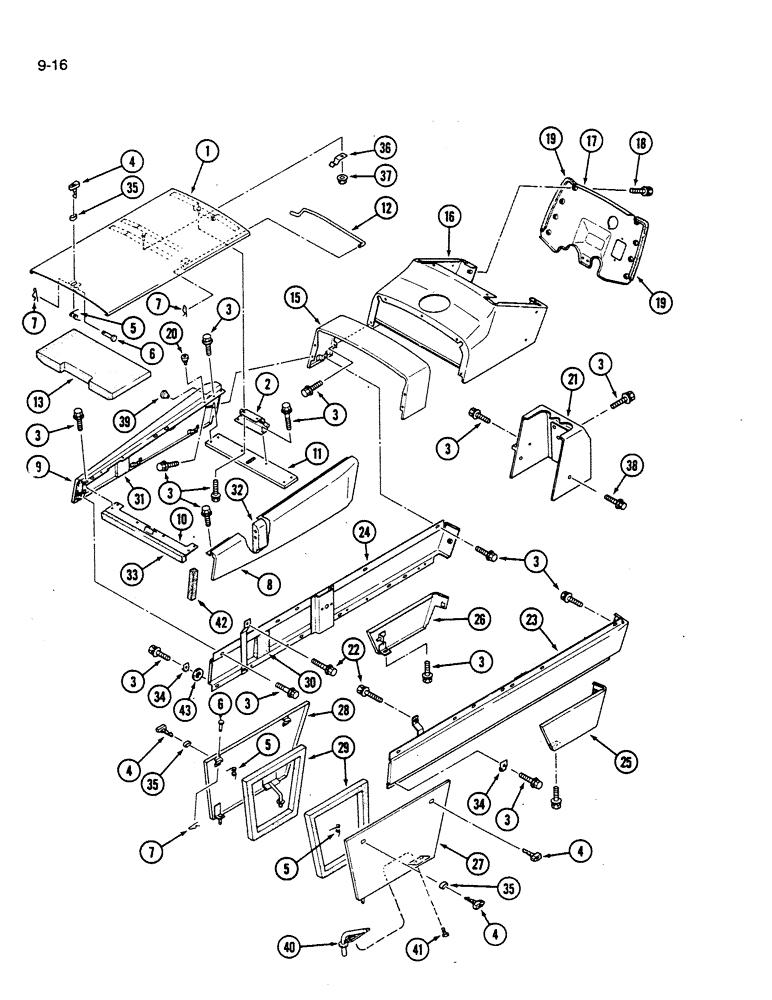

Запчасти Case IH 275 (9-16) - HOOD, PANELS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1961868C1

HOOD

- engine

1шт.

2

1961869C1

HINGE

- hood

1шт.

3

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16

39шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

39шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

39шт.

4

1961870C1

LEVER

LATCH - hook

5шт.

5

1961865C1

VALVE SPRING

SPRING - hook, latch

5шт.

6

1962995C1

AXLE PIN

PIN - clevis, M6 x 20 mm

5шт.

7

1269734C1

AXLE PIN

PIN - hair

6шт.

8

1961867C1

COVER ASSY

COVER - engine, upper left

1шт.

9

1961871C1

COVER ASSY

COVER - engine, upper left

1шт.

10

1961872C1

BRACKET

- hood support, front

1шт.

11

1961873C1

BRACKET

- hood support, front

1шт.

12

1961874C1

ROD

- hood

1шт.

13

1962977C2

CUSHION ASSY.

CUSHION - rubber

1шт.

15

1961875C1

COVER ASSY

COVER - rear

1шт.

16

1961876C1

BODY

COVER - fuel tank

1шт.

17

1961877C1

COVER ASSY

COVER - console, rear

1шт.

18

1961864C1

BOLT (SPREADER),M6 x 1 x 16mm

BOLT - special, with lock washer and flat washer

8шт.

19

1961861C1

COVER ASSY

SEAL - edge, rubber

2шт.

20

1961863C1

CUSHION ASSY.

CUSHION - hood, rubber

2шт.

21

1961878C1

COVER ASSY

COVER - console, lower

1шт.

22

815-8020

BOLT - hex, M8 x 20 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

6шт.

23

1961879C1

COVER ASSY

COVER - side, left

1шт.

24

1961880C1

COVER ASSY

COVER - side, right

1шт.

25

1961881C1

COVER

SHEET - side, left rear

1шт.

26

1961882C1

COVER

SHEET - side, right rear

1шт.

27

1961883C1

COVER

SHEET - side, left front

1шт.

28

1961884C1

COVER

SHEET - side, right front

1шт.

29

1962978C1

CUSHION ASSY.

CUSHION - side sheet

2шт.

30

1961856C1

CUSHION ASSY.

CUSHION - foam, 90 x 60 x 20 mm

2шт.

31

1961857C1

CUSHION ASSY.

CUSHION - foam, 110 x 60 x 15 mm

1шт.

32

1961858C1

CUSHION ASSY.

CUSHION - foam

1шт.

33

1961859C1

CUSHION ASSY.

CUSHION - foam, 400 mm long

1шт.

34

1961866C2

BRACKET

- mounting

4шт.

35

1961860C1

CUSHION ASSY.

CUSHION - latch

3шт.

36

1962979C1

CLIP

- hood rod

1шт.

37

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

38

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 1 x 20 mm, full thread

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

39

1963547C1

GROMMET

PLUG - cover (Replaces 1961897C1)

1шт.

40

1963259C1

SUPPORT ASSY.

SUPPORT - side sheet

2шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

42

NSS

NOT SOLD SEPARAT

SEAL - engine cover, 70 mm long (Order 73228C2 and, Serial Range: cut-length)

2шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
