(9-14) - FRONT END WEIGHTS

Запчасти Case IH 275 (9-14) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

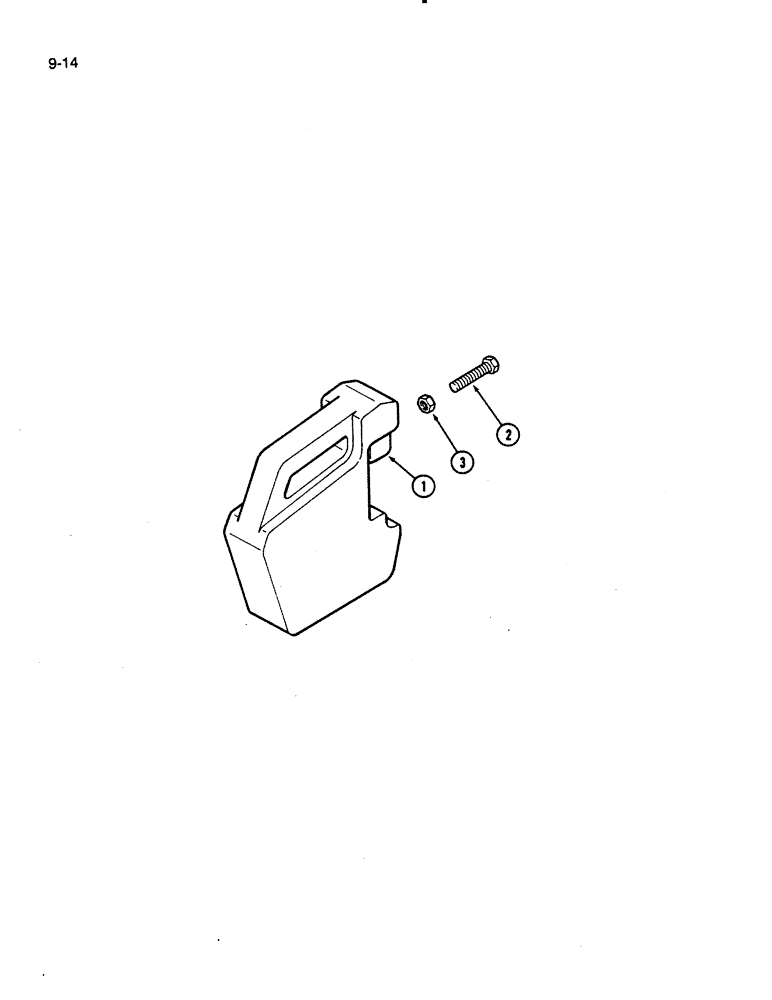

Схема запчастей Case IH 275 - (9-14) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1961808C91

WEIGHT ATTACHMENT - front (Machinery item), Includes: Ref. 1 - 3

1шт.

1

1962591C1

WEIGHT

front, Serial Range: made-order

1шт.

2

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

3

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

1шт.
